6 mm (1/4") Velocity Series Bolted Plastic Pump

V2550 Features

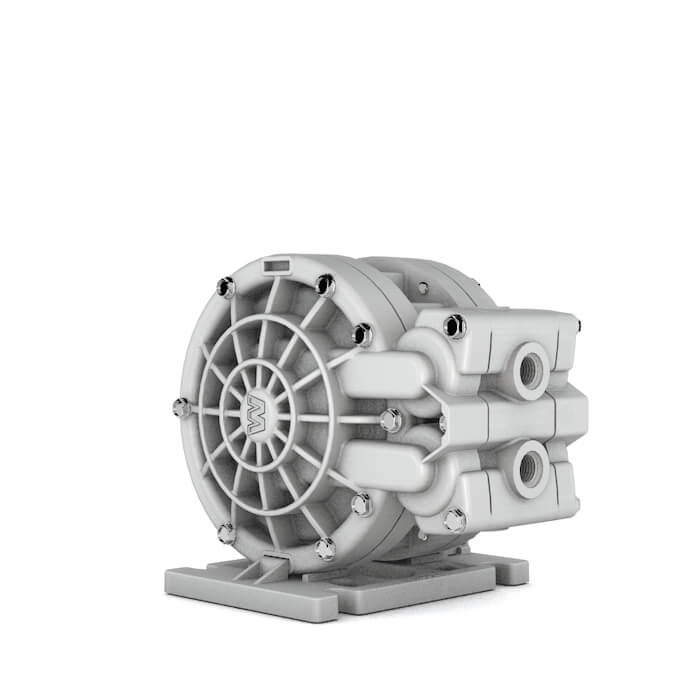

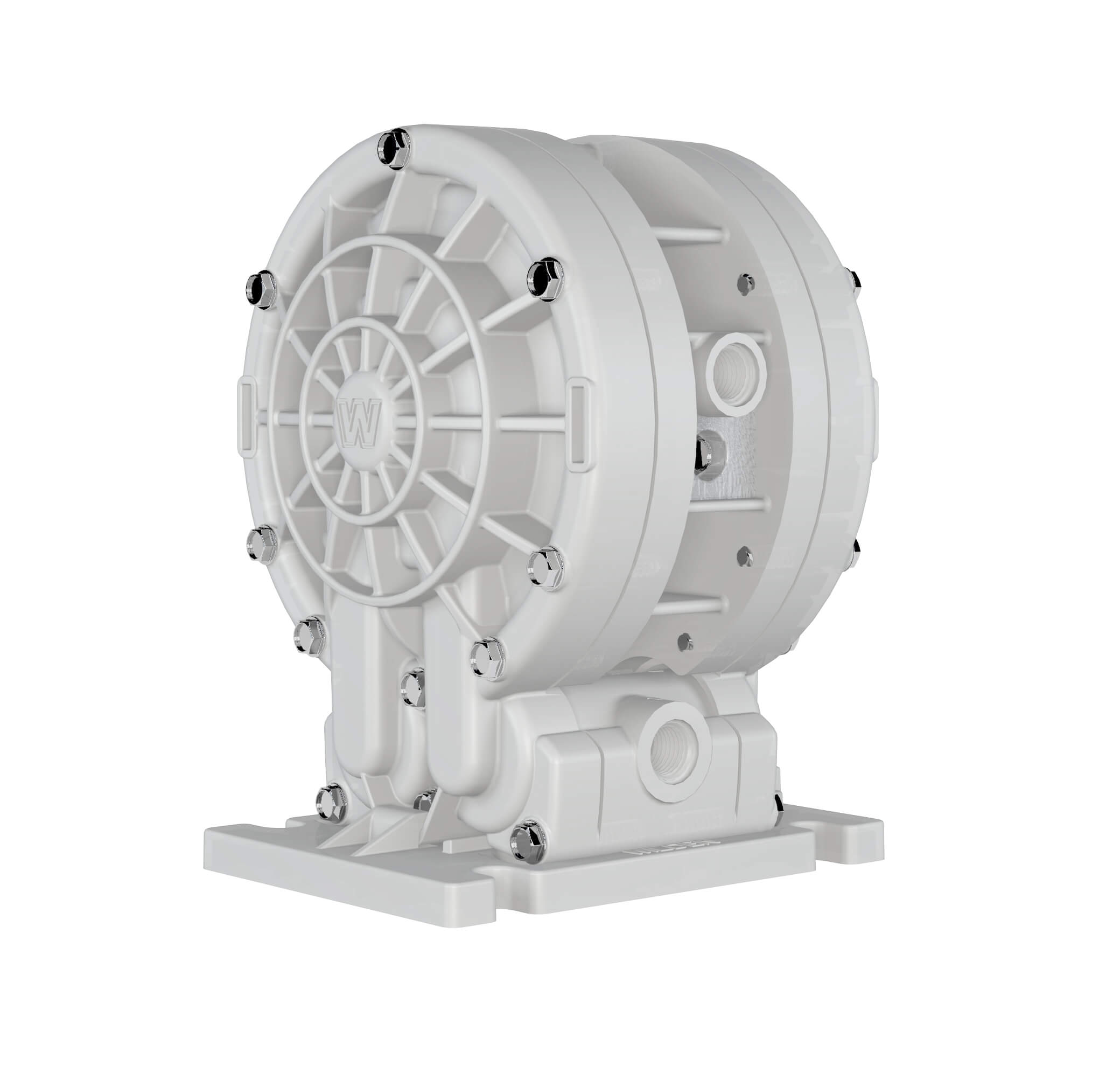

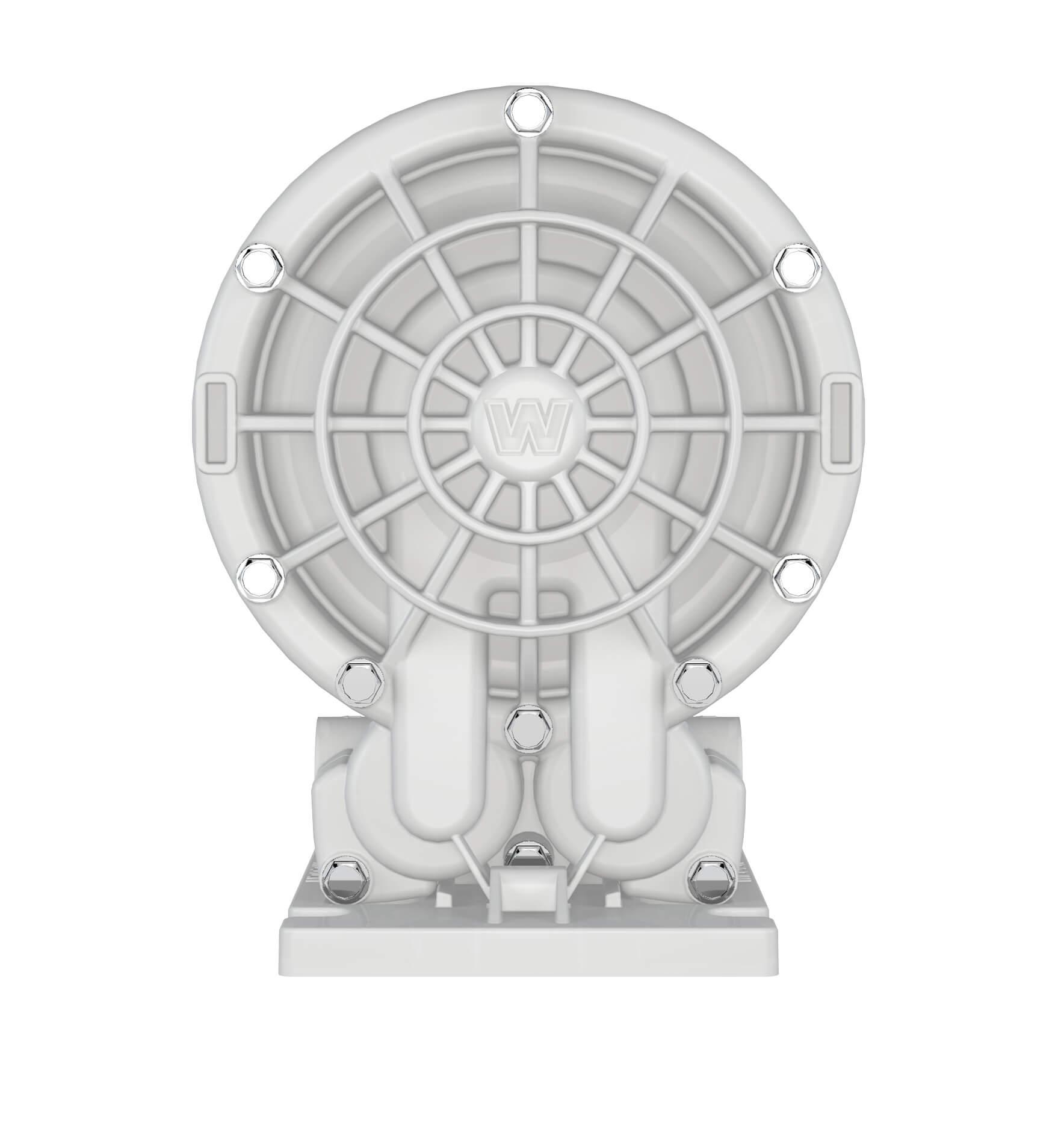

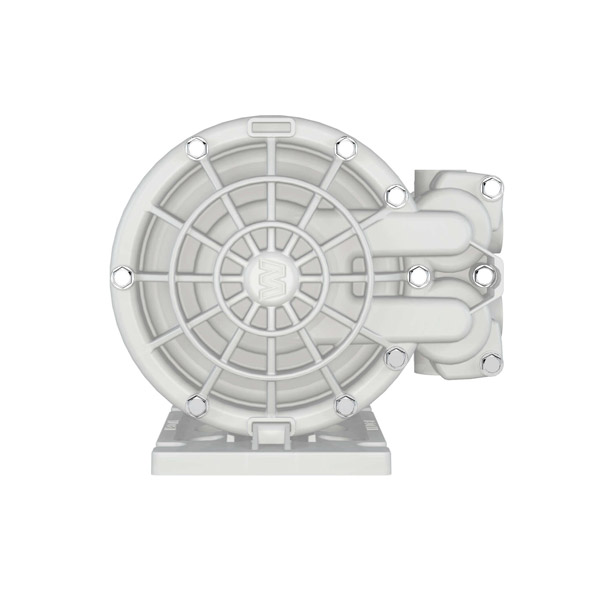

The Wilden® Velocity Series compact air-operated double-diaphragm (AODD) pump was designed with versatility. Featuring a unique detachable mounting foot, Velocity Series pumps can easily be reoriented into a vertical or horizontal position with multiple inlet and discharge port options, a critical consideration for systems and skids.

  • Numerous mounting configurations to fit any application
  • 4.3 m (14.2') dry suction lift for better priming
  • Startup pressures as low as 1.03 bar (15 psi)
  • Bore-seal design that eliminates leaks that result from torque decay
  • Interchangeable footprint with previous Wilden designs (P.025, P25)

Wilden® Velocity Series AODD Pump

Model Number: V2550
Product Name: 6 mm (1/4") Velocity Series Bolted Plastic Pump
Please provide any extra details you wish to enquire about such as installation, maintenance services etc here or when the best time to contact you is if you wish to be contacted by phone.

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the V2550 Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the V2550 Manual.

Specifications

Air Inlet
1/4" FNPT
Liquid Inlet
6 mm (1/4")
Liquid Discharge
6 mm (1/4")
Connection Type
FNPT (Threaded)
Max Pressure
6.90 bar (100.00 psi)
Max Diameter Solids
0.80 mm (1/32")
Max Suction Lift Capability
4.30m (14.20') Dry, 6.20m (20.40') Wet
Max Flow Rate
21.60 lpm (5.70 gpm)
Displacement Per Stroke
0.04 L (0.01 gal)

Wetted Housings

Material Ship Wt
Polypropylene 2.00 kg (4.00 lb)
PVDF 2.00 kg (4.00 lb)

Non-Wetted Housings

Description Material
Air Valve Polypropylene
Air Chamber PET, Aluminum (Accu-Flo™ only)

Elastomer Options

Material Temperature Limits
PTFE* 4.00°C to 104.00°C (40.00°F to 220.00°F)
Wil-Flex™ -40.00°C to 107.00°C (-40.00°F to 225.00°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
