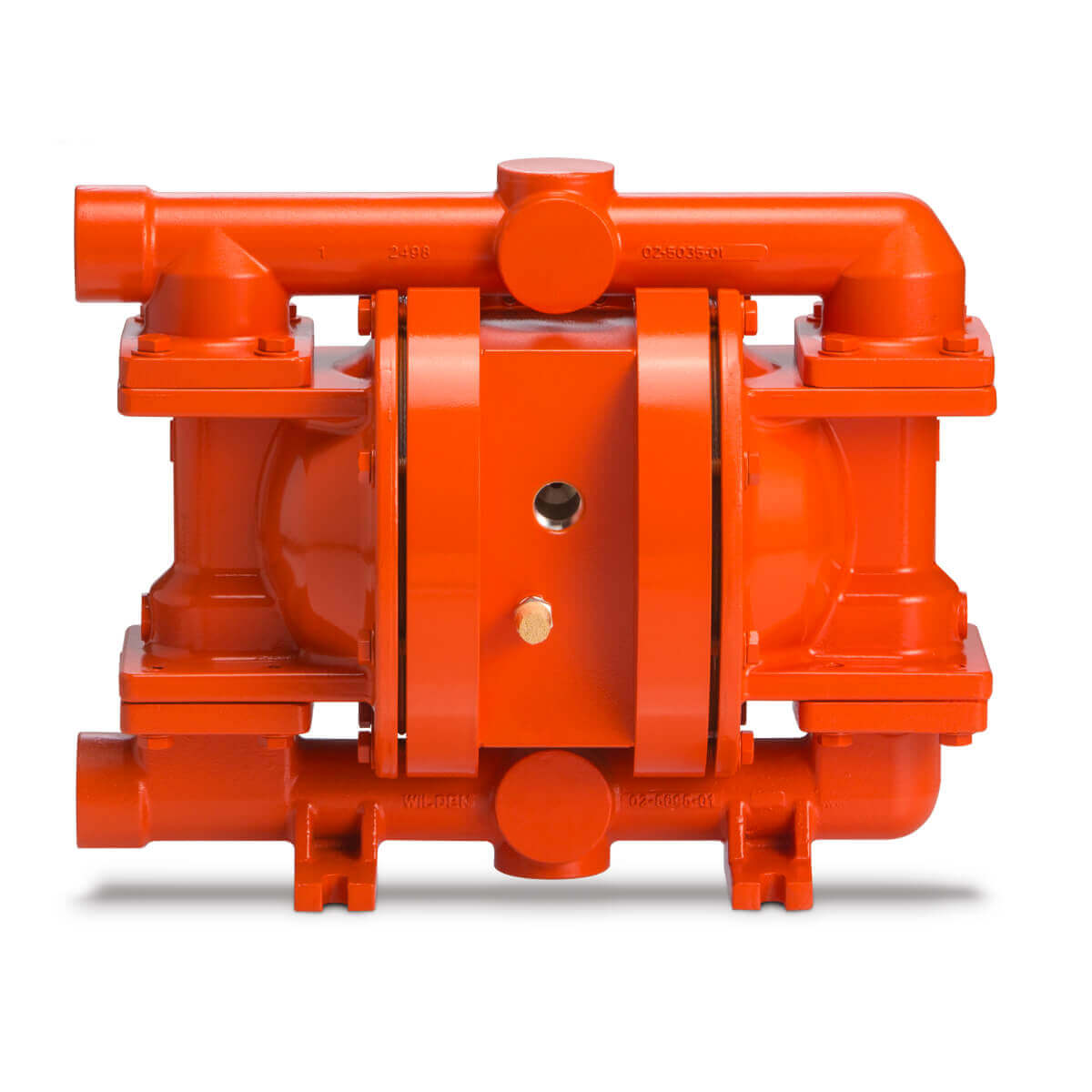

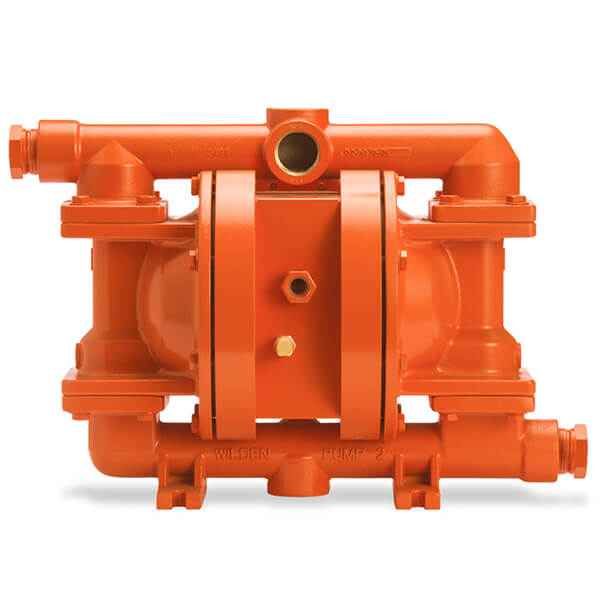

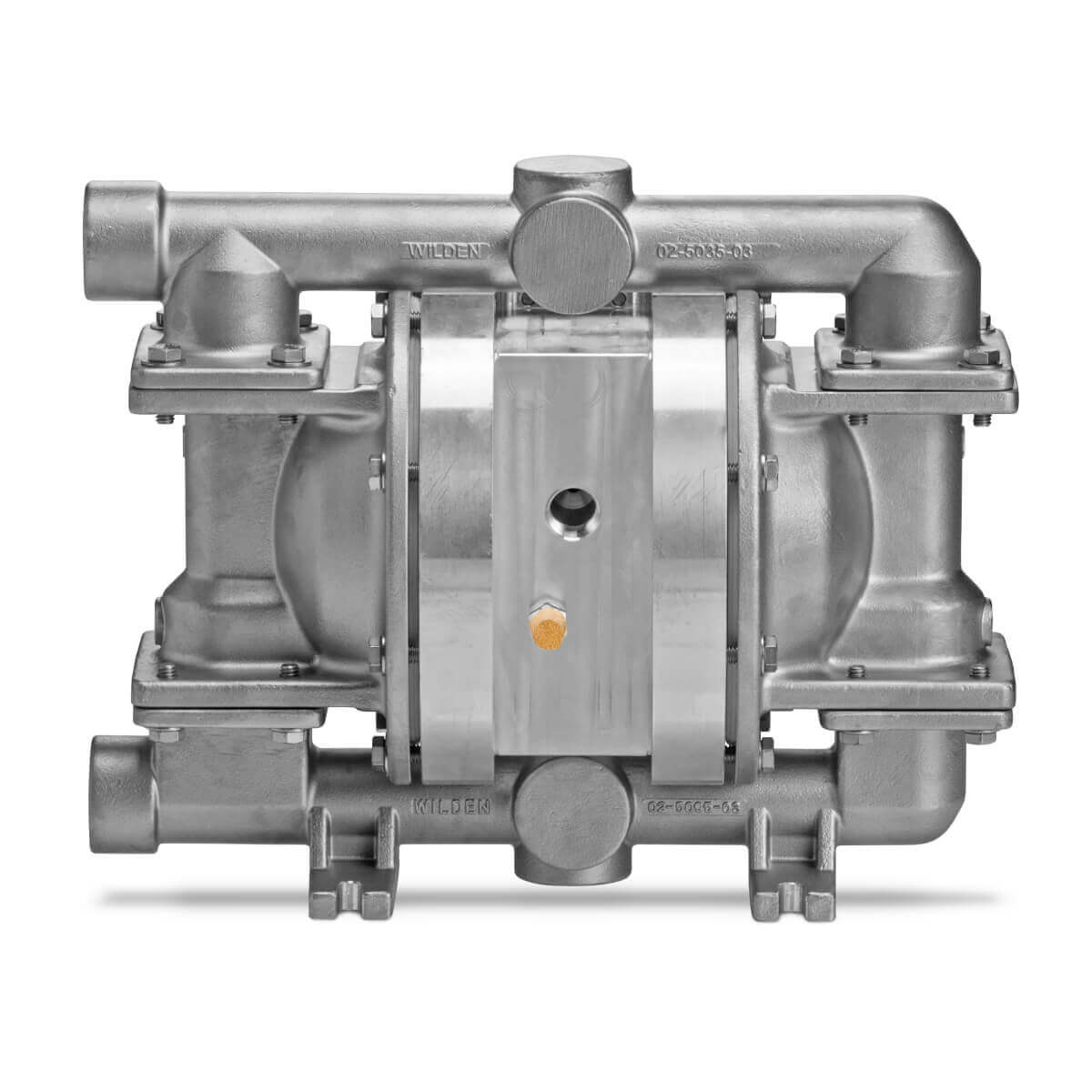

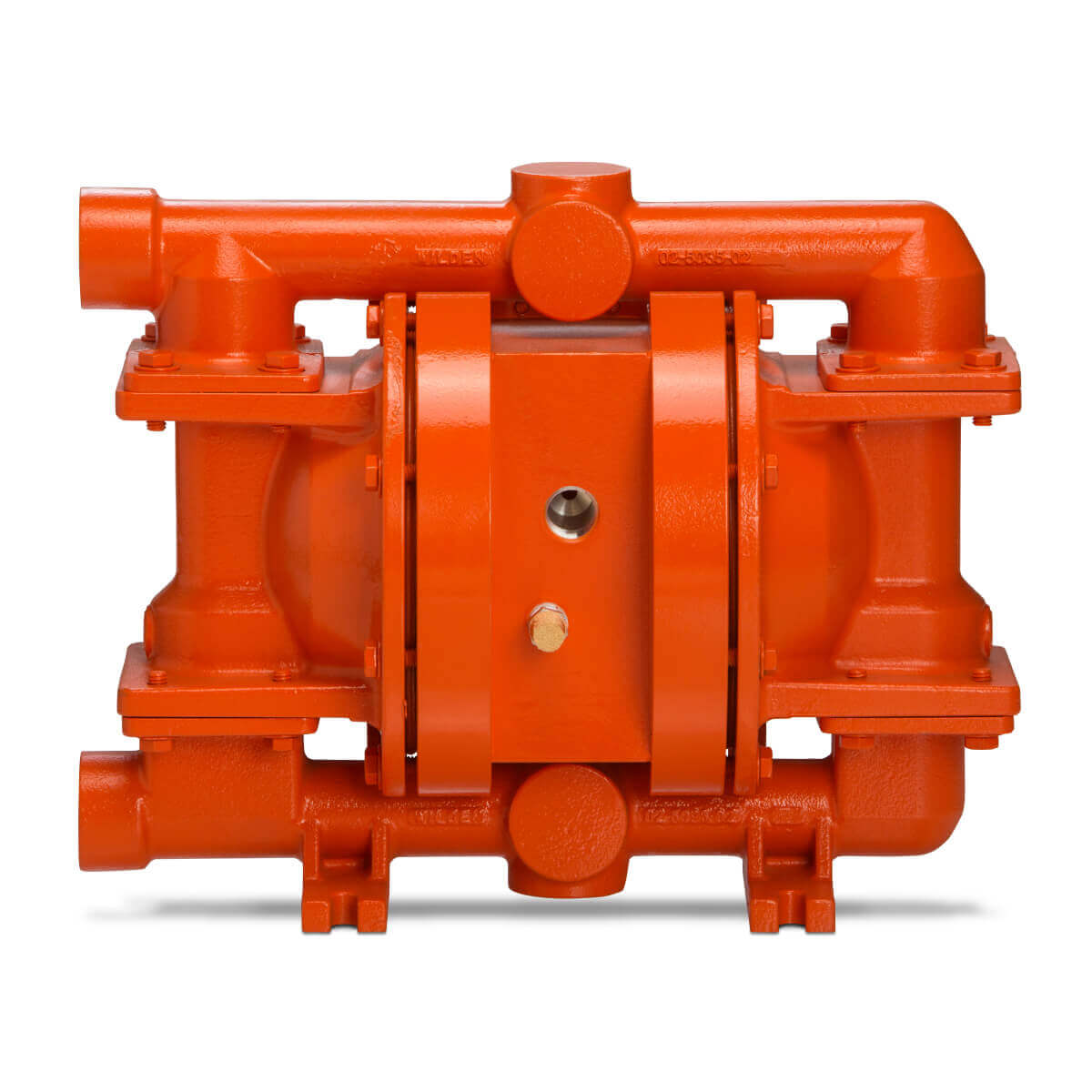

PS220/PS230 Features
The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.
- NPT or BSPT threaded inlet/discharge liquid connections (PS220)
- DIN or ANSI flanged inlet/discharge liquid connections (PS230) that don't require welding or nipple attachment
- Featuring the energy-efficient Pro-Flo® SHIFT ADS
- Greater flow - more gallons pumped per SCFM
- Reduced air consumption and kilowatt usage
- Largest chemical compatibilities
- Portable and submersible
- Large-solids passage
- High suction lift
- Ease of operation and maintenance
- Flexible internal adjustment on manifolds
- Increased on/off reliability
- Longest Mean Time Between Repair (MTBR)
Specifications
Air Inlet
1/2" FNPT
Liquid Inlet
25 mm (1")
Liquid Discharge
25 mm (1")
Connection Type
NPT/BSPT (Threaded)Max Pressure
3.40 bar
(50.00 psi)
Max Diameter Solids
6.40 mm
(1/4")
Max Suction Lift Capability
Rubber:
6.90m
(22.70') Dry,
9.00m
(29.50') Wet
Max Flow Rate
Rubber:
204.00 lpm
(54.00 gpm)
Displacement Per Stroke
Rubber:
0.3 L
(0.08 gal)
Wetted Housings
Material | Ship Wt |
---|---|
Aluminum | 6.00 kg (13.00 lb) |
Non-Wetted Housings
Description | Material |
---|---|
Center Section | Aluminum |
Air Valve | Aluminum |
Elastomer Options
Material | Temperature Limits |
---|---|
Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
Wilden UL-listed pumps have been evaluated for use at a 25°C (77°F) ambient temperature
