T15 Features

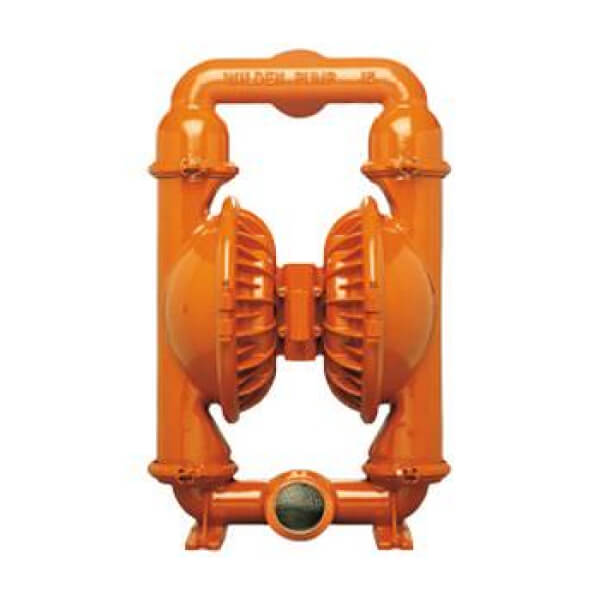

Famous for its long life and easy serviceability, the durable Wilden® Turbo-Flo™ Series is the first air distribution system (ADS) that originated in the air-operated double-diaphragm (AODD) pump industry. Though enhancements have been made, these pumps work well in certain applications where quality of the compressed air is a concern. These pumps are easy to maintain, cost effective, and economical. Portable and available in a single-point exhaust option for submersible applications, the Turbo-Flo excels in utilitarian-type applications, including the transfer of water, slurry and more.
- Simple air distribution system design, minimal moving parts
- Clamped design for lightweight and quick maintenance
- Ability to handle dirty air applications
- Single-point exhaust
Specifications
Air Inlet
3/4" FNPT
Liquid Inlet
76 mm (3")
Liquid Discharge
76 mm (3")
Connection Type
NPT/BSPT (Threaded)Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
10.00 mm
(3/8")
Max Suction Lift Capability
Rubber:
5.50m
(18.00') Dry,
9.45m
(31.00') Wet
TPE:
3.49m
(13.00') Dry,
8.53m
(28.00') Wet
PTFE:
3.49m
(13.00') Dry,
8.53m
(28.00') Wet
Max Flow Rate
Rubber:
878.00 lpm
(232.00 gpm)
TPE:
845.00 lpm
(223.00 gpm)
PTFE:
704.00 lpm
(186.00 gpm)
Displacement Per Stroke
Rubber:
5.3 L
(1.4 gal)
TPE:
5.4 L
(1.43 gal)
PTFE:
3.6 L
(0.949 gal)
Wetted Housings
Material | Ship Wt |
---|---|
Aluminum | 53.00 kg (116.00 lb) |
Cast Iron | 91.00 kg (200.00 lb) |
Non-Wetted Housings
Description | Material |
---|---|
Center Block | Aluminum, Polypropylene |
Air Valve | Brass |
Air Chamber | Aluminum |
Elastomer Options
Material | Temperature Limits |
---|---|
Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
FKM | -40.00°C to 177.00°C (-41.00°F to 350.00°F) |
Neoprene | -18.00°C to 93.00°C (0.00°F to 200.00°F) |
PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
Polyurethane | -12.00°C to 66.00°C (10.00°F to 150.00°F) |
Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
Dimensional Drawings
