T15 Features

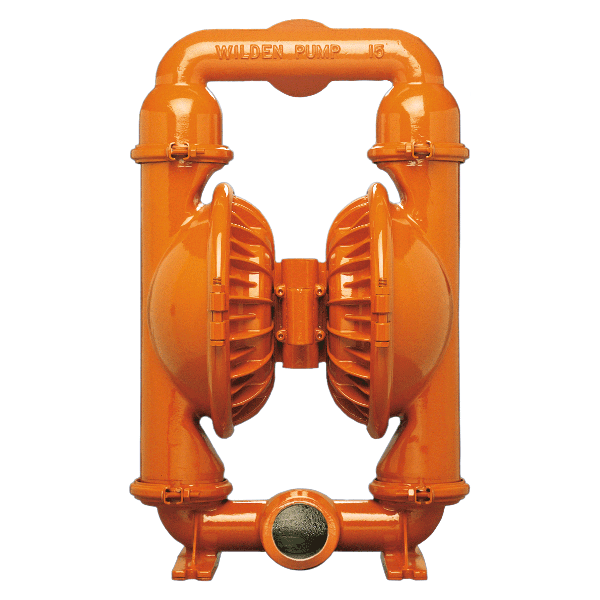

Wilden® Stallion® Series Air-Operated Double-Diaphragm (AODD) Pumps are ideally suited for rugged mining applications thanks to their unique ability to handle solid-laden mining slurries with ease. Furthering the Stallion Series pump’s ability to handle the toughest mining applications is a robust design featuring a large internal clearance and flow-through path for large-solids passage that prevents the pump from clogging. The Stallion Series is also designed with a polyurethane screen base at its inlet to provide additional durability.
Stallion Series technology incorporates an altered ball/seat check-valve assembly to allow for solids passage. Its polyurethane screen base at the inlet gives added durability.
- Clamped design with handles for lightweight portability
- Large internal clearances due to modified ball, seats, diaphragms and shafts to handle solid-laden slurries
- Polyurethane screen base to act as an initial filter to keep larger solids from damaging the pump
- Powered by Turbo-Flo™ Air Distribution System (ADS)
Dimensions
Note: Dimensions vary by material and connection. For additional information, please refer to the T15 Metal Manual.
Flow Curve –Ultra-Flex™ Fitted
Note: Additional performance curves can be found in the T15 Metal Manual.
Specifications
Air Inlet
3/4" FNPT
Liquid Inlet
76 mm (3")
Liquid Discharge
76 mm (3")
Connection Type
NPT/BSPT (Threaded)Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
25.00 mm
(1")
Max Suction Lift Capability
Rubber:
5.50m
(18.00') Dry,
9.45m
(31.00') Wet
TPE:
3.49m
(13.00') Dry,
8.53m
(28.00') Wet
PTFE:
3.49m
(13.00') Dry,
8.53m
(28.00') Wet
Max Flow Rate
Rubber:
878.00 lpm
(232.00 gpm)
TPE:
845.00 lpm
(222.99 gpm)
PTFE:
704.00 lpm
(186.00 gpm)
Displacement Per Stroke
Rubber:
5.3 L
(1.4 gal)
TPE:
5.4 L
(1.43 gal)
PTFE:
3.6 L
(0.95 gal)
Wetted Housings
| Material | Ship Wt |
|---|---|
| Aluminum | 53.00 kg (116.00 lb) |
| Cast Iron | 91.00 kg (200.00 lb) |
Non-Wetted Housings
| Description | Material |
|---|---|
| Center Block | Aluminum, Polypropylene |
| Air Valve | Brass |
| Air Chamber | Aluminum |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
| EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
| FKM | -40.00°C to 177.00°C (-41.00°F to 350.00°F) |
| Neoprene | -18.00°C to 93.00°C (0.00°F to 200.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
