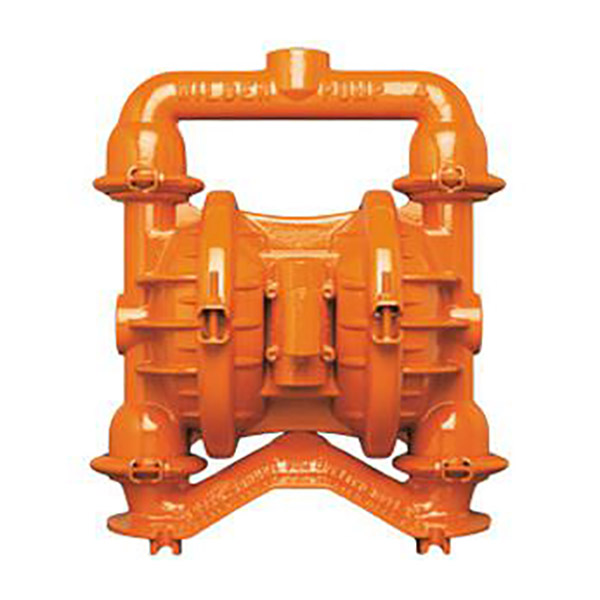

38 mm (1-1/2") Turbo-Flo™ Stallion® Series Clamped Metal Pump

T4 Features

Wilden® Stallion® Series Air-Operated Double-Diaphragm (AODD) Pumps are ideally suited for rugged mining applications thanks to their unique ability to handle solid-laden mining slurries with ease. Furthering the Stallion Series pump's ability to handle the toughest mining applications is a robust design featuring a large internal clearance and flow-through path for large-solids passage that prevents the pump from clogging. The Stallion Series is also designed with a polyurethane screen base at its inlet to provide additional durability.

Stallion Series technology incorporates an altered ball/seat check-valve assembly to allow for solids passage. Its polyurethane screen base at the inlet gives added durability.

  • Clamped design with handles for lightweight portability
  • Large internal clearances due to modified ball, seats, diaphragms and shafts to handle solid-laden slurries
  • Polyurethane screen base to act as an initial filter to keep larger solids from damaging the pump
  • Powered by Turbo-Flo™ Air Distribution System (ADS)

Enquire About this product

Model Number: T4
Product Name: 38 mm (1-1/2") Turbo-Flo™ Stallion® Series Clamped Metal Pump
Please provide any extra details you wish to enquire about such as installation, maintenance services etc here or when the best time to contact you is if you wish to be contacted by phone.
Wilden Turbo-Flo™ Stallion® Series Clamped Metal Pump 38 mm (1-1/2 inch) - T4

Dimensions

dim-t4-38mm1-5in-stallion
Note: Dimensions vary by material and connection. For additional information, please refer to the T4 Metal Manual.

Flow Curve –Ultra-Flex™ Fitted

T4-Stallion-Ultra-Flex
Note: Additional performance curves can be found in the T4 Metal Manual.

Specifications

Air Inlet
1/2" FNPT
Liquid Inlet
38 mm (1-1/2")
Liquid Discharge
38 mm (1-1/2")
Connection Type
NPT/BSPT (Threaded)
Max Pressure
8.60 bar (125.00 psi)
Max Diameter Solids
13.00 mm (1/2")
Max Suction Lift Capability
Ultra-Flex™: 4.27m (14.00') Dry, 8.23m (27.00') Wet
Max Flow Rate
Ultra-Flex™: 216.00 lpm (57.00 gpm)
Displacement Per Stroke
Ultra-Flex™: 0.64 L (0.17 gal)

Wetted Housings

Material Ship Wt
Aluminum 17.00 kg (38.00 lb)
Cast Iron 26.00 kg (57.00 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum
Air Valve Brass
Air Chamber Aluminum, Mild Steel

Elastomer Options

Material Temperature Limits
Buna-N -12.00°C to 82.00°C (10.00°F to 180.00°F)
EPDM -51.00°C to 138.00°C (-60.00°F to 280.00°F)
FKM -40.00°C to 177.00°C (-41.00°F to 350.00°F)
Neoprene -18.00°C to 93.00°C (0.00°F to 200.00°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
