PS4 Features

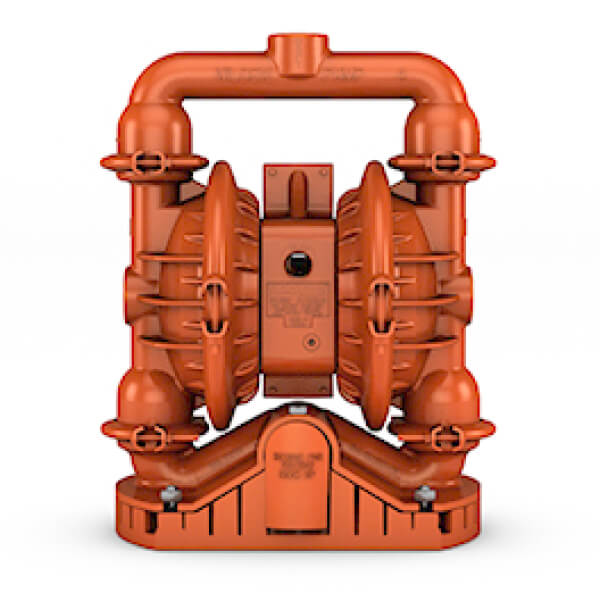

Wilden® Stallion® Series Air-Operated Double-Diaphragm (AODD) Pumps are ideally suited for rugged mining applications thanks to their unique ability to handle solid-laden mining slurries with ease. Furthering the Stallion Series pump’s ability to handle the toughest mining applications is a robust design featuring a large internal clearance and flow-through path for large-solids passage that prevents the pump from clogging. The Stallion Series is also designed with a polyurethane screen base at its inlet to provide additional durability.
Stallion Series technology incorporates an altered ball/seat check-valve assembly to allow for solids passage. Its polyurethane screen base at the inlet gives added durability.
- Clamped design with handles for lightweight portability
- Large internal clearances due to modified ball, seats, diaphragms and shafts to handle solid-laden slurries
- Polyurethane screen base to act as an initial filter to keep larger solids from damaging the pump
- Powered by Pro-Flo® SHIFT Air Distribution System (ADS)
Dimensions
Note: Dimensions vary by material and connection. For additional information, please refer to the PS4 Metal Manual.
Flow Curve – EZ-Install TPE-Fitted
Note: Additional performance curves can be found in the PS4 Metal Manual.
Specifications
Air Inlet
3/4" FNPT
Liquid Inlet
38 mm (1-1/2")
Liquid Discharge
38 mm (1-1/2")
Connection Type
NPT/BSPT (Threaded)Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
13.00 mm
(1/2")
Max Suction Lift Capability
EZ-Install TPE:
5.70m
(18.70') Dry,
9.00m
(29.50') Wet
Max Flow Rate
EZ-Install TPE:
307.00 lpm
(81.00 gpm)
Displacement Per Stroke
EZ-Install:
0.8 L
(0.22 gal)
Wetted Housings
| Material | Ship Wt |
|---|---|
| Aluminum | 22.00 kg (49.00 lb) |
| Ductile Iron | 30.00 kg (66.00 lb) |
Non-Wetted Housings
| Description | Material |
|---|---|
| Center Section | Aluminum |
| Air Valve | Aluminum |
| Air Chamber | Aluminum |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
| EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
| FKM | -40.00°C to 177.00°C (-41.00°F to 350.00°F) |
| Geolast® | -40.00°C to 82.00°C (-40.00°F to 180.00°F) |
| Neoprene | -18.00°C to 93.00°C (0.00°F to 200.00°F) |
| Polyurethane | -12.00°C to 66.00°C (10.00°F to 150.00°F) |
| Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
