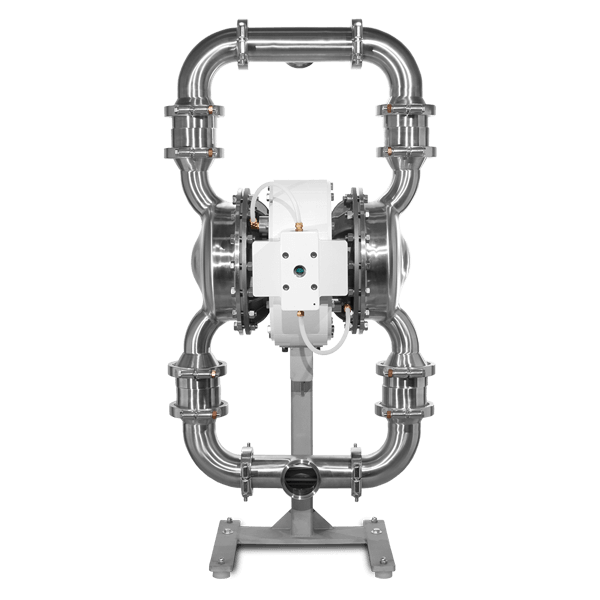

76 mm (3") High-Pressure Saniflo™ Hygienic™ Series Bolted Metal Pump

H1500 Features

High-Pressure Saniflo™ Hygienic™ Series (HS) pumps are uniquely designed for thick viscous product applications such as bean baste, peanut butter, and more. High-Pressure HS pumps meet high-cleanliness requirements and feature a free-draining flow path that enables them to be cleaned with ease. The HS flow-through liquid-path design also eliminates any potential areas where product residue can be trapped and contaminate the product. They are perfect for low-acid, pasteurized and protein-based products all the way up to biopharmaceutical sterile processes. HS pumps also meet the highest standards and requirements in the industry, including 3A, ATEX, EC 1935/2004, USP Class VI* and FDA CFR 21.177.

*USP Class VI certification is available only for Saniflo HS pumps with PTFE elastomer options

  • Featuring energy efficient Pro-Flo® SHIFT ADS
  • Free-draining flow path
  • Easy assembly with self-centering ball cages
  • Permanent or rotatable stand for cleaning
  • Multiple valve options: ball, mushroom, or flap for different application requirements
  • Shear sensitive
  • Greater flow - more gallons pumped per SCFM
Model Number: H1500
Product Name: 76 mm (3") High-Pressure Saniflo™ Hygienic™ Series Bolted Metal Pump
Please provide any extra details you wish to enquire about such as installation, maintenance services etc here or when the best time to contact you is if you wish to be contacted by phone.

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the H1500 Metal Manual.

Flow Curve – Full-Stroke Integral Piston Diaphragm (Pure-Fuse)

Note: Additional performance curves can be found in the H1500Metal Manual.

Specifications

Air Inlet
3/4" FNPT
Liquid Inlet
76 mm (3")
Liquid Discharge
76 mm (3")
Connection Type
Tri-Clamp®
DIN
SMS
Valve Options
Ball
Mushroom
Max Pressure
5.90 bar (85.00 psi)
Max Discharge Pressure
17.20 bar (250.00 psi)
Max Diameter Solids
6.40 mm (1/4")
Max Suction Lift Capability
Full-Stroke Integral Piston: 3.80m (12.50') Dry, 9.00m (29.50') Wet
Max Flow Rate
Full-Stroke Integral Piston: 291.00 lpm (77.00 gpm)
Displacement Per Stroke
Full-Stroke Integral Piston: 1.2 L (0.32 gal)

Wetted Housings

Material Ship Wt
316L Stainless Steel 115.00 kg (254.00 lb)

Non-Wetted Housings

Description Material
Center Block Powder-Coated Aluminum
Air Valve Powder-Coated Aluminum
Air Chamber Stainless Steel

Elastomer Options

Material Temperature Limits
Wil-Flex™ -40.00°C to 107.00°C (-40.00°F to 225.00°F)
