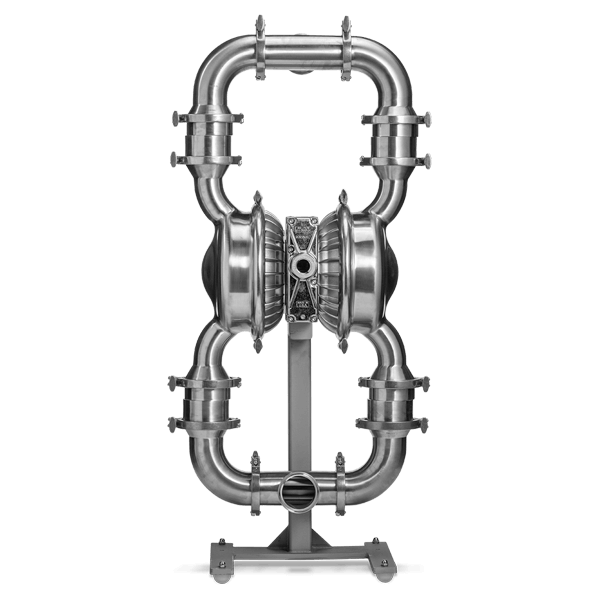

76 mm (3") Saniflo Hygienic Series Clamped Metal Pump

PS15 Features

Saniflo™ Hygienic™ Series (HS) pumps are uniquely designed for high-cleanliness requirements and feature a free-draining flow path that enables clean-in-place (CIP) capability. The HS flow-through liquid-path design also eliminates any potential areas where product residue can be trapped and contaminate the product. They are perfect for low-acid, pasteurized and protein-based products all the way up to biopharmaceutical sterile processes. HS pumps also meet the highest standards and requirements in the industry, including 3A, ATEX, EC 1935/2004, USP Class VI* and FDA CFR 21.177.

*USP Class VI certification is available only for Saniflo HS pumps with PTFE elastomer options

  • Featuring energy efficient Pro-Flo® SHIFT ADS
  • Free-draining flow path for CIP capability
  • Easy assembly with self-centering ball cages
  • Permanent or rotatable stand for cleaning
  • Multiple valve options: ball, mushroom, or flap for different application requirements
  • Shear sensitive
  • Greater flow - more gallons pumped per SCFM
Model Number: PS15
Product Name: 76 mm (3") Saniflo Hygienic Series Clamped Metal Pump
Please provide any extra details you wish to enquire about such as installation, maintenance services etc here or when the best time to contact you is if you wish to be contacted by phone.

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS15 Sanfilo HS EOM.

Flow Curve – Full-Stroke Integral Piston Diaphragm (Pure-Fuse)

Note: Additional performance curves can be found in the PS15 Saniflo HS EOM.

Specifications

Air Inlet
3/4" FNPT
Liquid Inlet
76 mm (3")
Liquid Discharge
76 mm (3")
Connection Type
Tri-Clamp®
DIN
SMS
Valve Options
Ball
Mushroom
Flap
Max Pressure
8.60 bar (125.00 psi)
Max Diameter Solids
Ball - 19.10 mm (3/4")
Mushroom - 9.50 mm (3/8")
Flap - 60.30 mm (2-3/8")
Max Suction Lift Capability
Full-Stroke Integral Piston: 3.80m (12.50') Dry, 9.00m (29.50') Wet
PTFE Integral Piston: 3.30m (10.80') Dry, 9.00m (29.50') Wet
EZ-Install TPE: 3.10m (10.20') Dry, 9.00m (29.50') Wet
Full-Stroke PTFE: 4.00m (13.10') Dry, 9.00m (29.50') Wet
Rubber: 4.40m (14.50') Dry, 9.00m (29.50') Wet
Max Flow Rate
Full-Stroke Integral Piston: 8.20 lpm (212.00 gpm)
PTFE Integral Piston: 742.00 lpm (196.00 gpm)
EZ-Install TPE: 844.00 lpm (223.00 gpm)
Full-Stroke PTFE: 749.00 lpm (198.00 gpm)
Rubber: 844.00 lpm (223.00 gpm)
Displacement Per Stroke
Full-Stroke Integral Piston: 2.5 L (0.65 gal)
PTFE Integral Piston: 1.9 L (0.51 gal)
EZ-Install TPE: 2.5 L (0.67 gal)
Full-Stroke PTFE: 2.3 L (0.62 gal)
Rubber: 2.7 L (0.72 gal)

Wetted Housings

Material Ship Wt
316L Stainless Steel 98.00 kg (215.99 lb)

Non-Wetted Housings

Description Material
Center Section Stainless Steel or Nickel-Plated Aluminum
Air Valve Stainless Steel or Nickel-Plated Aluminum
Air Chamber Stainless Steel, Nickel-Plated Aluminum

Elastomer Options

Material Temperature Limits
EPDM -51.00°C to 138.00°C (-60.00°F to 280.00°F)
FKM -40.00°C to 177.00°C (-41.00°F to 350.00°F)
PTFE* 4.00°C to 104.00°C (40.00°F to 220.00°F)
Saniflex™ -29.00°C to 104.00°C (-20.00°F to 220.00°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
