PS2 Features

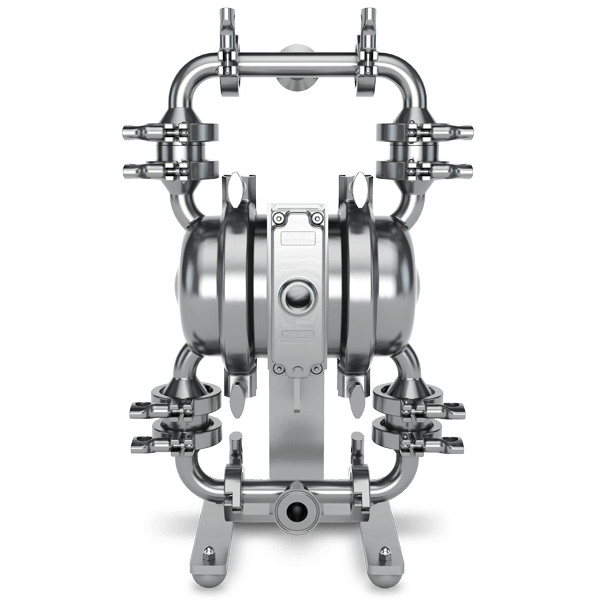

Saniflo™ Hygienic™ Series (HS) pumps are uniquely designed for high-cleanliness requirements and feature a free-draining flow path that enables clean-in-place (CIP) capability. The HS flow-through liquid-path design also eliminates any potential areas where product residue can be trapped and contaminate the product. They are perfect for low-acid, pasteurized and protein-based products all the way up to biopharmaceutical sterile processes. HS pumps also meet the highest standards and requirements in the industry, including 3A, ATEX, EC 1935/2004, USP Class VI* and FDA CFR 21.177.
*USP Class VI certification is available only for Saniflo HS pumps with PTFE elastomer options
- Featuring energy efficient Pro-Flo® SHIFT ADS
- Free-draining flow path for CIP capability
- Easy assembly with self-centering ball cages
- Permanent or rotatable stand for cleaning
- Multiple valve options: ball, mushroom, or flap for different application requirements
- Shear sensitive
- Greater flow - more gallons pumped per SCFM
Dimensions
Note: Dimensions vary by material and connection. For additional information, please refer to the Hygienic PS2 Metal Manual.
Flow Curves – Full-Stroke Integral Piston Diaphragm-Fitted
Note: Additional performance curves can be found in the Hygienic PS4 Metal Manual.
Specifications
Air Inlet
1/2" FNPT
Liquid Inlet
25 mm (1")
Liquid Discharge
25 mm (1")
Connection Type
Tri-Clamp®DIN
SMS
Valve Options
Ball Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
6.40 mm
(1/4")
Max Suction Lift Capability
Full-Stroke Integral Piston:
2.40m
(8.00') Dry,
7.90m
(26.00') Wet
Full-Stroke TPE:
1.20m
(4.00') Dry,
7.90m
(26.00') Wet
Full-Stroke PTFE:
1.50m
(10.00') Dry,
7.60m
(25.00') Wet
Rubber:
3.90m
(13.00') Dry,
7.60m
(24.99') Wet
Max Flow Rate
Full-Stroke Integral Piston:
117.00 lpm
(31.00 gpm)
Full-Stroke TPE:
109.00 lpm
(29.00 gpm)
Full-Stroke PTFE:
117.00 lpm
(31.00 gpm)
Rubber:
121.00 lpm
(32.00 gpm)
Displacement Per Stroke
Full-Stroke Integral Piston:
0.2 L
(0.07 gal)
Full-Stroke TPE:
0.2 L
(0.07 gal)
Full-Stroke PTFE:
0.22 L
(0.06 gal)
Rubber:
0.2 L
(0.07 gal)
Wetted Housings
| Material | Ship Wt |
|---|---|
| 315L Stainless Steel | 40.00 kg (80.00 lb) |
Non-Wetted Housings
| Description | Material |
|---|---|
| Center Section | Nickel-Plated Aluminum |
| Air Valve | Nickel-Plated Aluminum |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
| FKM | -40.00°C to 177.00°C (-41.00°F to 350.00°F) |
| PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
| Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
