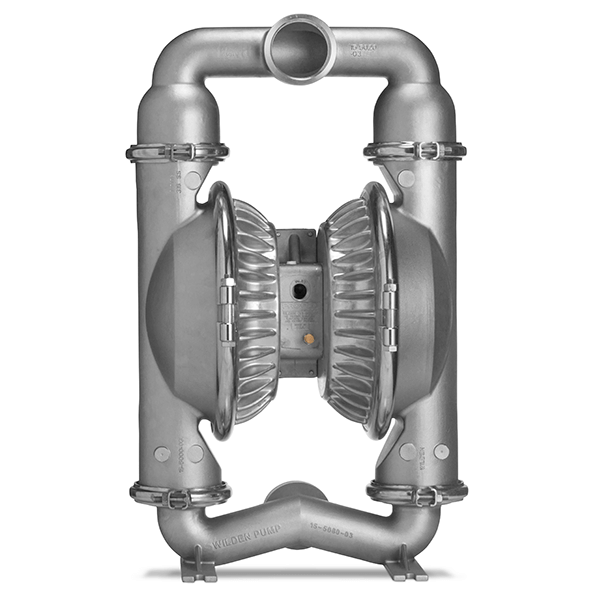

76 mm (3") Pro-Flo®SHIFT Saniflo™ FDA Series Clamped Metal Pump

PS15 Features

Saniflo™ FDA Series pumps are designed for standard food applications that don’t require the Hygienic™ Series (HS) design or clean-in-place (CIP) capability. They are well suited for sanitary applications moving high-acid, high-sugar and high-fat media. With simple installation and robust design, FDA pumps comply with FDA, CE, EC 1935/2004 and ATEX requirements.

  • Featuring the energy-efficient Pro-Flo® SHIFT ADS
  • Greater flow - more gallons pumped per SCFM
  • Tri-Clamp® connections with wingnut clamped design
  • Quick breakdown/reassembly for cleaning
  • Shear sensitive
  • Robust durability
  • Straight flow-through design

Enquire About this product

Model Number: PS15
Product Name: 76 mm (3") Pro-Flo®SHIFT Saniflo™ FDA Series Clamped Metal Pump
Please provide any extra details you wish to enquire about such as installation, maintenance services etc here or when the best time to contact you is if you wish to be contacted by phone.
Wilden Pro-Flo® SHIFT Saniflo™ FDA Series Stainless Steel Pump 76 mm (3 inch) - PS15

Dimensions

Dim-PS15-73mm3in-PFSS-FDA-CMP
Note: Dimensions vary by material and connection. For additional information, please refer to the PS15 Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Flo-PS15-73mm3in-PFSS-FDA-CMP
Note: Additional performance curves can be found in the PS15 Metal Manual.

Specifications

Air Inlet
3/4" FNPT
Liquid Inlet
76 mm (3")
Liquid Discharge
76 mm (3")
Connection Type
Tri-Clamp®
Max Pressure
8.60 bar (125.00 psi)
Max Diameter Solids
9.50 mm (3/8")
Max Suction Lift Capability
Rubber: 6.60m (21.60') Dry, 8.60m (28.40') Wet
EZ-Install TPE: 6.30m (20.70') Dry, 8.60m (28.40') Wet
Full-Stroke PTFE: 6.20m (20.20') Dry, 8.60m (28.39') Wet
Max Flow Rate
Rubber: 927.00 lpm (245.00 gpm)
EZ-Install TPE: 901.00 lpm (238.00 gpm)
Full-Stroke PTFE: 916.00 lpm (242.00 gpm)
Displacement Per Stroke
Rubber: 5.2 L (1.38 gal)
EZ-Install TPE: 5.3 L (1.41 gal)
Full-Stroke PTFE: 5.1 L (1.339 gal)

Wetted Housings

Material Ship Wt
Stainless Steel 105.00 kg (229.99 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum, Nickel-Plated, Stainless Steel, Polypropylene
Air Valve Aluminum, Nickel-Plated, Stainless Steel, Polypropylene
Air Chamber Aluminum, Nickel-Plated, Stainless Steel

Elastomer Options

Material Temperature Limits
PTFE* 4.00°C to 104.00°C (40.00°F to 220.00°F)
Saniflex™ -29.00°C to 104.00°C (-20.00°F to 220.00°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
