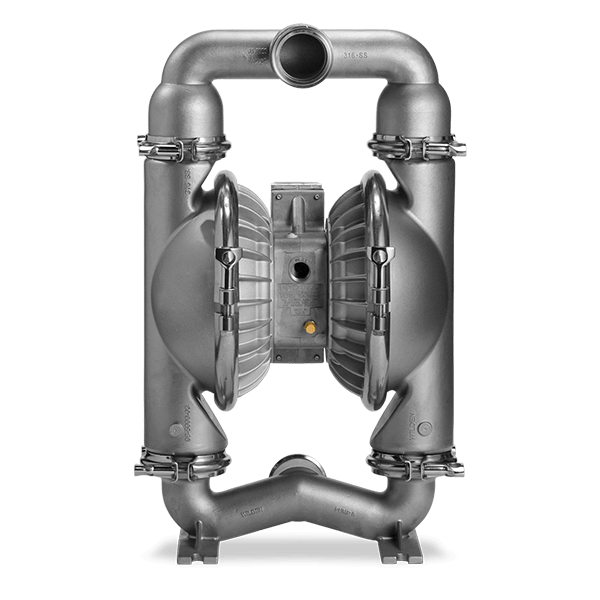

PS8 Features
Saniflo™ FDA Series pumps are designed for standard food applications that don’t require the Hygienic™ Series (HS) design or clean-in-place (CIP) capability. They are well suited for sanitary applications moving high-acid, high-sugar and high-fat media. With simple installation and robust design, FDA pumps comply with FDA, CE, EC 1935/2004 and ATEX requirements.
- Featuring the energy-efficient Pro-Flo® SHIFT ADS
- Greater flow - more gallons pumped per SCFM
- Tri-Clamp® connections with wingnut clamped design
- Quick breakdown/reassembly for cleaning
- Shear sensitive
- Robust durability
- Straight flow-through design
Specifications
Air Inlet
3/4" FNPT
Liquid Inlet
51 mm (2")
Liquid Discharge
51 mm (2")
Connection Type
Tri-Clamp®Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
6.40 mm
(1/4")
Max Suction Lift Capability
Rubber:
7.20m
(23.80') Dry,
9.00m
(29.50') Wet
EZ-Install TPE:
6.90m
(22.70') Dry,
9.00m
(29.50') Wet
Full-Stroke PTFE:
6.30m
(20.70') Dry,
8.60m
(28.40') Wet
Max Flow Rate
Rubber:
700.00 lpm
(185.00 gpm)
EZ-Install TPE:
719.00 lpm
(190.00 gpm)
Full-Stroke PTFE:
723.00 lpm
(191.00 gpm)
Displacement Per Stroke
Rubber:
2.6 L
(0.69 gal)
EZ-Install TPE:
2.6 L
(0.69 gal)
Full-Stroke PTFE:
2.4 L
(0.64 gal)
Wetted Housings
Material | Ship Wt |
---|---|
Stainless Steel | 53.00 kg (117.00 lb) |
Non-Wetted Housings
Description | Material |
---|---|
Center Section | Aluminum, Nickel-Plated, Stainless Steel, Polypropylene |
Air Valve | Aluminum, Nickel-Plated, Stainless Steel, Polypropylene |
Air Chamber | Aluminum, Nickel-Plated, Stainless Steel |
Elastomer Options
Material | Temperature Limits |
---|---|
Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
