P8 Features

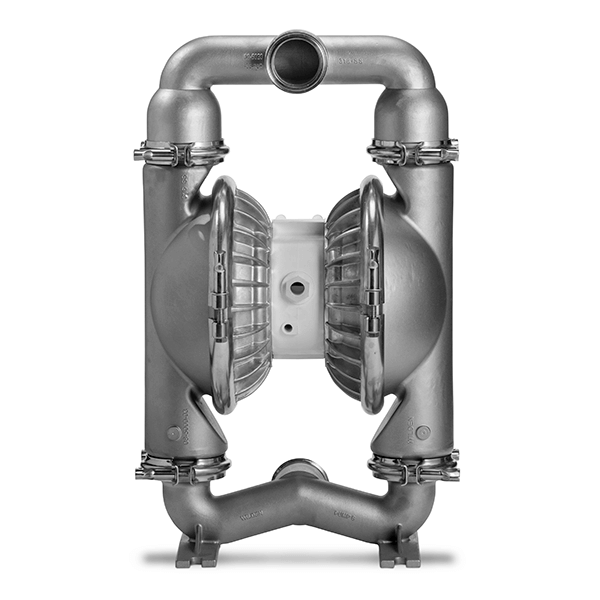

Saniflo™ FDA Series pumps are designed for standard food applications that don’t require the Hygienic™ Series (HS) design or clean-in-place (CIP) capability. They are well suited for sanitary applications moving high-acid, high-sugar and high-fat media. With simple installation and robust design, FDA pumps comply with FDA, CE, EC 1935/2004 and ATEX requirements.
- Tri-Clamp® connections with wingnut clamped design
- Quick breakdown/reassembly for cleaning
- Shear sensitive
- Robust durability
- Straight flow-through design
Dimensions
Note: Dimensions vary by material and connection. For additional information, please refer to the P8 Metal Manual.
Flow Curves – TPE-Fitted
Note: Additional performance curves can be found in the P8 Metal Manual.
Specifications
Air Inlet
1/2" FNPT
Liquid Inlet
64 mm (2-1/2")
Liquid Discharge
64 mm (2-1/2")
Connection Type
Tri-Clamp®Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
6.40 mm
(1/4")
Max Suction Lift Capability
Rubber:
6.90m
(22.70') Dry,
8.60m
(28.40') Wet
TPE:
6.70m
(22.10') Dry,
8.60m
(28.40') Wet
Full-Stroke PTFE:
6.70m
(22.10') Dry,
9.00m
(29.50') Wet
Reduced-Stroke PTFE:
4.60m
(15.00') Dry,
9.50m
(31.00') Wet
Ultra-Flex™:
4.90m
(16.00') Dry,
8.80m
(29.00') Wet
Max Flow Rate
Rubber:
623.00 lpm
(165.00 gpm)
TPE:
360.00 lpm
(166.00 gpm)
Full-Stroke PTFE:
618.00 lpm
(163.00 gpm)
Reduced-Stroke PTFE:
496.00 lpm
(131.00 gpm)
Ultra-Flex™:
526.00 lpm
(139.00 gpm)
Displacement Per Stroke
Rubber:
2.6 L
(0.7 gal)
TPE:
2.8 L
(0.75 gal)
Full-Stroke PTFE:
2.6 L
(0.7 gal)
Reduced-Stroke PTFE:
1.67 L
(0.44 gal)
Ultra-Flex™:
2.12 L
(0.56 gal)
Wetted Housings
| Material | Ship Wt |
|---|---|
| Stainless Steel | 51.00 kg (112.00 lb) |
Non-Wetted Housings
| Description | Material |
|---|---|
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Air Chamber | Aluminum, PTFE-Coated, Nickel-Plated, Stainless Steel, Halar-Coated Aluminum |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
| EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
| PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
| Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
| Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
