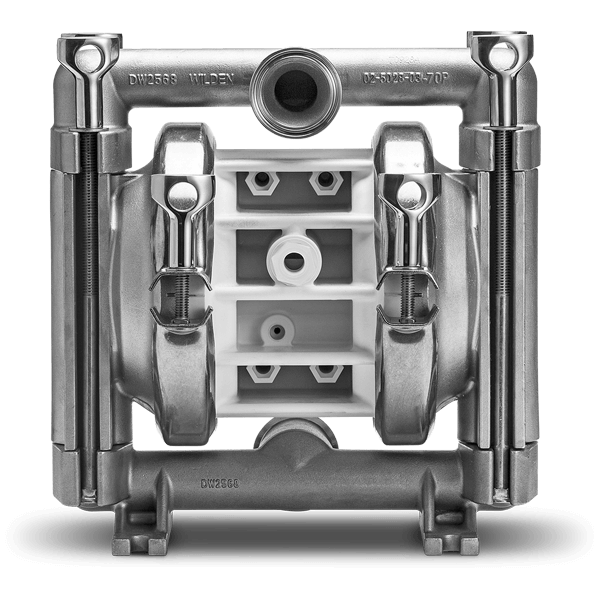

P2 Features
Saniflo™ FDA Series pumps are designed for standard food applications that don’t require the Hygienic™ Series (HS) design or clean-in-place (CIP) capability. They are well suited for sanitary applications moving high-acid, high-sugar and high-fat media. With simple installation and robust design, FDA pumps comply with FDA, CE, EC 1935/2004 and ATEX requirements.
- Tri-Clamp® connections with wingnut clamped design
- Quick breakdown/reassembly for cleaning
- Shear sensitive
- Robust durability
- Straight flow-through design
Specifications
Air Inlet
1/4" FNPT
Liquid Inlet
38 mm (1-1/2")
Liquid Discharge
38 mm (1-1/2")
Connection Type
Tri-Clamp®Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
3.20 mm
(1/8")
Max Suction Lift Capability
Rubber:
5.20m
(17.00') Dry,
9.00m
(29.50') Wet
TPE:
7.60m
(25.00') Dry,
9.00m
(29.50') Wet
Full-Stroke PTFE:
4.70m
(15.30') Dry,
9.00m
(29.50') Wet
Reduced-Stroke PTFE:
2.80m
(9.10') Dry,
9.00m
(29.50') Wet
Max Flow Rate
Rubber:
172.00 lpm
(45.50 gpm)
TPE:
171.00 lpm
(45.20 gpm)
Full-Stroke PTFE:
167.00 lpm
(44.10 gpm)
Reduced-Stroke PTFE:
155.00 lpm
(41.00 gpm)
Displacement Per Stroke
Rubber:
0.3 L
(0.08 gal)
TPE:
0.3 L
(0.08 gal)
Full-Stroke PTFE:
0.3 L
(0.08 gal)
Reduced-Stroke PTFE:
0.3 L
(0.08 gal)
Wetted Housings
Material | Ship Wt |
---|---|
Stainless Steel | 17.00 kg (37.00 lb) |
Non-Wetted Housings
Description | Material |
---|---|
Center Section | Polypropylene, Acetal |
Air Valve | Polypropylene, Acetal |
Elastomer Options
Material | Temperature Limits |
---|---|
EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
