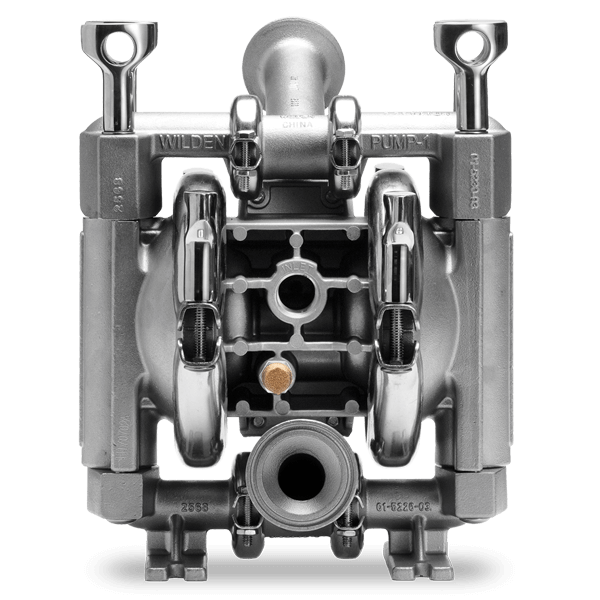

13 mm (1/2") Pro-Flo® SHIFT Saniflo™ FDA Series Clamped Metal Pump

PS1 Features

Saniflo™ FDA Series pumps are designed for standard food applications that don’t require the Hygienic™ Series (HS) design or clean-in-place (CIP) capability. They are well suited for sanitary applications moving high-acid, high-sugar and high-fat media. With simple installation and robust design, FDA pumps comply with FDA, CE, EC 1935/2004 and ATEX requirements.

  • Featuring energy efficient Pro-Flo® SHIFT ADS
  • Greater flow - more gallons pumped per SCFM
  • Tri-Clamp® connections with wingnut clamped design
  • Quick breakdown/reassembly for cleaning
  • Shear sensitive
  • Robust durability
  • Straight flow-through design
Model Number: PS1
Product Name: 13 mm (1/2") Pro-Flo® SHIFT Saniflo™ FDA Series Clamped Metal Pump
Please provide any extra details you wish to enquire about such as installation, maintenance services etc here or when the best time to contact you is if you wish to be contacted by phone.

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the PS1 Metal Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the PS1 Metal Manual.

Specifications

Air Inlet
1/2" FNPT
Liquid Inlet
25 mm (1")
Liquid Discharge
25 mm (1")
Connection Type
Tri-Clamp®
Max Pressure
8.60 bar (125.00 psi)
Max Diameter Solids
1.60 mm (1/16")
Max Suction Lift Capability
Rubber: 5.90m (19.30') Dry, 9.80m (32.30') Wet
TPE: 5.70m (18.70') Dry, 8.30m (27.20') Wet
PTFE: 4.30m (14.20') Dry, 9.70m (31.70') Wet
Max Flow Rate
Rubber: 60.20 lpm (15.90 gpm)
TPE: 60.20 lpm (15.90 gpm)
PTFE: 59.80 lpm (15.80 gpm)
Displacement Per Stroke
Rubber: 0.1 L (0.026 gal)
TPE: 0.1 L (0.026 gal)
PTFE: 0.1 L (0.026 gal)

Wetted Housings

Material Ship Wt
Stainless Steel 9.00 kg (20.00 lb)

Non-Wetted Housings

Description Material
Center Block Aluminum
Air Valve Aluminum

Elastomer Options

Material Temperature Limits
EPDM -51.00°C to 138.00°C (-60.00°F to 280.00°F)
PTFE* 4.00°C to 104.00°C (40.00°F to 220.00°F)
Saniflex™ -29.00°C to 104.00°C (-20.00°F to 220.00°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
