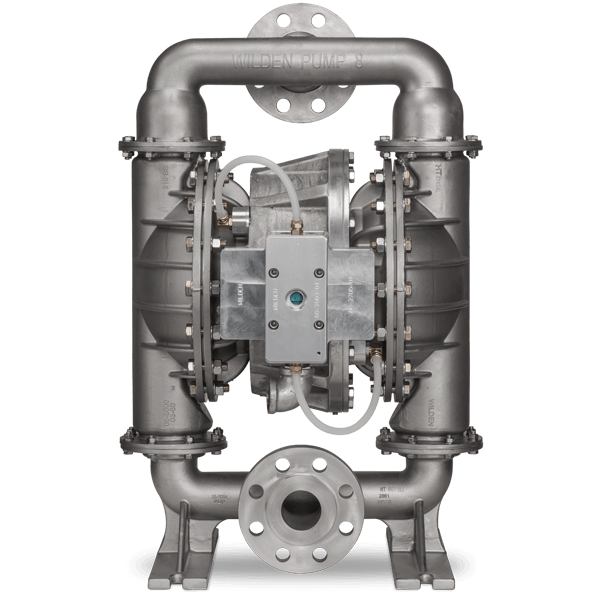

51 mm (2") High-Pressure Bolted Metal Pump

H800 Features

Wilden® High-Pressure Series Air-Operated Double-Diaphragm (AODD) Metal Pumps are equipped with a specialty air distribution system (ADS) that utilizes a double-acting power piston and Duplex technology to intensify fluid discharge pressure. Wilden high-pressure pumps reliably deliver the pressure performance of up to 20.7 bar (300 psig), making them perfect for a wide variety of high-pressure duties, including filtration, chemical sludge transfer and other viscous, solid-laden slurries.

  • Simplex and Duplex technology available (depending on size)
  • Industry's only 3" high-pressure pump
  • Builds up to 300 psi discharge pressure
  • Build-in internal pressure amplifier with limited external piping for more robust design
Model Number: H800
Product Name: 51 mm (2") High-Pressure Bolted Metal Pump
Please provide any extra details you wish to enquire about such as installation, maintenance services etc here or when the best time to contact you is if you wish to be contacted by phone.

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the H800 Metal Manual.

Flow Curve – TPE/Full-Stroke PTFE

Note: Additional performance curves can be found in the H800 Metal Manual.

Specifications

Air Inlet
3/4" FNPT
Liquid Inlet
51 mm (2")
Liquid Discharge
51 mm (2")
Connection Type
DIN/ANSI (Flanged)
Max Pressure
5.90 bar (84.99 psi)
Max Discharge Pressure
17.20 bar (250.00 psi)
Max Diameter Solids
13.00 mm (1/2")
Max Suction Lift Capability
TPE: 3.70m (12.00') Dry, 9.00m (29.50') Wet
Max Flow Rate
TPE: 360.00 lpm (95.00 gpm)
Displacement Per Stroke
TPE: 1.67 L (0.44 gal)

Wetted Housings

Material Ship Wt
Stainless Steel 128.00 kg (283.00 lb)
Ductile Iron 128.00 kg (283.00 lb)
Alloy C 134.00 kg (295.00 lb)

Non-Wetted Housings

Description Material
Center Block Aluminum
Air Valve Aluminum
Air Chamber Stainless Steel, Ductile Iron

Elastomer Options

Material Temperature Limits
PTFE* 4.00°C to 104.00°C (40.00°F to 220.00°F)
Wil-Flex™ -40.00°C to 107.00°C (-40.00°F to 225.00°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
