38mm (1-1/2") CSA-Certified Bolted Metal Pump

GPS420/GPS430 Features

Wilden® GPS Series pumps, equipped with the Pro-Flo® SHIFT Air Distribution System (ADS) and available in bolted metal construction, are certified by the Canadian Standards Association (CSA) to be powered by natural gas and maintain a safe, reliable operation. They are perfect for oil and gas operations where compressed air is not readily accessible but where natural gas is plentiful.

  • NPT or BSPT threaded inlet/discharge liquid connections (GPS420)
  • DIN or ANSI flanged inlet/discharge liquid connections (GPS430) that don't require welding or nipple attachment
  • GPS Series pumps utilize the Wilden Pro-Flo SHIFT ADS
    • Helps plants save valuable natural gas
    • Pro-Flo SHIFT uses 60% less natural gas, without hindering performance
    • Greater flow - more gallons pumped per SCFM

Enquire About this product

Model Number: GPS420/GPS430
Product Name: 38mm (1-1/2") CSA-Certified Bolted Metal Pump
Please provide any extra details you wish to enquire about such as installation, maintenance services etc here or when the best time to contact you is if you wish to be contacted by phone.
Wilden Pro-Flo® SHIFT Series Bolted Threaded Aluminum Pump 38 mm (1-1/2 inch) - PS420

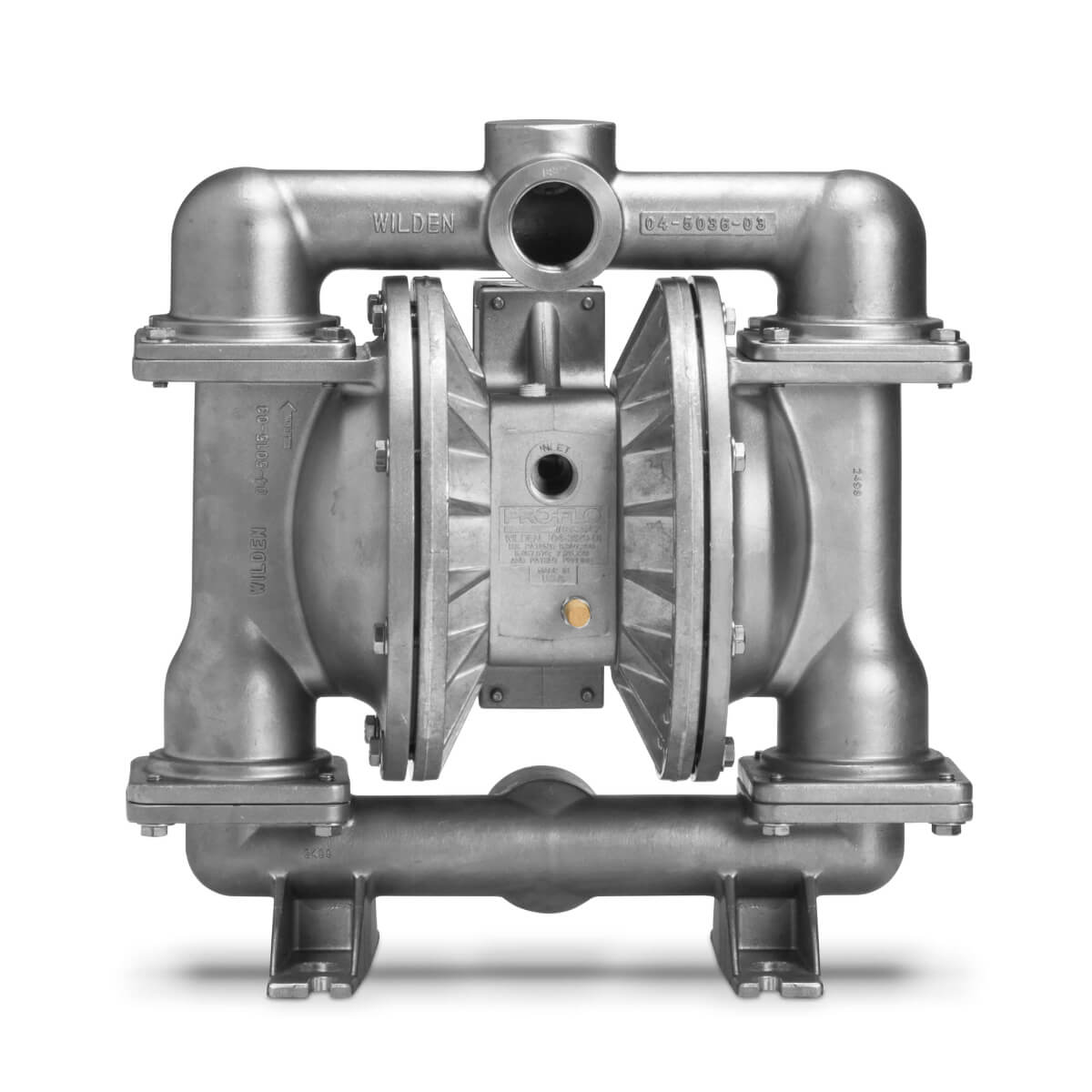

Wilden Pro-Flo® SHIFT Series Bolted Threaded Stainless Steel Pump 38 mm (1-1/2 inch) - PS420

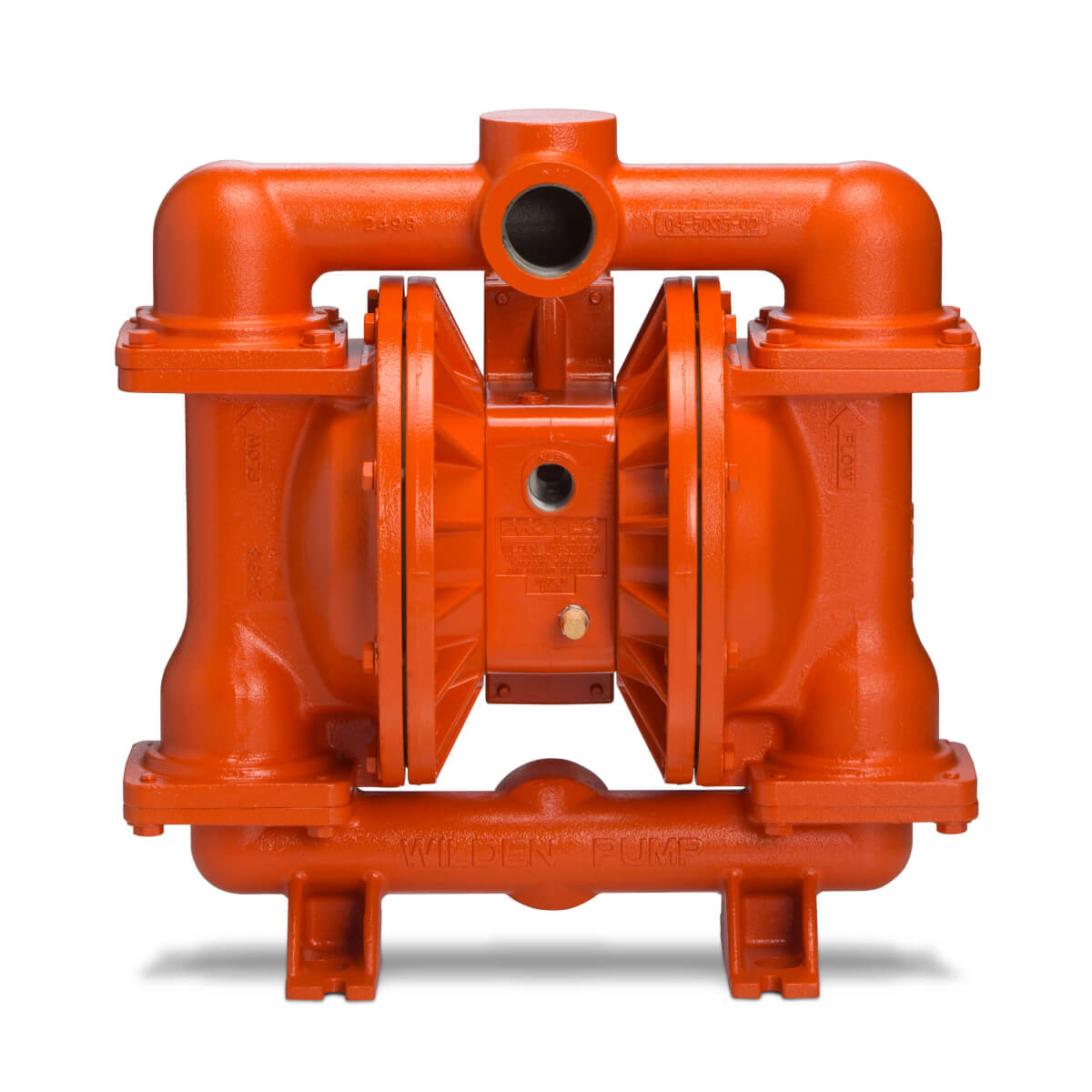

Wilden Pro-Flo® SHIFT Series Bolted Threaded Ductile Iron Pump 38 mm (1-1/2 inch) - PS420

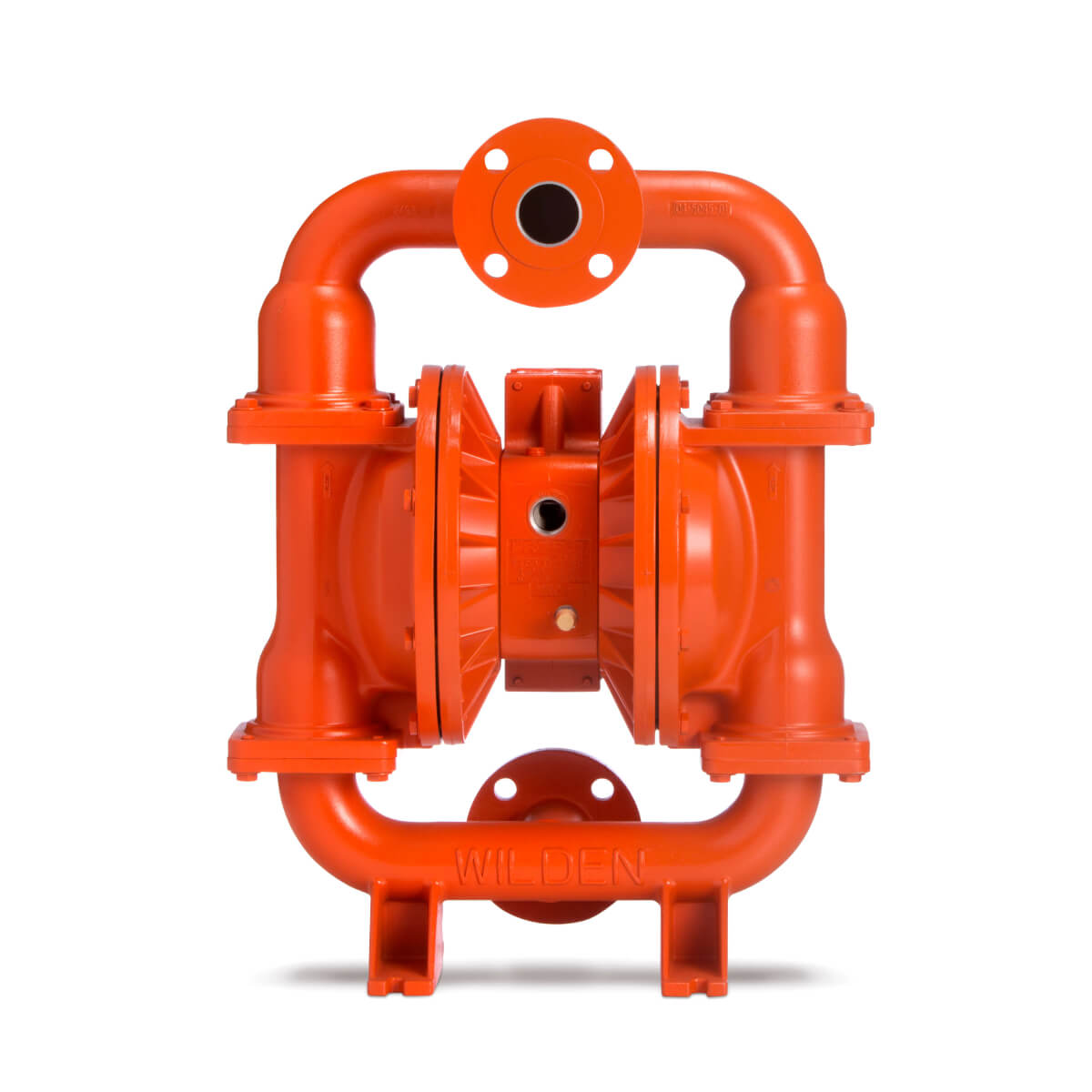

Wilden Pro-Flo® SHIFT Series Bolted Flanged Aluminum Pump 38 mm (1-1/2 inch) - PS430

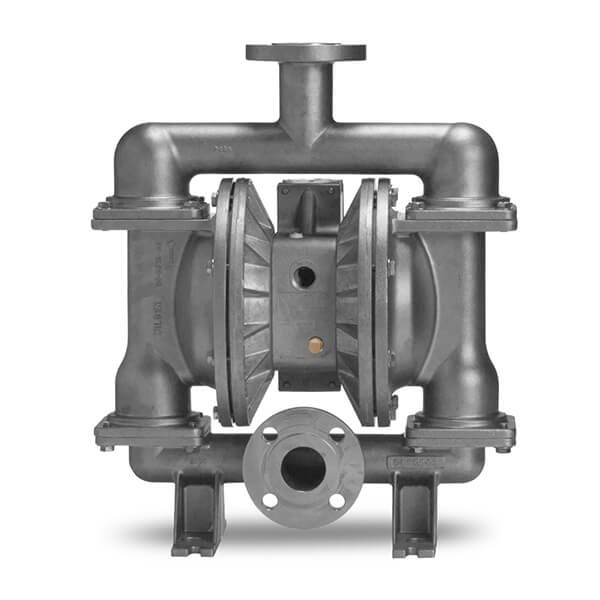

Wilden Pro-Flo® SHIFT Series Bolted Flanged Stainless Steel Pump 38 mm (1-1/2 inch) - PS430

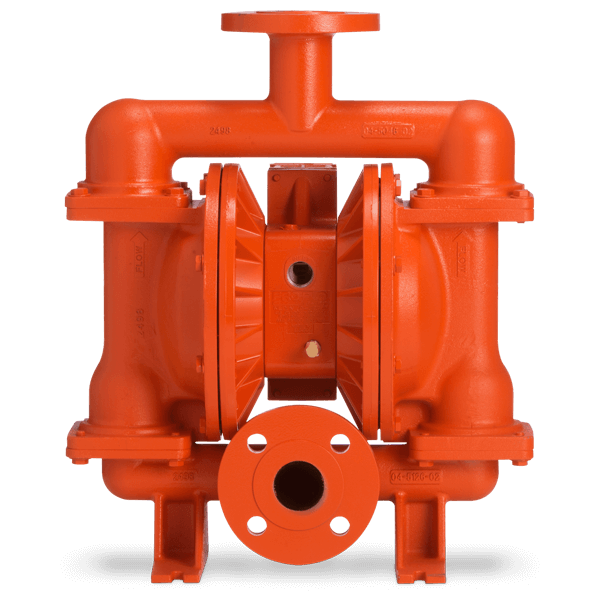

Wilden Pro-Flo® SHIFT Series Bolted Flanged Ductile Iron Pump 38 mm (1-1/2 inch) - PS430

Dimensions

Dim-GPS420-38mm1.5in-CSA-C-BMP
Note: Dimensions vary by material and connection. For additional information, please refer to the GPS420/GPS430 Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Flo-GPS420-38mm1.5in-CSA-C-BMP
Note: Additional performance curves can be found in the GPS420/GPS430 Metal Manual.

Specifications

Air Inlet
3/4" FNPT
Liquid Inlet
38 mm (1-1/2")
Liquid Discharge
38 mm (1-1/2")
Connection Type
NPT/BSPT (Threaded)
DIN/ANSI (Flanged)
Max Pressure
6.90 bar (100.00 psi)
Max Diameter Solids
6.40 mm (1/4")
Max Suction Lift Capability
EZ-Install TPE: 4.70m (15.30') Dry, 9.00m (29.50') Wet
Full-Stroke PTFE: 4.50m (14.80') Dry, 8.60m (28.40') Wet
Max Flow Rate
EZ-Install TPE: 441.00 lpm (117.00 gpm)
Full-Stroke PTFE: 460.00 lpm (122.00 gpm)
Displacement Per Stroke
EZ-Install TPE: 0.8 L (0.22 gal)
Full-Stroke PTFE: 0.9 L (0.239 gal)

Wetted Housings

Material Ship Wt
Aluminum (PS420) 26.00 kg (57.00 lb)
Aluminum (PS430) 28.00 kg (62.00 lb)
Stainless Steel (PS420) 50.00 kg (111.00 lb)
Stainless Steel (PS430) 53.00 kg (116.00 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum, Stainless Steel
Air Valve Aluminum, Stainless Steel
Air Chamber Aluminum, Stainless Steel

Elastomer Options

Material Temperature Limits
Buna-N -12.00°C to 82.00°C (10.00°F to 180.00°F)
PTFE* 4.00°C to 104.00°C (40.00°F to 220.00°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
