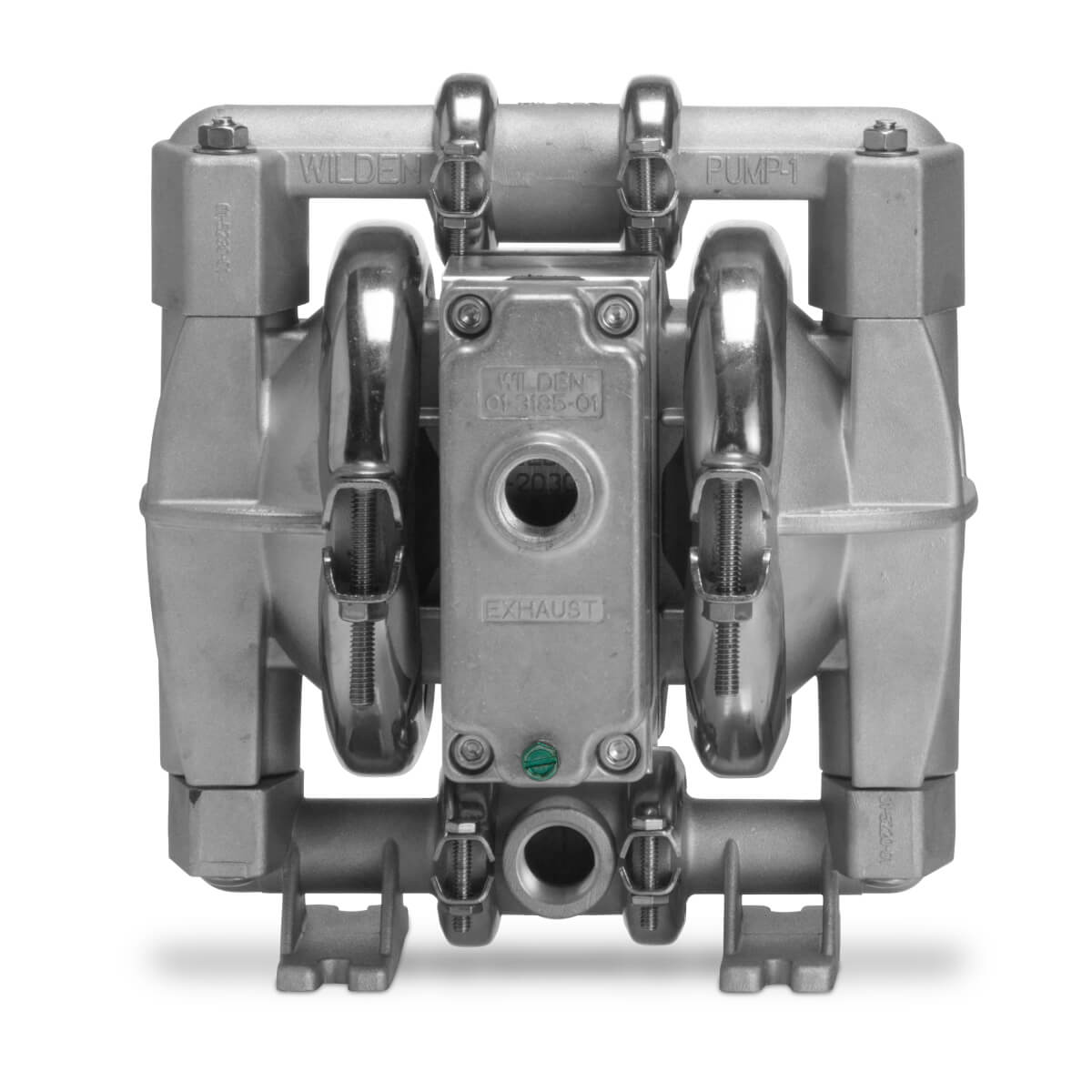

13 mm (1/2") CSA-Certified Clamped Metal Pump

GPS1 Features

Wilden® GPS Series pumps, equipped with the Pro-Flo® SHIFT Air Distribution System (ADS) and available in bolted metal construction, are certified by the Canadian Standards Association (CSA) to be powered by natural gas and maintain a safe, reliable operation. They are perfect for oil and gas operations where compressed air is not readily accessible but where natural gas is plentiful.

  • GPS Series pumps utilize the Wilden Pro-Flo SHIFT ADS
    • Helps plants save valuable natural gas
    • Pro-Flo SHIFT uses 60% less natural gas, without hindering performance
    • Greater flow - more gallons pumped per SCFM
Model Number: GPS1
Product Name: 13 mm (1/2") CSA-Certified Clamped Metal Pump
Please provide any extra details you wish to enquire about such as installation, maintenance services etc here or when the best time to contact you is if you wish to be contacted by phone.

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the GPS1 Metal Manual.

Flow Curve – PTFE-Fitted

Note: Additional performance curves can be found in the GPS1 Metal Manual.

Specifications

Air Inlet
1/2" FNPT
Liquid Inlet
13 mm (1/2")
Liquid Discharge
13 mm (1/2")
Connection Type
NPT/BSPT (Threaded)
Max Pressure
8.60 bar (125.00 psi)
Max Diameter Solids
1.60 mm (1/16")
Max Suction Lift Capability
Rubber: 5.90m (19.30') Dry, 9.80m (32.30') Wet
PTFE: 4.30m (14.20') Dry, 9.70m (31.70') Wet
Max Flow Rate
Rubber: 60.20 lpm (15.90 gpm)
PTFE: 59.80 lpm (15.80 gpm)
Displacement Per Stroke
Rubber: 0.1 L (0.026 gal)
PTFE: 1.1 L (0.026 gal)

Wetted Housings

Material Ship Wt
Aluminum 6.00 kg (13.00 lb)
Stainless Steel 9.00 kg (20.00 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum
Air Valve Aluminum

Elastomer Options

Material Temperature Limits
Buna-N -12.00°C to 82.00°C (10.00°F to 180.00°F)
PTFE* 4.00°C to 104.00°C (40.00°F to 220.00°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
