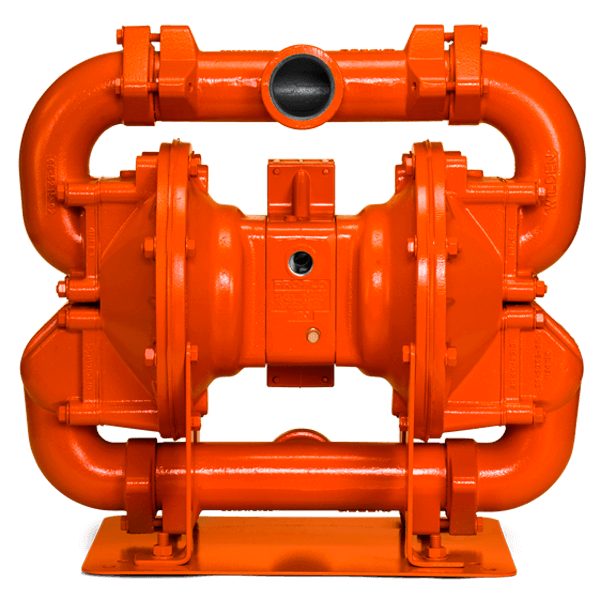

PS810 Features
Legendary Wilden® and Brahma™ Series Air-Operated Double-Diaphragm (AODD) Pumps transfer solid-laden slurries safely and effectively. The Brahma Series utilizes a unique top inlet, bottom discharge orientation and flap valves to allow passage of large-size solids and avoid damage from product entrapment and settling of solids in intermittent-duty applications.
Large internal clearance and flow-through design result in large-solids passage capacity and prevent the pump from clogging. It features bolted construction for superior containment and the ability to pass compressible solids up to 76 mm (3″), depending on pump size.
- Flap valve design for large-solids passage
- Top inlet, bottom discharge for easy transfer of sediment and solid-laden fluids
- Powered by Pro-Flo® SHIFT ADS
Dimensions
Note: Dimensions vary by material and connection. For additional information, please refer to the PS810 Metal Manual.
Flow Curve – Rubber-Fitted
Note: Additional performance curves can be found in the PS810 Metal Manual.
Specifications
Air Inlet
3/4" FNPT
Liquid Inlet
51 mm (2")
Liquid Discharge
51 mm (2")
Connection Type
NPT/BSPT (Threaded)Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
51.00 mm
(2")
Max Suction Lift Capability
7.40m
(23.30') Dry,
9.00m
(29.50') Wet
Max Flow Rate
640.00 lpm
(169.00 gpm)
Displacement Per Stroke
1.8 L
(0.475 gal)
Wetted Housings
| Material | Ship Wt |
|---|---|
| Aluminum | 37.00 kg (81.00 lb) |
| Ductile Iron | 57.00 kg (125.00 lb) |
Non-Wetted Housings
| Description | Material |
|---|---|
| Center Section | Aluminum |
| Air Valve | Aluminum, Anodized Aluminum |
| Air Chamber | Aluminum |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
| Neoprene | -18.00°C to 93.00°C (0.00°F to 200.00°F) |
