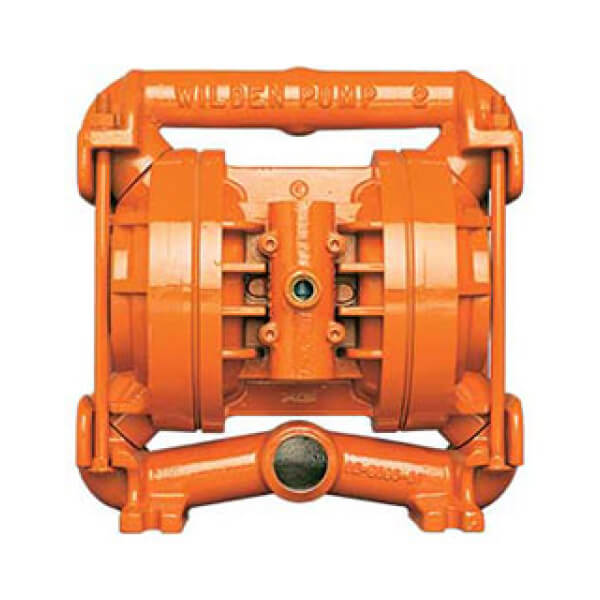

25 mm (1") Accu-Flo™ Clamped Metal Pump

A2 Features

Features and Benefits

Accu-Flo™ Series Air-Operated Double-Diaphragm (AODD) Pumps give you the critical external pump control necessary for exacting applications such as batching. Featuring a direct electrical interface that utilizes electrical impulses to stroke the pump instead of differential pressure, the Accu-Flo Series provides a variable stroke rate that you can easily control as needed. To meet your applications, Accu-Flo Series pumps are available as NEMA 5-compliant and comes in a variety of voltage options.

  • Integrated electronic (solenoid) control
  • Multiple signal input voltage options: 24V DC, 12V DC and 110V AC
  • Proven, robust clamped construction
Model Number: A2
Product Name: 25 mm (1") Accu-Flo™ Clamped Metal Pump
Please provide any extra details you wish to enquire about such as installation, maintenance services etc here or when the best time to contact you is if you wish to be contacted by phone.

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the A2 Metal Manual.

Flow Curve – Rubber-Fitted

Note: Additional performance curves can be found in the A2 Metal Manual.

Specifications

Air Inlet
1/4" FNPT
Liquid Inlet
25 mm (1")
Liquid Discharge
25 mm (1")
Connection Type
NPT/BSPT (Threaded)
Max Pressure
8.60 bar (125.00 psi)
Max Diameter Solids
3.20 mm (1/8")
Max Suction Lift Capability
Rubber: 7.43m (24.40') Dry, 9.70m (31.80') Wet
PTFE: 6.55m (21.50') Dry, 9.00m (29.50') Wet
Max Flow Rate
Rubber: 129.00 lpm (34.00 gpm)
PTFE: 121.00 lpm (32.00 gpm)
Displacement Per Stroke
Rubber: 0.35 L (0.092 gal)
PTFE: 0.2 L (0.054 gal)

Wetted Housings

Material Ship Wt
Aluminum 12.00 kg (26.00 lb)
Stainless Steel 16.00 kg (36.00 lb)
Alloy C 18.00 kg (40.00 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum, PTFE-coated Aluminum, Nickel-plated Aluminum, Polypropylene
Air Valve Aluminum, Acetal, Polypropylene, UHMW PE

Elastomer Options

Material Temperature Limits
Buna-N -12.00°C to 82.00°C (10.00°F to 180.00°F)
EPDM -51.00°C to 138.00°C (-60.00°F to 280.00°F)
FKM -40.00°C to 177.00°C (-41.00°F to 350.00°F)
Neoprene -18.00°C to 93.00°C (0.00°F to 200.00°F)
PTFE* 4.00°C to 104.00°C (40.00°F to 220.00°F)
Polyurethane -12.00°C to 66.00°C (10.00°F to 150.00°F)
Saniflex™ -29.00°C to 104.00°C (-20.00°F to 220.00°F)
Wil-Flex™ -40.00°C to 107.00°C (-40.00°F to 225.00°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
