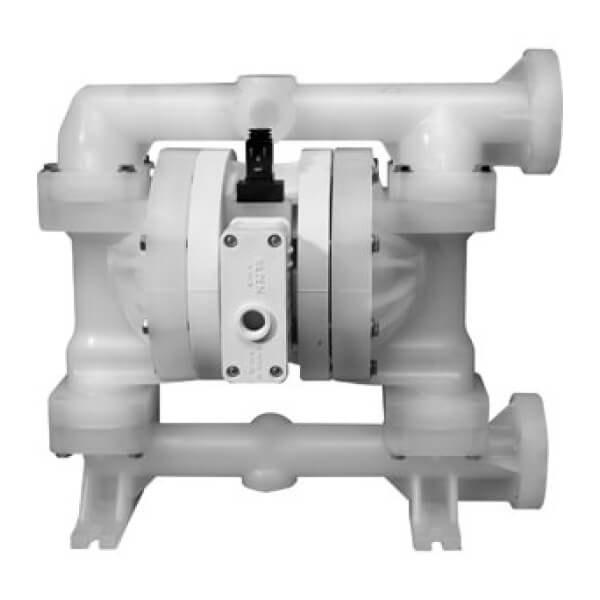

A200 Features
Accu-Flo™ Series Air-Operated Double-Diaphragm (AODD) Pumps give you the critical external pump control necessary for exacting applications such as batching. Featuring a direct electrical interface that utilizes electrical impulses to stroke the pump instead of differential pressure, the Accu-Flo Series provides a variable stroke rate that you can easily control as needed. To meet your applications, Accu-Flo Series pumps are available as NEMA 5-compliant and come in a variety of voltage options.
- Integrated electronic (solenoid) control
- Multiple signal input voltage options: 24V DC, 12V DC and 110V AC
- Proven, robust bolted construction
Specifications
Air Inlet
1/4" FNPT
Liquid Inlet
25 mm (1")
Liquid Discharge
25 mm (1")
Connection Type
DIN/ANSI (Flanged)Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
4.80 mm
(3/16")
Max Suction Lift Capability
Rubber:
4.80m
(15.90') Dry,
9.30m
(30.60') Wet
PTFE:
4.80m
(15.90') Dry,
9.30m
(30.60') Wet
Max Flow Rate
Rubber:
170.00 lpm
(45.00 gpm)
PTFE:
170.00 lpm
(45.00 gpm)
Displacement Per Stroke
Rubber:
0.34 L
(0.09 gal)
PTFE:
0.34 L
(0.09 gal)
Wetted Housings
Material | Ship Wt |
---|---|
Polypropylene | 14.00 kg (31.00 lb) |
PVDF | 19.00 kg (41.00 lb) |
Non-Wetted Housings
Description | Material |
---|---|
Center Section | Polypropylene |
Air Valve | Polypropylene |
Elastomer Options
Material | Temperature Limits |
---|---|
Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
FKM | -40.00°C to 177.00°C (-41.00°F to 350.00°F) |
Neoprene | -18.00°C to 93.00°C (0.00°F to 200.00°F) |
PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
Polyurethane | -12.00°C to 66.00°C (10.00°F to 150.00°F) |
Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
