A150V Features

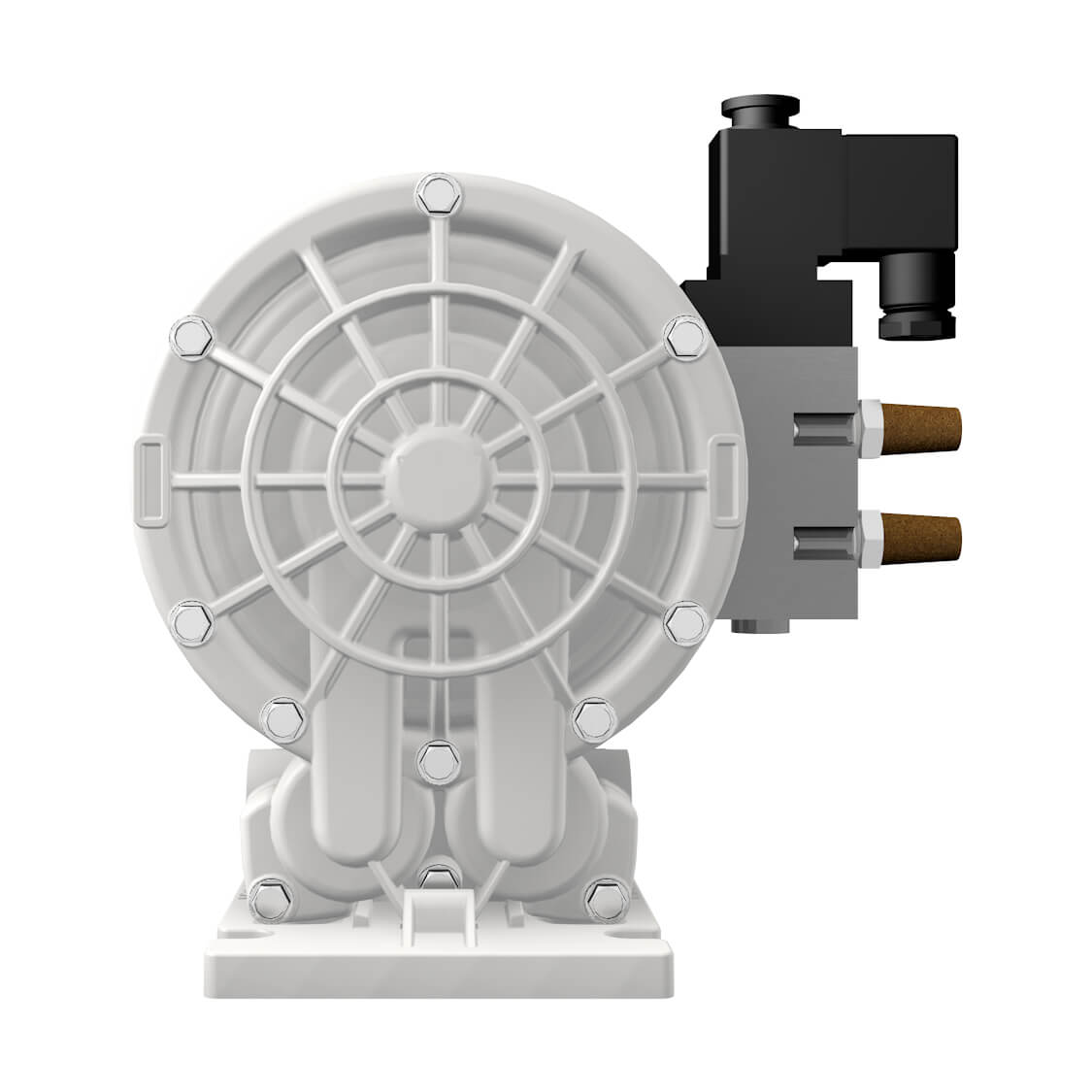

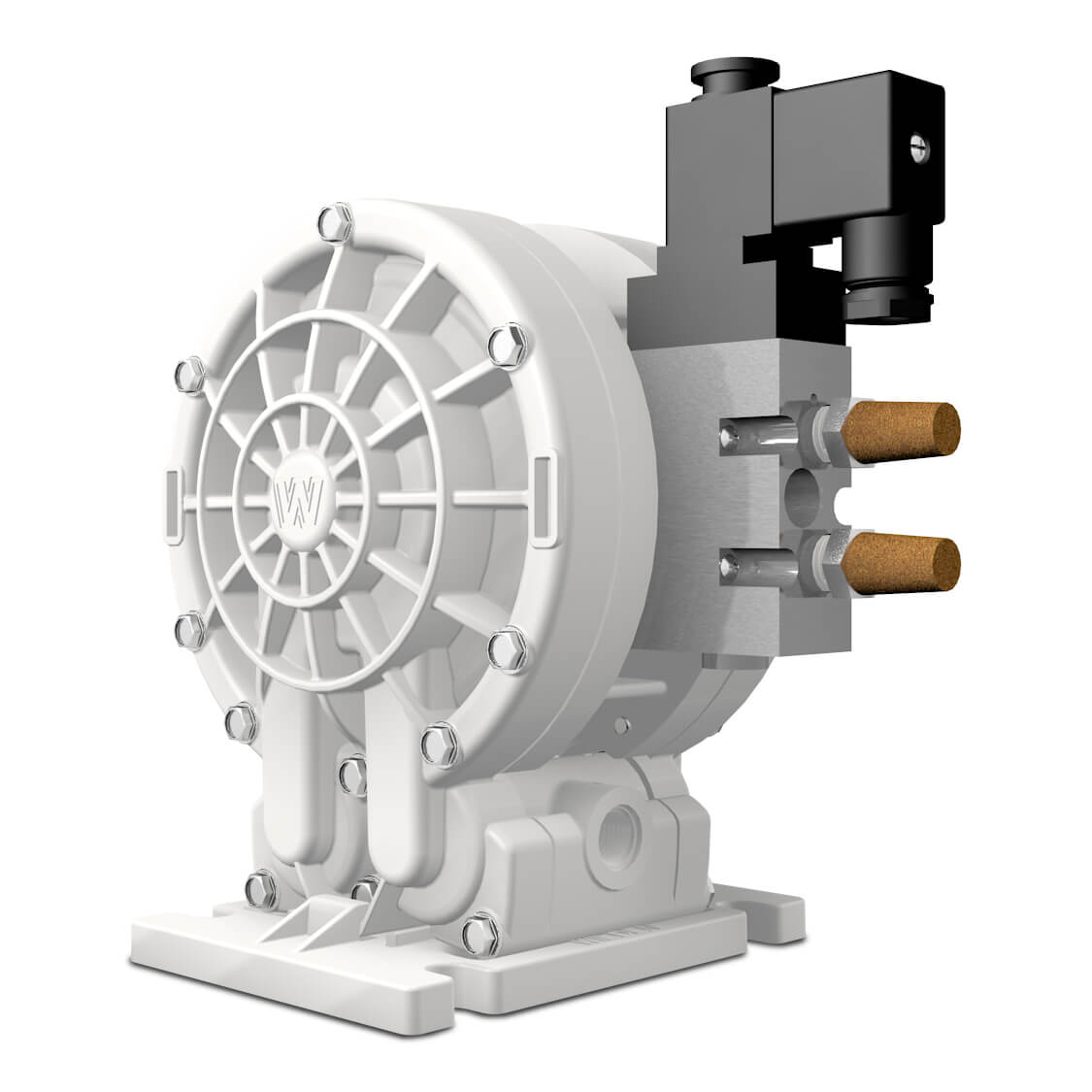

The Wilden® Accu-Flo Velocity Series is the solenoid option for the compact air-operated double-diaphragm (AODD) pump. Featuring a unique detachable mounting foot, Velocity Series pumps can easily be reoriented into a vertical or horizontal position with multiple inlet and discharge port options, a critical consideration for systems and skids.
- Numerous mounting configurations to fit any application
- 5.1 m (16.9') dry suction lift for better priming
- Startup pressures as low as 1.03 bar (15 psig)
- Bore-seal design that eliminates leaks that result from torque decay
- Interchangeable footprint with previous Wilden designs (P.025, P25)
Dimensions
Note: Dimensions vary by material and connection. For additional information, please refer to the V150 Plastic Manual.
Flow Curve – Rubber-Fitted
Note: Additional performance curves can be found in the V150 Plastic Manual.
Specifications
Air Inlet
1/2" FNPT
Liquid Inlet
13 mm (1/2")
Liquid Discharge
13 mm (1/2")
Connection Type
FNPT (Threaded)Max Pressure
6.90 bar
(100.00 psi)
Max Diameter Solids
1.60 mm
(1/16")
Max Suction Lift Capability
5.10m
(16.90') Dry,
7.60m
(25.99') Wet
Max Flow Rate
39.00 lpm
(10.49 gpm)
Displacement Per Stroke
0.11 L
(0.03 gal)
Wetted Housings
| Material | Ship Wt |
|---|---|
| Polypropylene | 3.00 kg (10.00 lb) |
| PVDF | 3.70 kg (10.00 lb) |
Non-Wetted Housings
| Description | Material |
|---|---|
| Air Valve | Polypropylene |
| Air Chambers | PET or Aluminum (Accu-Flo only) |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
| Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
