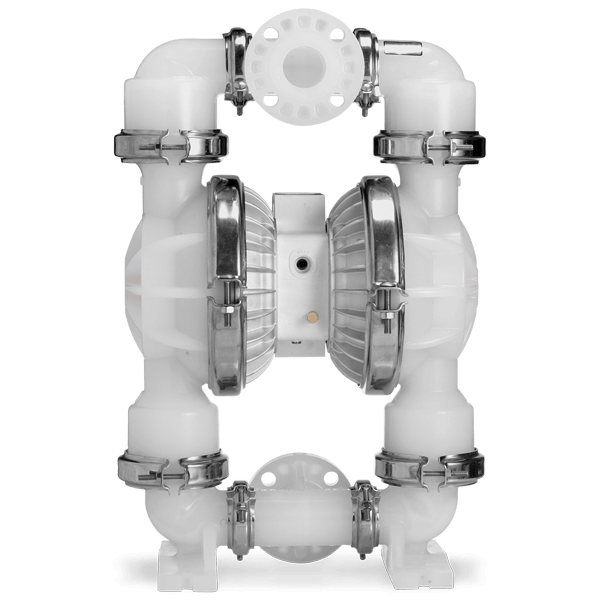

PS8 Features
When Jim Wilden first added a plastic pump series to his product portfolio, he designed it with what he knew best: a clamped pump. Incorporating the same benefits as a clamped metal pump, these plastic versions offer a simple, rugged design that is ideally suited for chemical applications. Engineered with ease of maintenance in mind, clamped plastic pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped plastic pumps have pumped billions of gallons of fluid on an annual basis.
- DIN and ANSI flanged inlet/discharge liquid connections
- Rotatable inlet and discharge for flexibility
- Featuring the energy-efficient Pro-Flo® SHIFT ADS
- Greater flow - more gallons pumped per SCFM
- Reduced air consumption and kilowatt usage
- Decades of proven performance
- Clamped connections for faster maintenance
- Low cost
- Simple installation
- Ease of operation and maintenance
Dimensions
Note: Dimensions vary by material and connection. For additional information, please refer to the PS8 Plastic Manual.
Flow Curve – EZ-Install TPE-Fitted
Note: Additional performance curves can be found in the PS8 Plastic Manual.
Specifications
Air Inlet
3/4" FNPT
Liquid Inlet
51 mm (2")
Liquid Discharge
51 mm (2")
Connection Type
DIN/ANSI (Flanged)Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
6.40 mm
(1/4")
Max Suction Lift Capability
Rubber:
6.60m
(21.80') Dry,
8.30m
(27.20') Wet
EZ-Install TPE:
6.20m
(20.20') Dry,
8.30m
(27.20') Wet
Full-Stroke PTFE:
6.10m
(19.90') Dry,
8.30m
(27.20') Wet
Max Flow Rate
Rubber:
643.00 lpm
(170.00 gpm)
EZ-Install TPE:
643.00 lpm
(170.00 gpm)
Full-Stroke PTFE:
597.00 lpm
(158.00 gpm)
Displacement Per Stroke
Rubber:
2.8 L
(0.75 gal)
EZ-Install TPE:
2.7 L
(0.72 gal)
Full-Stroke PTFE:
2.6 L
(0.69 gal)
Wetted Housings
| Material | Ship Wt |
|---|---|
| Polypropylene | 36.00 kg (79.00 lb) |
Non-Wetted Housings
| Description | Material |
|---|---|
| Center Block | Polypropylene, Aluminum, Stainless Steel |
| Air Valve | Polypropylene, Aluminum, Stainless Steel |
| Air Chamber | Polypropylene, Aluminum, Stainless Steel |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
| EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
| FKM | -40.00°C to 177.00°C (-41.00°F to 350.00°F) |
| Geolast® | -40.00°C to 82.00°C (-40.00°F to 180.00°F) |
| Neoprene | -18.00°C to 93.00°C (0.00°F to 200.00°F) |
| PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
| Polyurethane | -12.00°C to 66.00°C (10.00°F to 150.00°F) |
| Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
| Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
