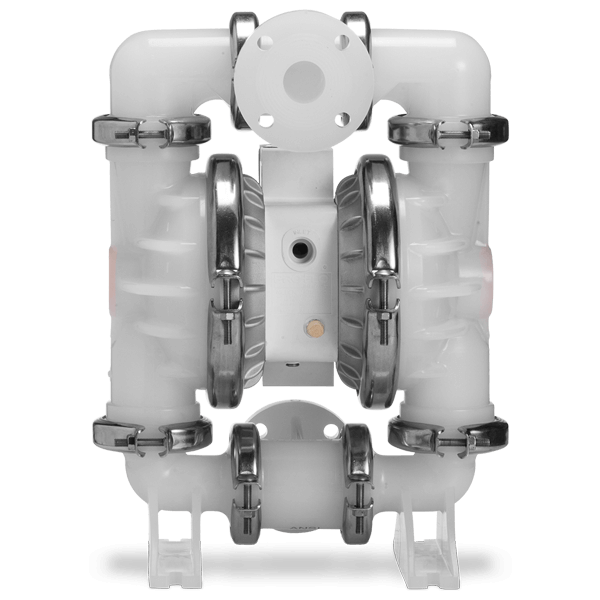

38 mm (1-1/2") Pro-Flo® SHIFT Series Clamped Plastic Pump

PS4 Features

When Jim Wilden first added a plastic pump series to his product portfolio, he designed it with what he knew best: a clamped pump. Incorporating the same benefits as a clamped metal pump, these plastic versions offer a simple, rugged design that is ideally suited for chemical applications. Engineered with ease of maintenance in mind, clamped plastic pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped plastic pumps have pumped billions of gallons of fluid on an annual basis.

  • DIN and ANSI flanged inlet/discharge liquid connections
  • Rotatable inlet and discharge for flexibility
  • Featuring the energy-efficient Pro-Flo® SHIFT ADS
  • Greater flow - more gallons pumped per SCFM
  • Reduced air consumption and kilowatt usage
  • Decades of proven performance
  • Clamped connections for faster maintenance
  • Low cost
  • Simple installation
  • Ease of operation and maintenance

Enquire About this product

Model Number: PS4
Product Name: 38 mm (1-1/2") Pro-Flo® SHIFT Series Clamped Plastic Pump
Please provide any extra details you wish to enquire about such as installation, maintenance services etc here or when the best time to contact you is if you wish to be contacted by phone.
Wilden Pro-Flo® SHIFT Series Clamped Plastic Pump 38 mm (1-1/2 inch) - PS4

Dimensions

Dim-PS4-38mm
Note: Dimensions vary by material and connection. For additional information, please refer to the PS4 Plastic Manual.

Flow Curve – EZ-Install TPE-Fitted

Flo-PS4-38mm
Note: Additional performance curves can be found in the PS4 Plastic Manual.

Specifications

Air Inlet
3/4" FNPT
Liquid Inlet
38 mm (1-1/2")
Liquid Discharge
38 mm (1-1/2")
Connection Type
DIN/ANSI (Flanged)
Max Pressure
8.60 bar (125.00 psi)
Max Diameter Solids
4.80 mm (3/16")
Max Suction Lift Capability
Rubber: 5.90m (19.50') Dry, 8.30m (27.20') Wet
EZ-Install TPE: 6.20m (20.40') Dry, 8.30m (27.20') Wet
Full-Stroke PTFE: 6.10m (19.90') Dry, 8.30m (27.20') Wet
Max Flow Rate
Rubber : 379.00 lpm (100.00 gpm)
EZ-Install TPE: 378.00 lpm (100.00 gpm)
Full-Stroke PTFE: 368.00 lpm (98.00 gpm)
Displacement Per Stroke
Rubber: 1 L (0.26 gal)
EZ-Install TPE: 1 L (0.26 gal)
Full-Stroke PTFE: 1 L (0.26 gal)

Wetted Housings

Material Ship Wt
Polypropylene 18.00 kg (40.00 lb)
PVDF 24.00 kg (51.99 lb)

Non-Wetted Housings

Description Material
Center Block Polypropylene, Aluminum, Stainless Steel
Air Valve Polypropylene, Aluminum, Stainless Steel
Air Chamber Aluminum, PFA-Coated Aluminum, Stainless Steel

Elastomer Options

Material Temperature Limits
Buna-N -12.00°C to 82.00°C (10.00°F to 180.00°F)
EPDM -51.00°C to 138.00°C (-60.00°F to 280.00°F)
FKM -40.00°C to 177.00°C (-41.00°F to 350.00°F)
Geolast® -40.00°C to 82.00°C (-40.00°F to 180.00°F)
Neoprene -18.00°C to 93.00°C (0.00°F to 200.00°F)
PTFE* 4.00°C to 104.00°C (40.00°F to 220.00°F)
Polyurethane -12.00°C to 66.00°C (10.00°F to 150.00°F)
Saniflex™ -29.00°C to 104.00°C (-20.00°F to 220.00°F)
Wil-Flex™ -40.00°C to 107.00°C (-40.00°F to 225.00°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
