PS15 Features
Featuring the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped pumps have pumped billions of gallons of fluid on an annual basis.
- NPT and BSP threaded inlet/discharge liquid connections for quick disconnect/connect
- Featuring the energy-efficient Pro-Flo® SHIFT ADS
- Greater flow - more gallons pumped per SCFM
- Reduced air consumption and kilowatt usage
- Decades of proven performance
- Clamped connections for faster maintenance
- Low cost
- Simple installation
- Ease of operation and maintenance
Dimensions
Note: Dimensions vary by material and connection. For additional information, please refer to the PS15 Metal Manual.
Flow Curve – EZ-Install TPE-Fitted
Note: Additional performance curves can be found in the PS220/PS230 Metal Manual.
Specifications
Air Inlet
3/4" FNPT
Liquid Inlet
76 mm (3")
Liquid Discharge
76 mm (3")
Connection Type
NPT/BSPT (Threaded)Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
9.50 mm
(3/8")
Max Suction Lift Capability
Rubber:
6.60m
(21.60') Dry,
8.60m
(28.40') Wet
EZ-Install TPE:
6.30m
(20.70') Dry,
8.60m
(28.40') Wet
Full-Stroke PTFE:
6.20m
(20.20') Dry,
8.60m
(28.38') Wet
Max Flow Rate
Rubber:
927.00 lpm
(245.00 gpm)
EZ-Install TPE:
901.00 lpm
(238.00 gpm)
Full-Stroke PTFE:
916.00 lpm
(241.99 gpm)
Displacement Per Stroke
Rubber:
5.2 L
(1.38 gal)
EZ-Install TPE:
5.3 L
(1.41 gal)
Full-Stroke PTFE:
5.1 L
(1.339 gal)
Wetted Housings
| Material | Ship Wt |
|---|---|

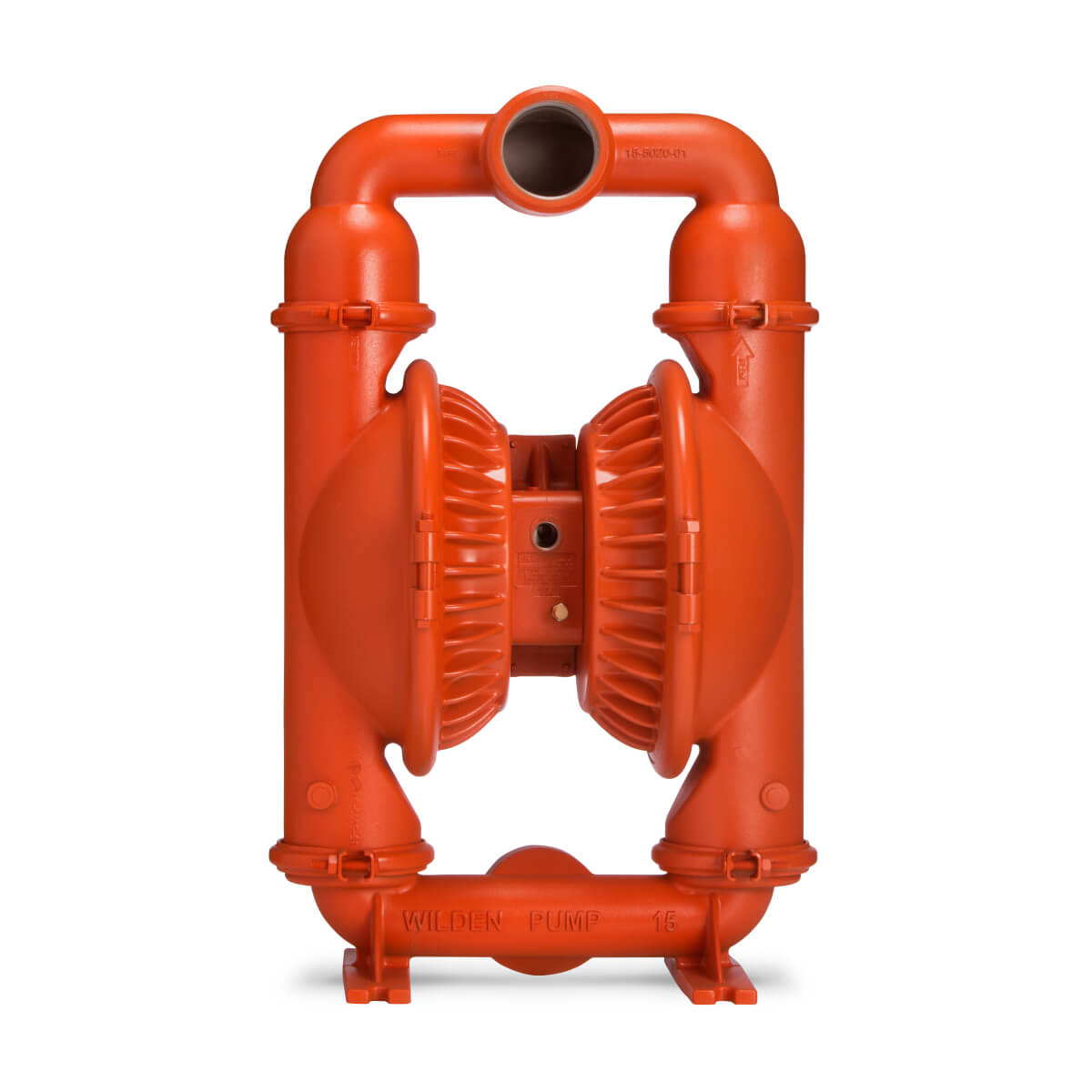

| Aluminum | 55.00 kg (121.00 lb) |

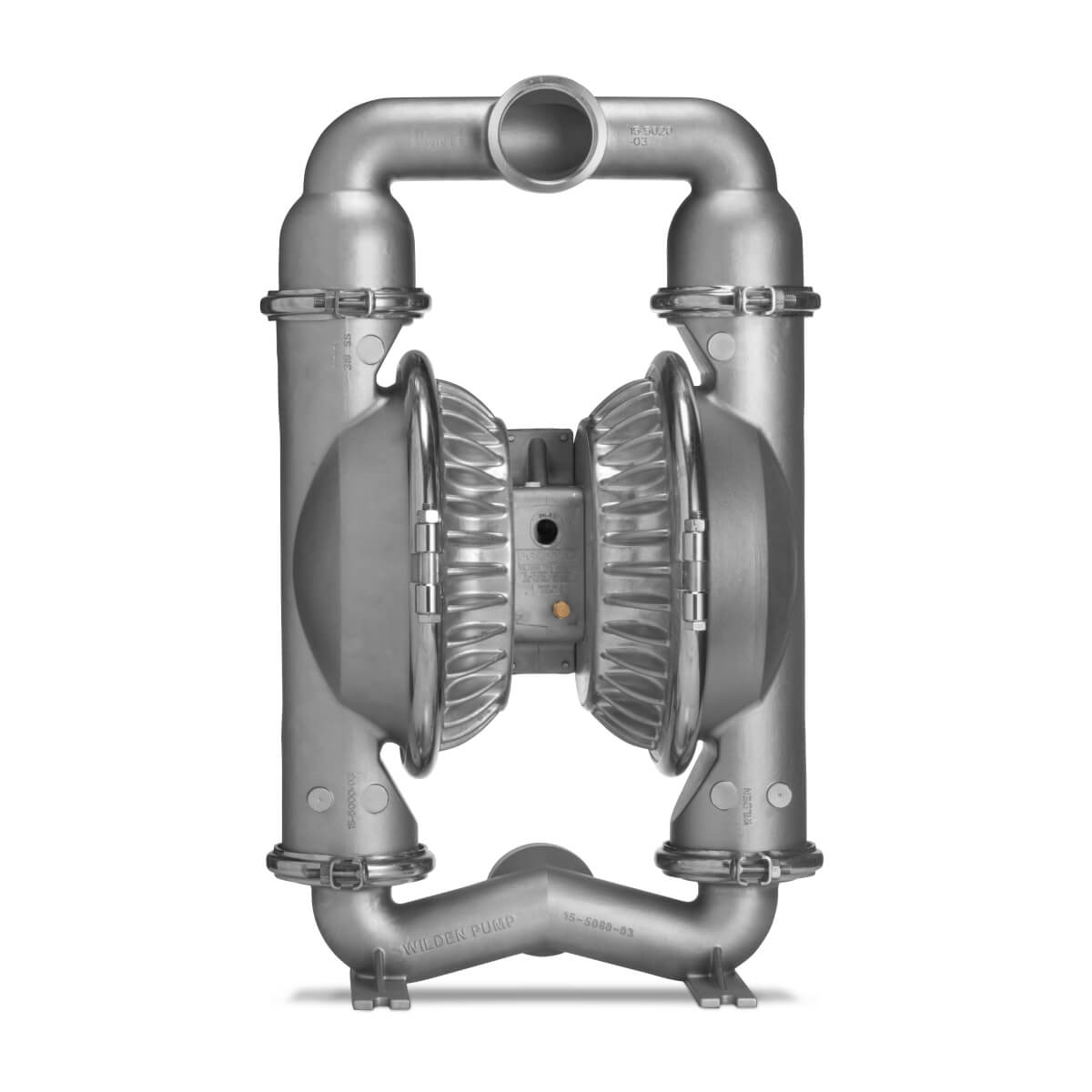

| Stainless Steel | 105.00 kg (230.00 lb) |

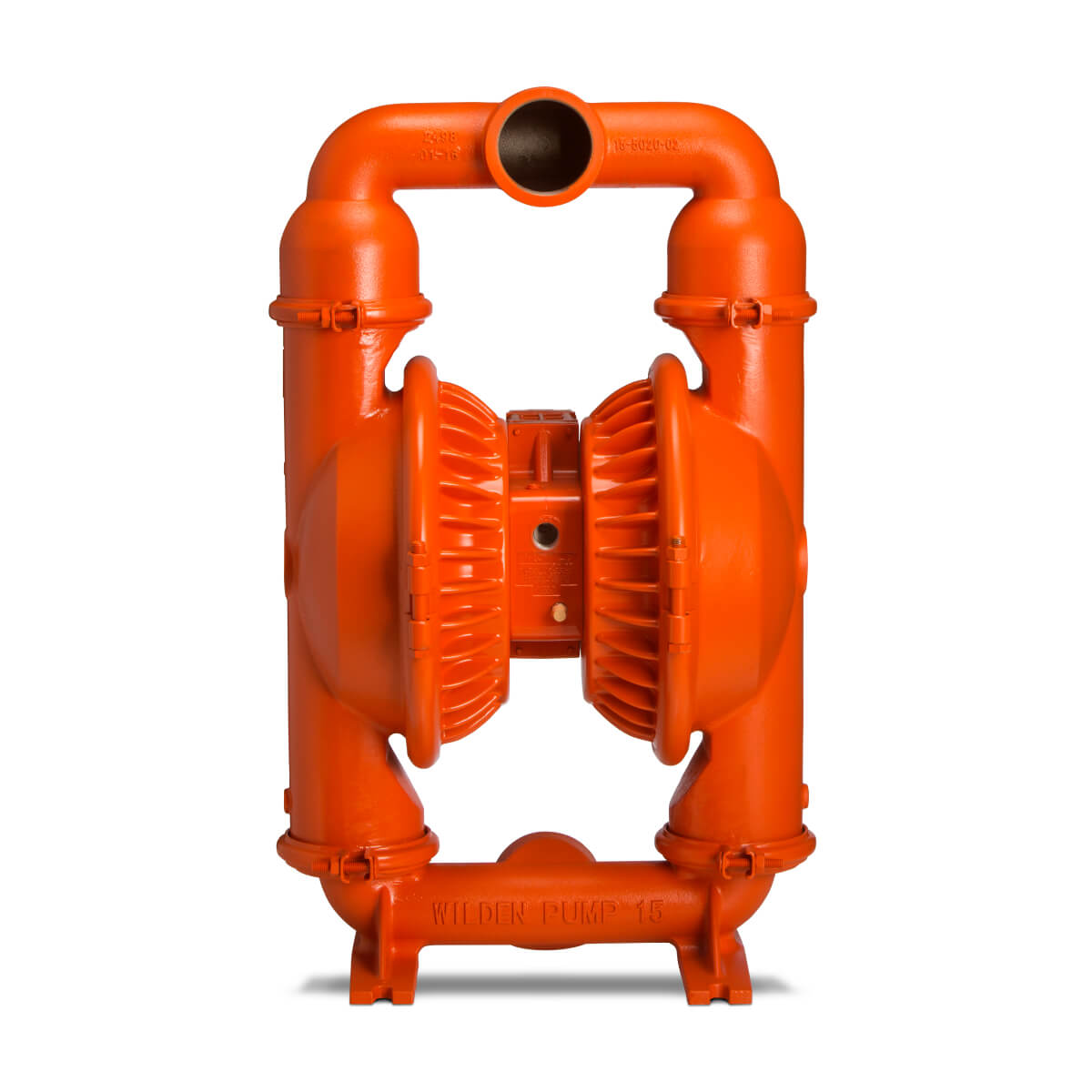

| Ductile Iron | 93.00 kg (205.00 lb) |
Non-Wetted Housings
| Description | Material |
|---|---|
| Center Section | Aluminum, Nickel-Plated Aluminum, Stainless Steel, Polypropylene |
| Air Valve | Aluminum, Nickel-Plated Aluminum, Anodized Aluminum, Stainless Steel, Polypropylene |
| Air Chamber | Aluminum, Stainless Steel |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
| EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
| FKM | -40.00°C to 177.00°C (-41.00°F to 350.00°F) |
| Geolast® | -40.00°C to 82.00°C (-40.00°F to 180.00°F) |
| Neoprene | -18.00°C to 93.00°C (0.00°F to 200.00°F) |
| PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
| Polyurethane | -12.00°C to 66.00°C (10.00°F to 150.00°F) |
| Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
| Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
