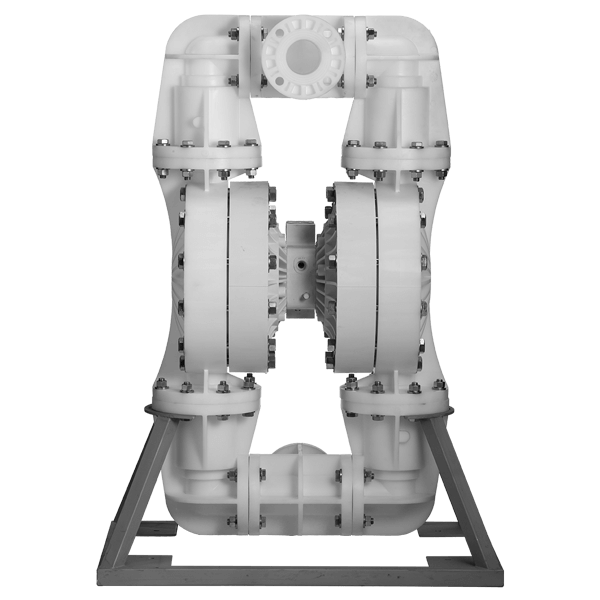

PS1500 Features
The Wilden® bolted plastic air-operated double-diaphragm (AODD) pump combines maximum performance and efficiency with superior containment. Wilden's bolted-construction pumps offer improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.
- DIN or ANSI flanged inlet/discharge liquid connections
- Featuring the energy-efficient Pro-Flo® SHIFT ADS
- Greater flow - more gallons pumped per SCFM
- Reduced air consumption and kilowatt usage
- Bolted construction for superior containment
- Large-solids passage
- High suction lift
- Ease of operation and maintenance
- Increased on/off reliability
- Longest Mean Time Between Repair (MTBR)
Specifications
Air Inlet
3/4" FNPT
Liquid Inlet
76 mm (3")
Liquid Discharge
76 mm (3")
Connection Type
DIN/ANSI (Flanged)Max Pressure
Polypropylene -
6.90 bar
(100.00 psi)
PVDF -
8.60 bar
(125.00 psi)
Max Diameter Solids
13.00 mm
(1/2")
Max Suction Lift Capability
EZ-Install TPE:
5.30m
(17.50') Dry,
8.30m
(28.40') Wet
Full-Stroke PTFE:
5.80m
(19.10') Dry,
8.60m
(28.40') Wet
Reduced-Stroke PTFE:
3.50m
(11.60') Dry,
8.60m
(28.39') Wet
Max Flow Rate
EZ-Install TPE:
1024.00 lpm
(271.00 gpm)
Full-Stroke PTFE:
999.00 lpm
(262.00 gpm)
Reduced-Stroke PTFE:
882.00 lpm
(233.00 gpm)
Displacement Per Stroke
EZ-Install TPE:
5.4 L
(1.42 gal)
Full-Stroke PTFE:
5.3 L
(1.4 gal)
Reduced-Stroke PTFE:
3.5 L
(0.93 gal)
Wetted Housings
Material | Ship Wt |
---|---|
Polypropylene | 125.00 kg (275.00 lb) |
PVDF | 152.00 kg (335.00 lb) |
Non-Wetted Housings
Description | Material |
---|---|
Center Block | Polypropylene |
Air Valve | Polypropylene |
Air Chamber | Polypropylene |
Elastomer Options
Material | Temperature Limits |
---|---|
Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
FKM | -40.00°C to 177.00°C (-41.00°F to 350.00°F) |
Geolast® | -40.00°C to 82.00°C (-40.00°F to 180.00°F) |
Neoprene | -18.00°C to 93.00°C (0.00°F to 200.00°F) |
PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
Polyurethane | -12.00°C to 66.00°C (10.00°F to 150.00°F) |
Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
