PS1520/PS1530 Features
The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.

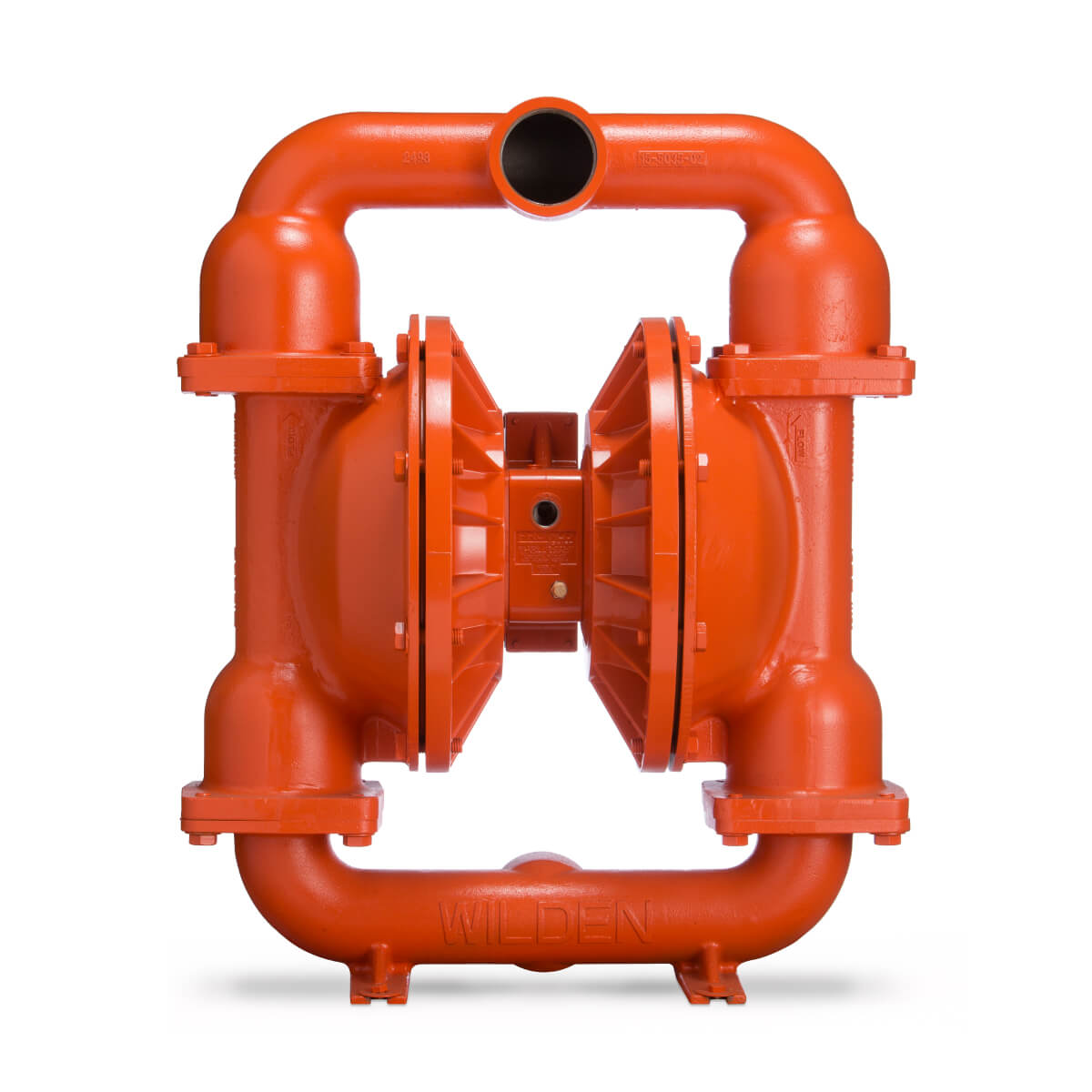

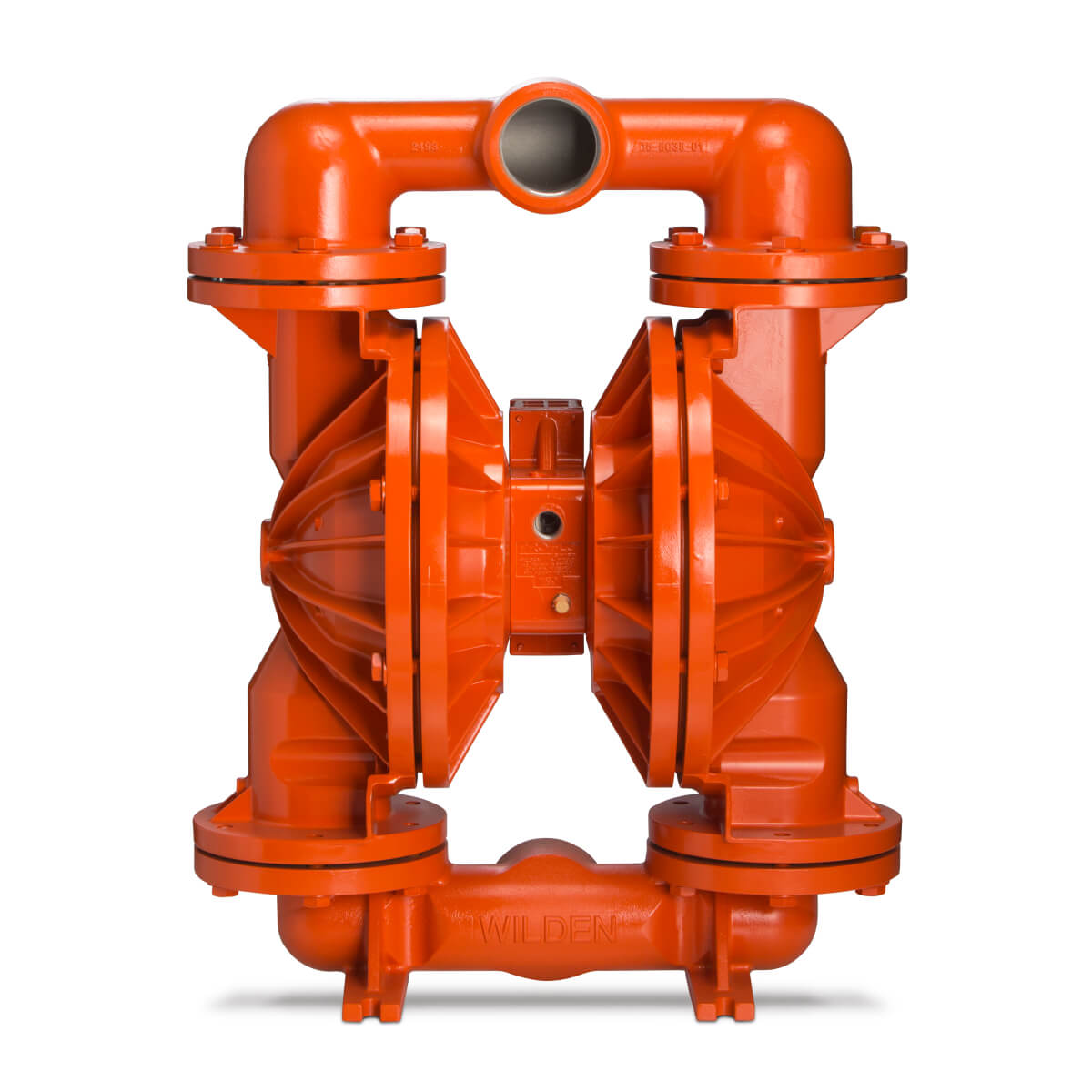

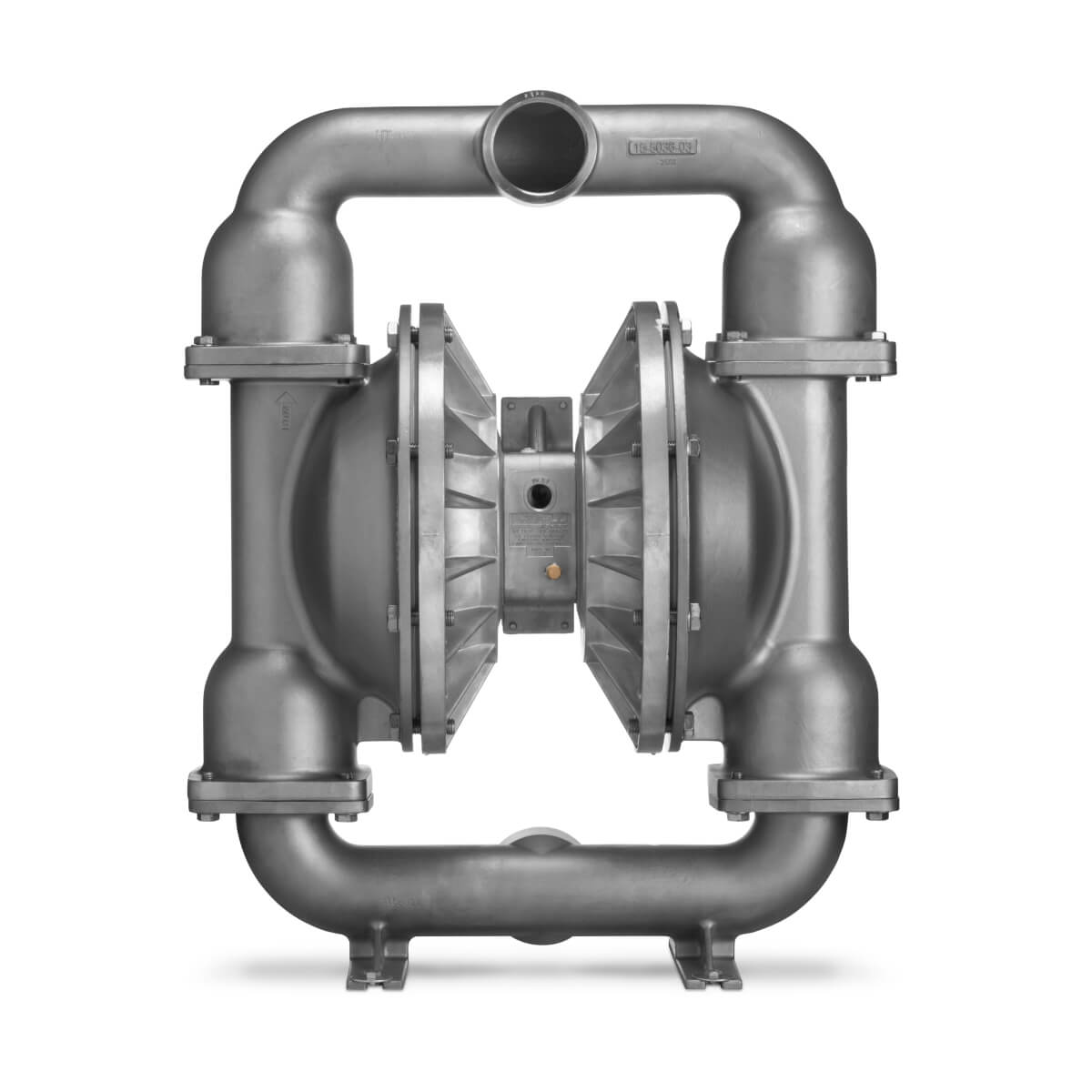

- NPT or BSPT threaded inlet/discharge liquid connections (PS1520)

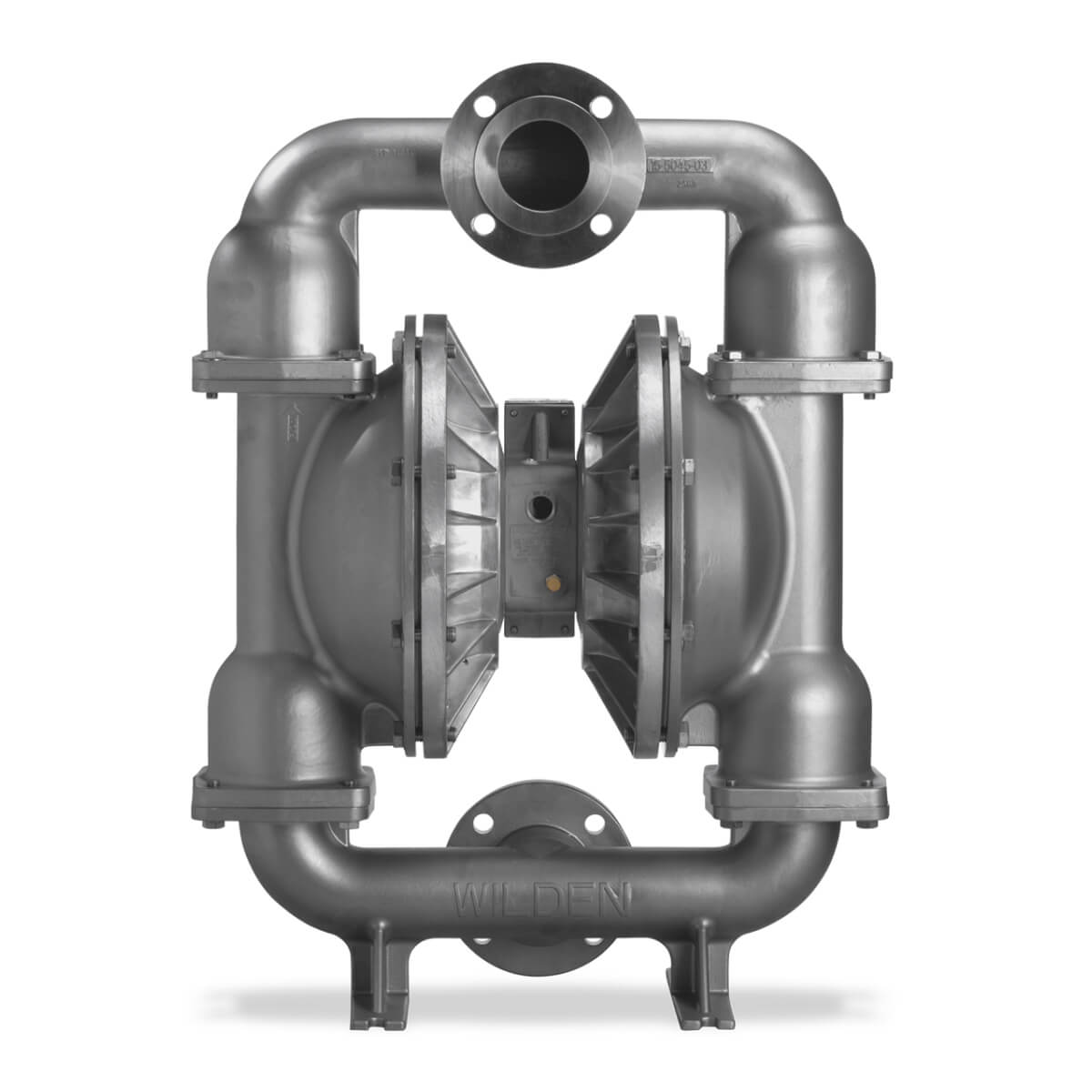

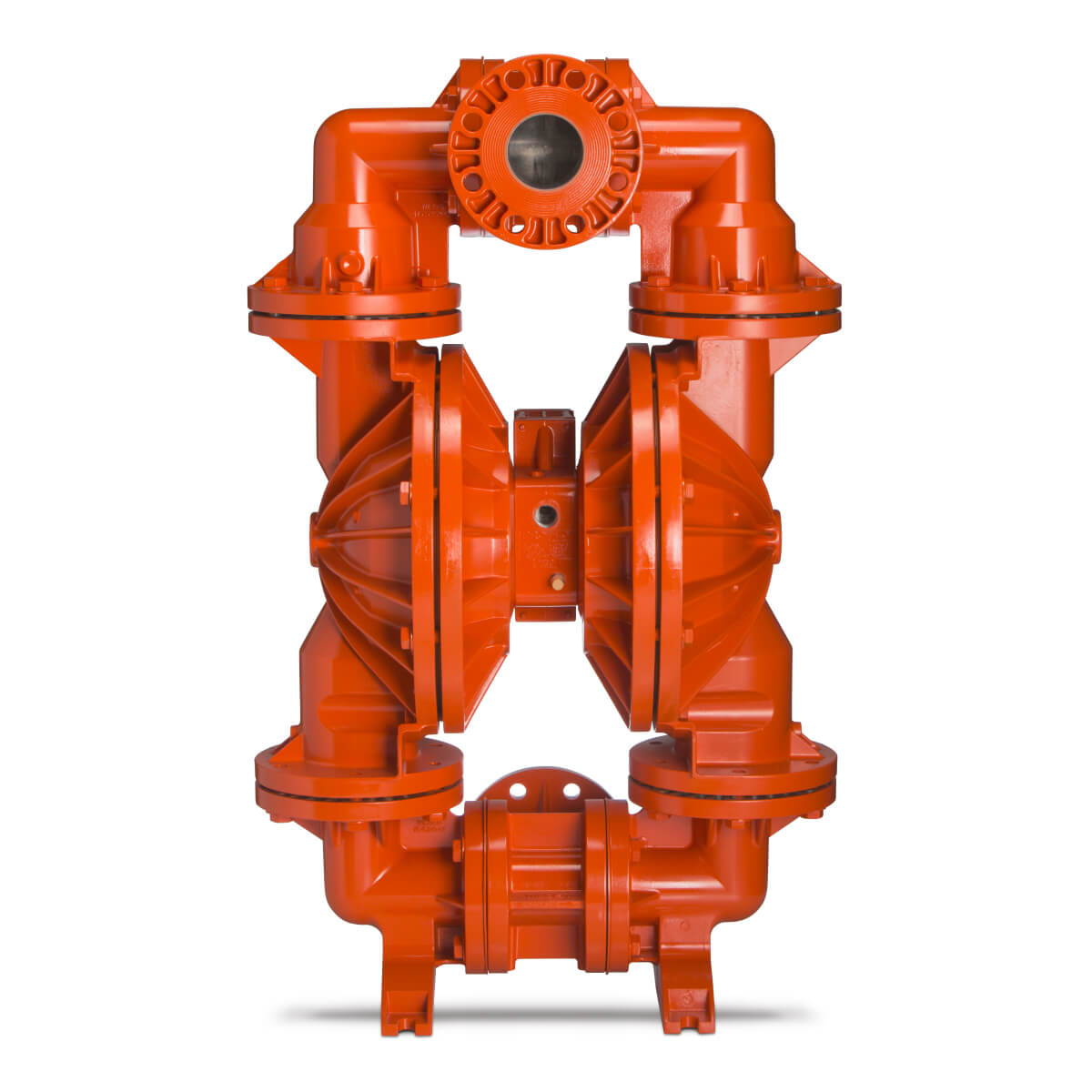

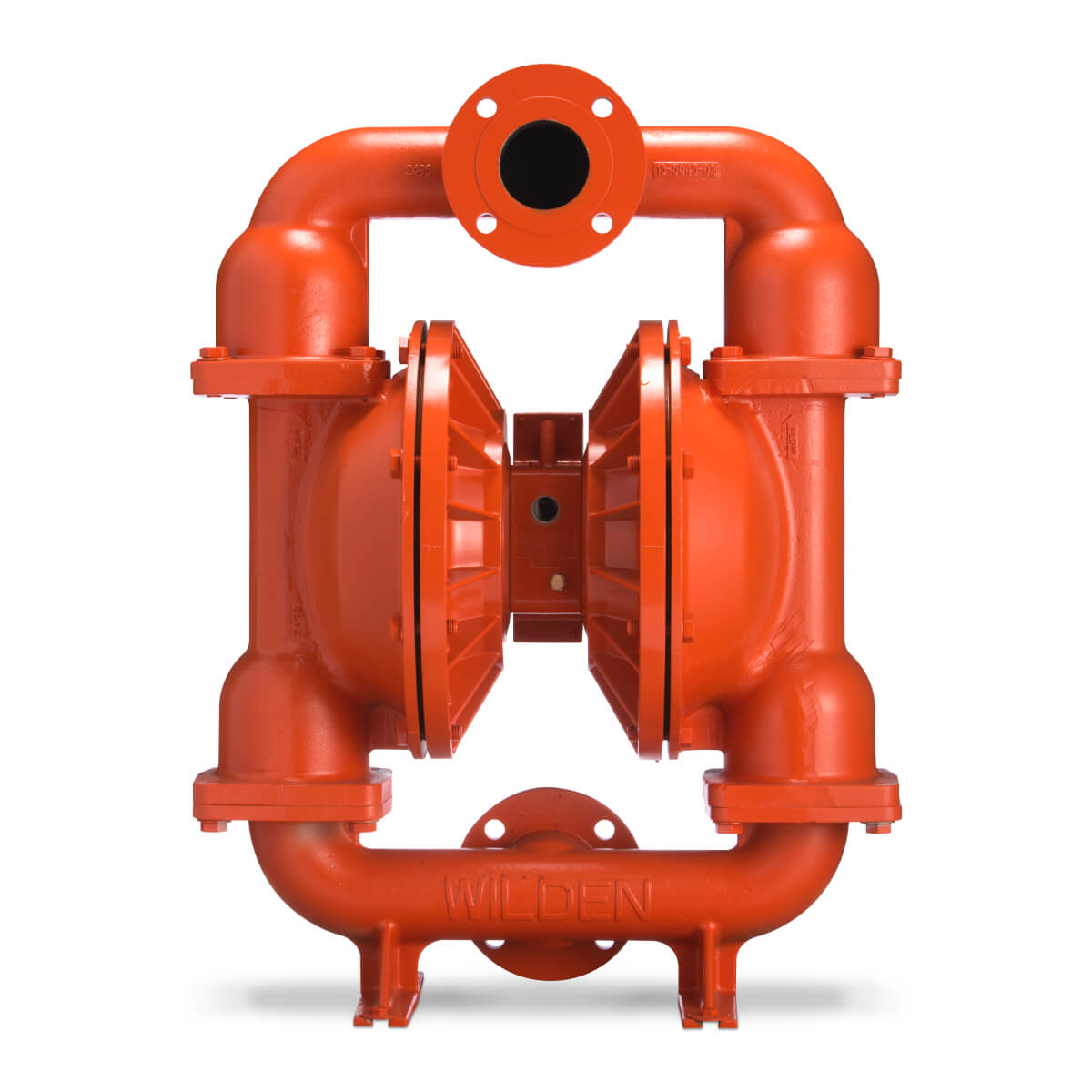

- DIN or ANSI flanged inlet/discharge liquid connections (PS1530) that don't require welding or nipple attachment
- Featuring the energy-efficient Pro-Flo® SHIFT ADS
- Greater flow - more gallons pumped per SCFM
- Reduced air consumption and kilowatt usage
- Largest chemical compatibilities
- Portable and submersible
- Large-solids passage
- High suction lift
- Ease of operation and maintenance
- Flexible internal adjustment on manifolds
- Increased on/off reliability
- Longest Mean Time Between Repair (MTBR)
Dimensions
Note: Dimensions vary by material and connection. For additional information, please refer to the P1520/PS1530 Metal Manual.
Flow Curve – EZ-Install TPE-Fitted
Note: Additional performance curves can be found in the PS1520/PS1530 Metal Manual.
Specifications
Air Inlet
3/4" FNPT
Liquid Inlet
76 mm (3")
Liquid Discharge
76 mm (3")
Connection Type
NPT/BSPT (Threaded)DIN/ANSI (Flanged)
Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
8.60 mm
(125")
Max Suction Lift Capability
Rubber:
7.20m
(23.80') Dry,
9.70m
(31.80') Wet
EZ-Install TPE:
6.40m
(21.10') Dry,
9.70m
(31.80') Wet
Full-Stroke PTFE:
6.20m
(20.20') Dry,
8.60m
(28.40') Wet
Full-Stroke PTFE (Ductile Iron):
5.90m
(19.50') Dry,
9.70m
(31.70') Wet
Max Flow Rate
Rubber:
1026.00 lpm
(271.00 gpm)
EZ-Install TPE:
1026.00 lpm
(271.00 gpm)
Full-Stroke PTFE:
992.00 lpm
(262.00 gpm)
Full-Stroke PTFE (Ductile Iron):
874.00 lpm
(231.00 gpm)
Displacement Per Stroke
Rubber:
5.1 L
(1.35 gal)
EZ-Install TPE:
5.4 L
(1.43 gal)
Full-Stroke PTFE:
5 L
(1.32 gal)
Full-Stroke PTFE (Ductile Iron):
4.8 L
(1.26 gal)
Wetted Housings
| Material | Ship Wt |
|---|---|
| Aluminum (PS1520) | 69.00 kg (152.00 lb) |
| Aluminum (PS1530) | 101.00 kg (223.00 lb) |
| Stainless Steel (PS1520) | 126.00 kg (278.00 lb) |
| Stainless Steel (PS1530) | 137.00 kg (300.00 lb) |
| Ductile Iron (PS1520) | 114.00 kg (251.00 lb) |
| Ductile Iron (PS1530) | 124.00 kg (272.00 lb) |
Non-Wetted Housings
| Description | Material |
|---|---|
| Center Section | Aluminum, Polypropylene, Stainless Steel |
| Air Valve | Aluminum, Polypropylene, Anodized Aluminum, Stainless Steel |
| Air Chamber | Aluminum, Stainless Steel |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
| EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
| FKM | -40.00°C to 177.00°C (-41.00°F to 350.00°F) |
| Geolast® | -40.00°C to 82.00°C (-40.00°F to 180.00°F) |
| Neoprene | -18.00°C to 93.00°C (0.00°F to 200.00°F) |
| PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
| Polyurethane | -12.00°C to 66.00°C (10.00°F to 150.00°F) |
| Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
| Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
