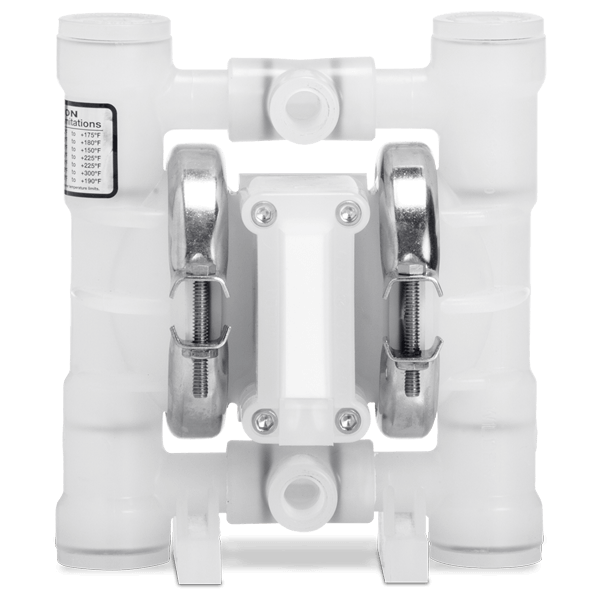

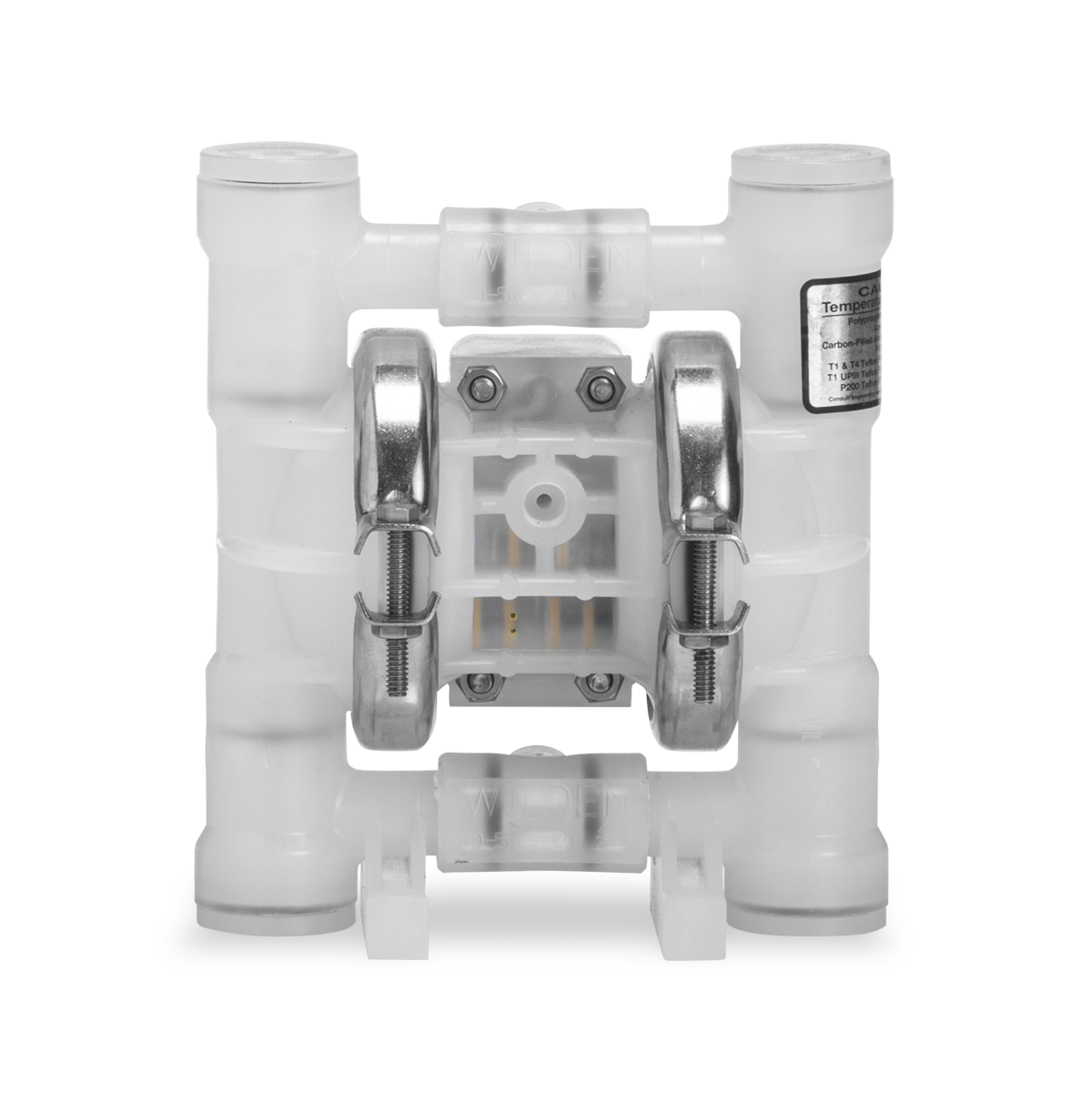

P.025 Features
When Jim Wilden first added a plastic pump series to his product portfolio, he designed it with what he knew best: a clamped pump. Incorporating the same benefits as a clamped metal pump, these plastic versions offer a simple, rugged design that is ideally suited for chemical applications. Engineered with ease of maintenance in mind, clamped plastic pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped plastic pumps have pumped billions of gallons of fluid on an annual basis.
- FNPT threaded inlet/discharge liquid connections
- Rotatable inlet and discharge for flexibility
- Decades of proven performance
- Clamped connections for faster maintenance
- Low cost
- Simple installation
- Ease of operation and maintenance
Specifications
Air Inlet
1/8" FNPT
Liquid Inlet
6 mm (1/4")
Liquid Discharge
6 mm (1/4")
Connection Type
NPT/BSPT (Threaded)Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
0.40 mm
(1/64")
Max Suction Lift Capability
Rubber:
2.74m
(9.00') Dry,
9.45m
(31.00') Wet
TPE:
3.05m
(10.00') Dry,
8.84m
(29.00') Wet
PTFE:
2.44m
(8.00') Dry,
8.84m
(28.99') Wet
Max Flow Rate
Rubber:
18.10 lpm
(4.80 gpm)
TPE:
18.10 lpm
(4.80 gpm)
PTFE:
18.10 lpm
(4.80 gpm)
Displacement Per Stroke
Rubber:
0.02 L
(0.005 gal)
TPE:
0.02 L
(0.005 gal)
PTFE:
0.02 L
(0.005 gal)
Wetted Housings
Material | Ship Wt |
---|---|
Polypropylene | 1.40 kg (3.00 lb) |
PVDF | 1.40 kg (3.00 lb) |
Non-Wetted Housings
Description | Material |
---|---|
Center Section | Polypropylene, Acetal |
Air Valve | Polypropylene, Acetal |
Elastomer Options
Material | Temperature Limits |
---|---|
Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
FKM | -40.00°C to 177.00°C (-41.00°F to 350.00°F) |
Neoprene | -18.00°C to 93.00°C (0.00°F to 200.00°F) |
PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
