P1 Features
Featuring the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped pumps have pumped billions of gallons of fluid on an annual basis.
- NPT and BSP threaded inlet/discharge liquid connections for quick disconnect/connect
- Decades of proven performance
- Clamped connections for faster maintenance
- Low cost
- Simple installation
- Ease of operation and maintenance
Specifications
Air Inlet
1/4" FNPT
Liquid Inlet
13 mm (1/2")
Liquid Discharge
13 mm (1/2")
Connection Type
NPT/BSPT (Threaded)Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
1.59 mm
(1/16")
Max Suction Lift Capability
Rubber:
5.80m
(19.00') Dry,
9.50m
(31.00') Wet
TPE:
5.20m
(17.00') Dry,
9.50m
(31.00') Wet
PTFE:
4.90m
(16.00') Dry,
9.50m
(30.98') Wet
Max Flow Rate
Rubber:
58.70 lpm
(15.50 gpm)
TPE:
58.30 lpm
(15.40 gpm)
PTFE:
54.40 lpm
(14.38 gpm)
Displacement Per Stroke
Rubber:
0.11 L
(0.029 gal)
TPE:
0.11 L
(0.029 gal)
PTFE:
0.09 L
(0.025 gal)
Wetted Housings
Material | Ship Wt |
---|---|

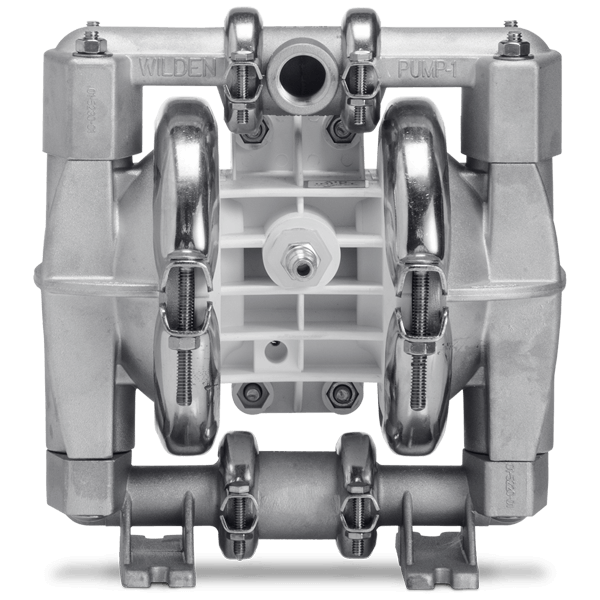

Aluminum | 6.00 kg (13.00 lb) |

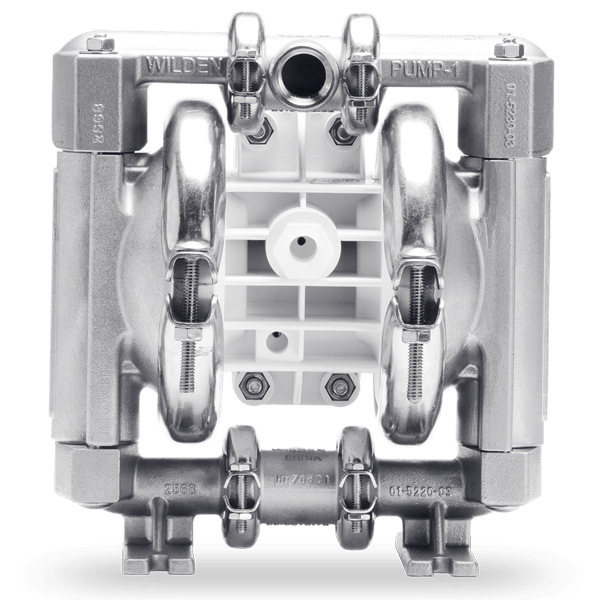

Stainless Steel | 9.20 kg (20.00 lb) |
Non-Wetted Housings
Description | Material |
---|---|
Center Section | Polypropylene, Conductive Polypropylene, Acetal, Conductive Acetal |
Air Valve | Polypropylene, Conductive Polypropylene, Acetal, Conductive Acetal |
Elastomer Options
Material | Temperature Limits |
---|---|
Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
FKM | -40.00°C to 177.00°C (-41.00°F to 350.00°F) |
PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
Polyurethane | -12.00°C to 66.00°C (10.00°F to 150.00°F) |
Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
