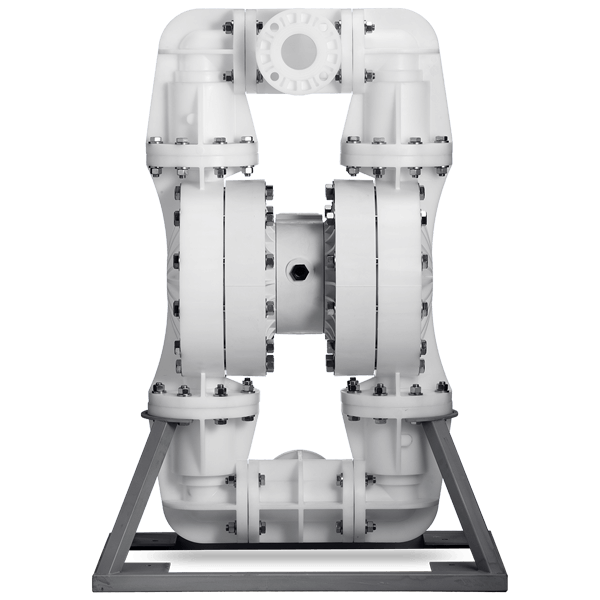

76 mm (3") Pro-Flo® Series Bolted Plastic Pump

P1500 Features

The Wilden® bolted plastic air-operated double-diaphragm (AODD) pump combines maximum performance and efficiency with superior containment. Wilden's bolted-construction pumps offer improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.

  • DIN or ANSI flanged inlet/discharge liquid connections
  • Decades of proven performance
  • Bolted construction for superior containment
  • Large-solids passage
  • High suction lift
  • Ease of operation and maintenance
  • Increased on/off reliability
  • Longest Mean Time Between Repair (MTBR)

Enquire About this product

Model Number: P1500
Product Name: 76 mm (3") Pro-Flo® Series Bolted Plastic Pump
Please provide any extra details you wish to enquire about such as installation, maintenance services etc here or when the best time to contact you is if you wish to be contacted by phone.
Wilden Pro-Flo® Series Bolted Plastic Pump 76 mm (3 inch) - P1500

Dimensions

Dim-P1500-76mm3in-BPP
Note: Dimensions vary by material and connection. For additional information, please refer to the P1500 Plastic Manual.

Flow Curve – Full-Stroke PFTE-Fitted

Flo-P1500-76mm3in-BPP
Note: Additional performance curves can be found in the P1500 Plastic Manual.

Specifications

Air Inlet
3/4" FNPT
Liquid Inlet
76 mm (3")
Liquid Discharge
76 mm (3")
Connection Type
DIN/ANSI (Flanged)
Max Pressure
Polypropylene - 6.90 bar (100.00 psi)
PVDF - 8.60 bar (125.00 psi)
Max Diameter Solids
12.70 mm (1/2")
Max Suction Lift Capability
Full-Stroke PTFE: 5.50m (18.20') Dry, 8.60m (28.40') Wet
Reduced-Stroke PTFE: 3.63m (12.00') Dry, 8.60m (28.40') Wet
Max Flow Rate
Full-Stroke PTFE: 878.00 lpm (232.00 gpm)
Reduced-Stroke PTFE: 784.00 lpm (207.00 gpm)
Displacement Per Stroke
Full-Stroke PTFE: 5.8 L (1.52 gal)
Reduced-Stroke PTFE: 3.75 L (0.99 gal)

Wetted Housings

Material Ship Wt
Polypropylene 138.00 kg (305.00 lb)
PVDF 161.00 kg (356.00 lb)

Non-Wetted Housings

Description Material
Center Block Polypropylene
Air Valve Polypropylene
Air Chamber Polypropylene

Elastomer Options

Material Temperature Limits
EPDM -51.00°C to 138.00°C (-60.00°F to 280.00°F)
Neoprene -18.00°C to 93.00°C (0.00°F to 200.00°F)
PTFE* 4.00°C to 104.00°C (40.00°F to 220.00°F)
Saniflex™ -29.00°C to 104.00°C (-20.00°F to 220.00°F)
Wil-Flex™ -40.00°C to 107.00°C (-40.00°F to 225.00°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
