P420/P430 Features
The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.

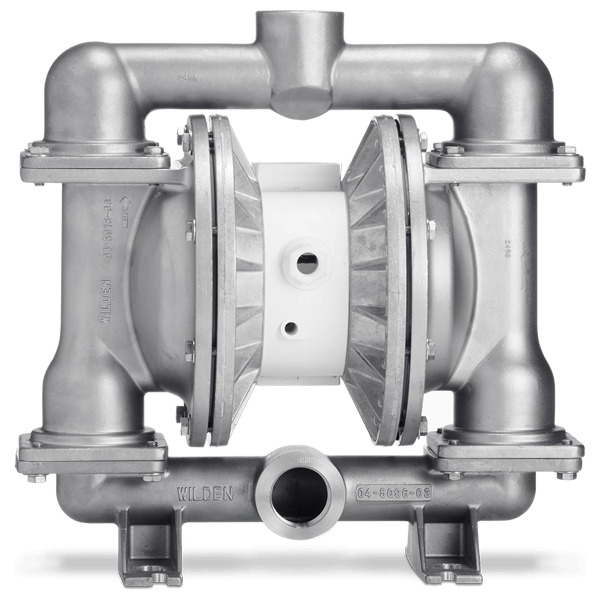

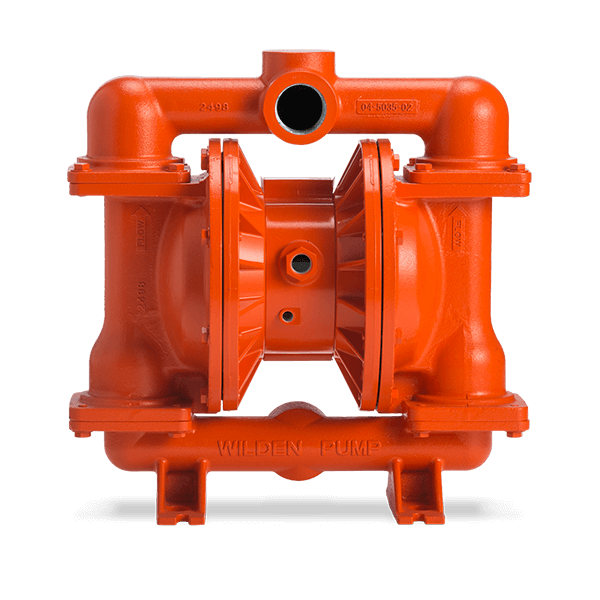

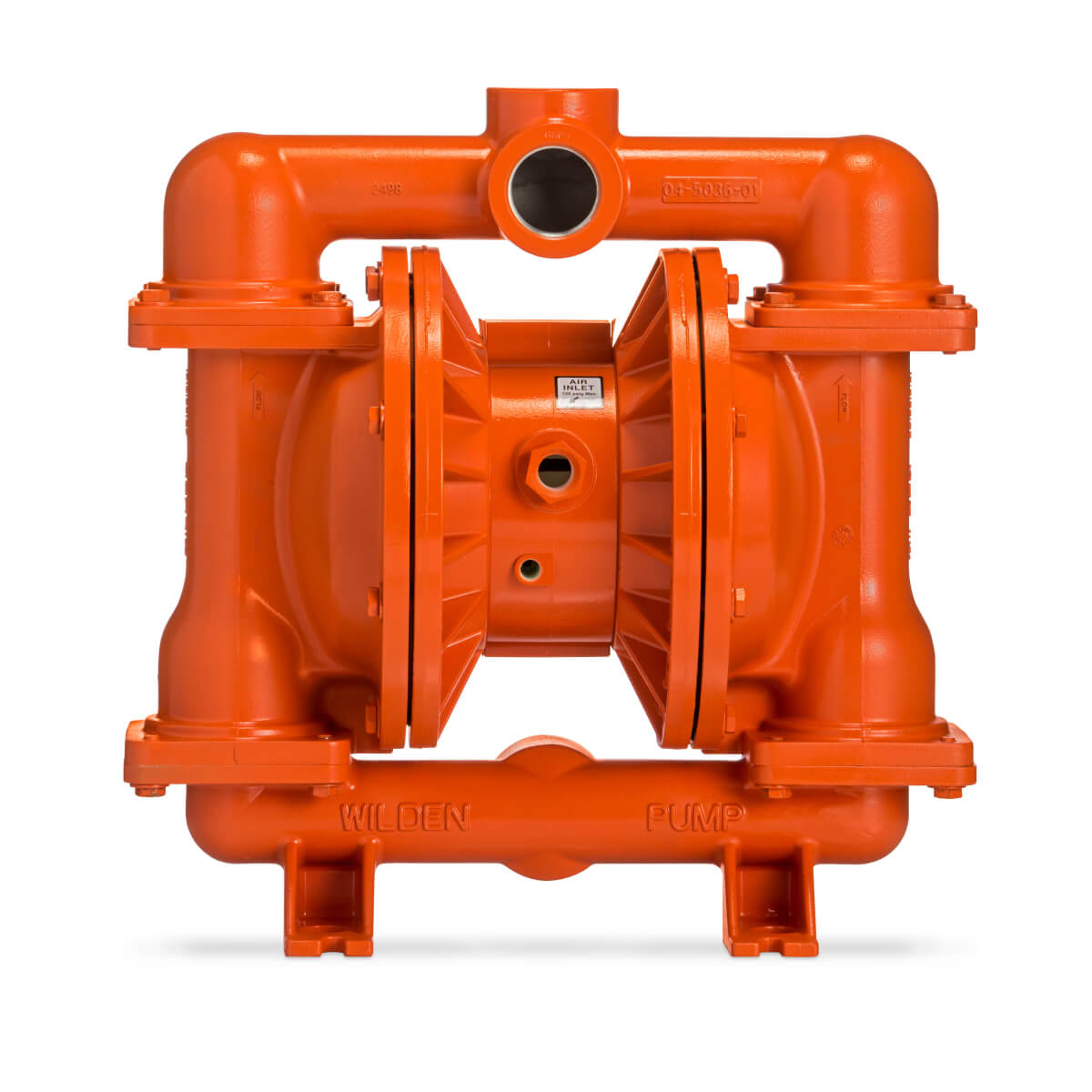

- NPT or BSPT threaded inlet/discharge liquid connections (P420)

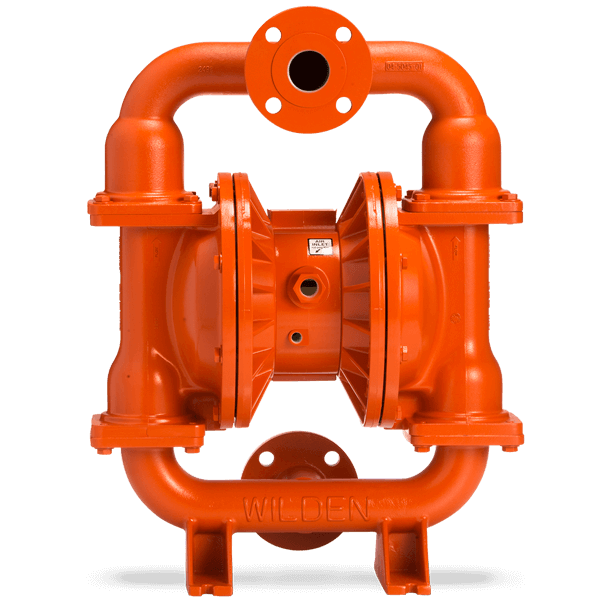

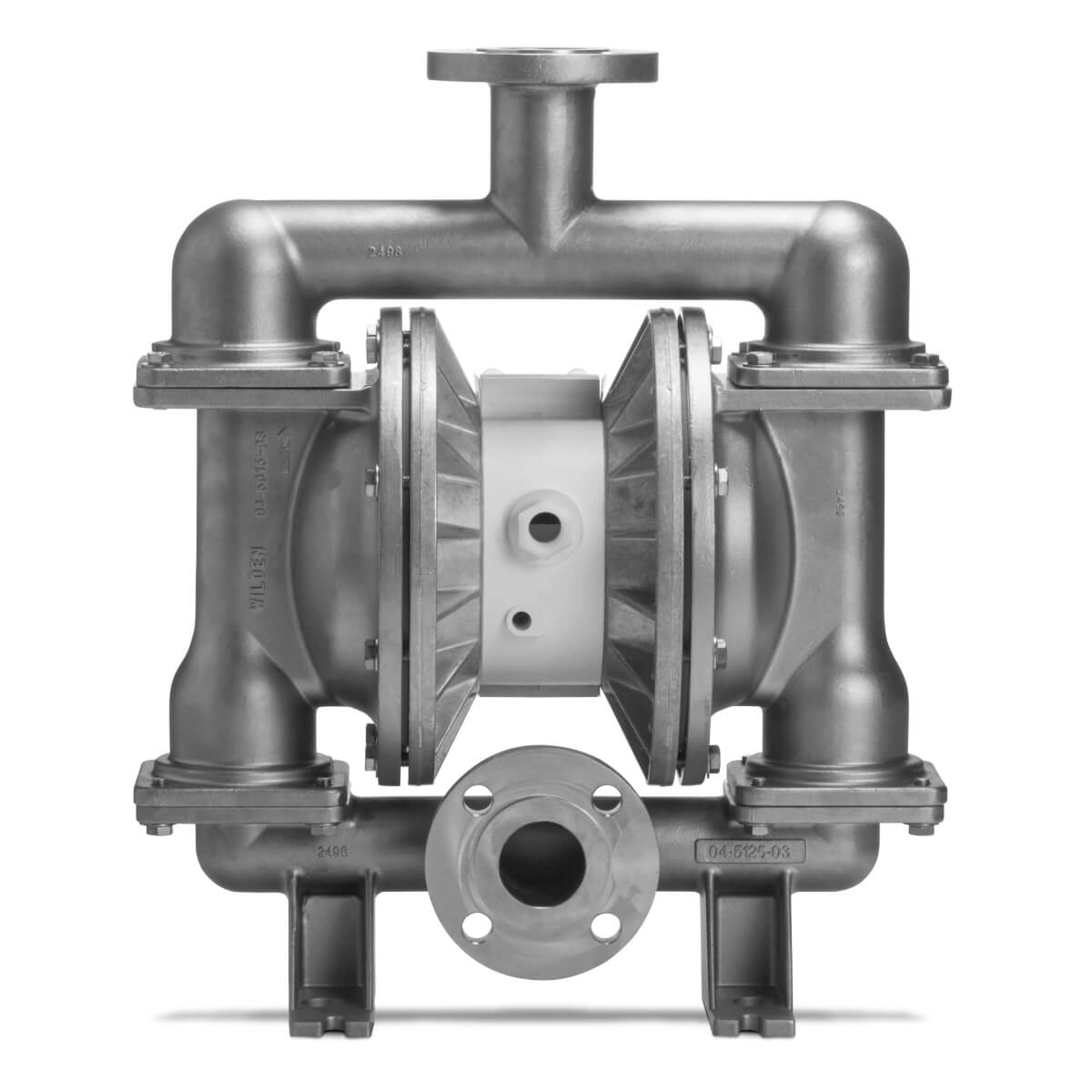

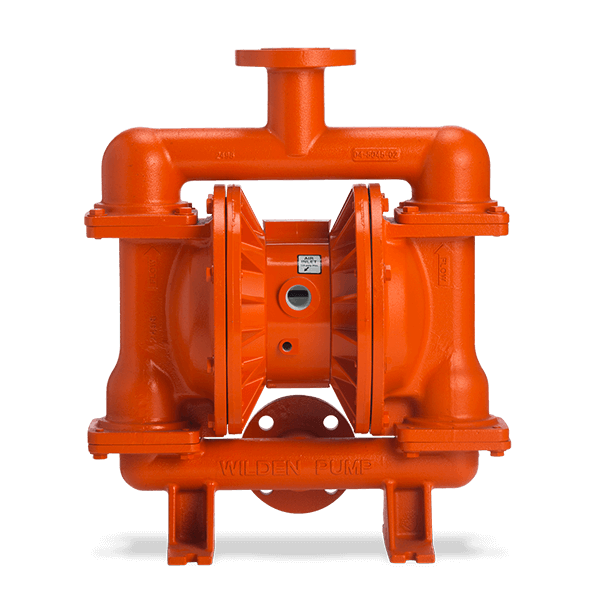

- DIN or ANSI flanged inlet/discharge liquid connections (P430) that don't require welding or nipple attachment
- Largest chemical compatibilities
- Portable and submersible
- Large-solids passage
- High suction lift
- Ease of operation and maintenance
- Flexible internal adjustment on manifolds
- Increased on/off reliability
- Longest Mean Time Between Repair (MTBR)
Dimensions
Note: Dimensions vary by material and connection. For additional information, please refer to the P420/P430 Metal Manual.
Flow Curve – EZ-Install TPE-Fitted
Note: Additional performance curves can be found in the P420/P430 Metal Manual.
Specifications
Air Inlet
1/2" FNPT
Liquid Inlet
38 mm (1-1/2")
Liquid Discharge
38 mm (1-1/2")
Connection Type
NPT/BSPT (Threaded)DIN/ANSI (Flanged)
Max Pressure
8.60 bar
(125.00 psi)
Max Diameter Solids
6.40 mm
(1/4")
Max Suction Lift Capability
Rubber:
5.50m
(18.20') Dry,
9.00m
(29.50') Wet
EZ-Install TPE:
4.80m
(15.90') Dry,
9.00m
(29.50') Wet
Full-Stroke PTFE:
5.20m
(17.00') Dry,
9.00m
(29.50') Wet
Reduced-Stroke PTFE:
2.80m
(15.90') Dry,
9.00m
(29.50') Wet
Max Flow Rate
Rubber:
492.00 lpm
(130.00 gpm)
EZ-Install TPE:
492.00 lpm
(130.00 gpm)
Full-Stroke PTFE:
473.00 lpm
(125.00 gpm)
Reduced-Stroke PTFE:
341.00 lpm
(90.00 gpm)
Displacement Per Stroke
Rubber:
1.2 L
(0.32 gal)
TPE:
1.2 L
(0.32 gal)
Full-Stroke PTFE:
1.1 L
(0.28 gal)
Reduced-Stroke PTFE:
0.53 L
(0.14 gal)
Wetted Housings
| Material | Ship Wt |
|---|---|
| Aluminum (P420) | 26.00 kg (57.00 lb) |
| Aluminum (P430) | 28.00 kg (62.00 lb) |
| Stainless Steel (P420) | 50.00 kg (111.00 lb) |
| Stainless Steel (P430) | 53.00 kg (116.00 lb) |
| Ductile Iron (P420) | 39.00 kg (86.00 lb) |
| Ductile Iron (P430) | 42.00 kg (92.00 lb) |
Non-Wetted Housings
| Description | Material |
|---|---|
| Center Section | Polypropylene |
| Air Valve | Polypropylene |
| Air Chamber | Aluminum |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
| EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
| FKM | -40.00°C to 177.00°C (-41.00°F to 350.00°F) |
| Geolast® | -40.00°C to 82.00°C (-40.00°F to 180.00°F) |
| Neoprene | -18.00°C to 93.00°C (0.00°F to 200.00°F) |
| PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
| Polyurethane | -12.00°C to 66.00°C (10.00°F to 150.00°F) |
| Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
| Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
