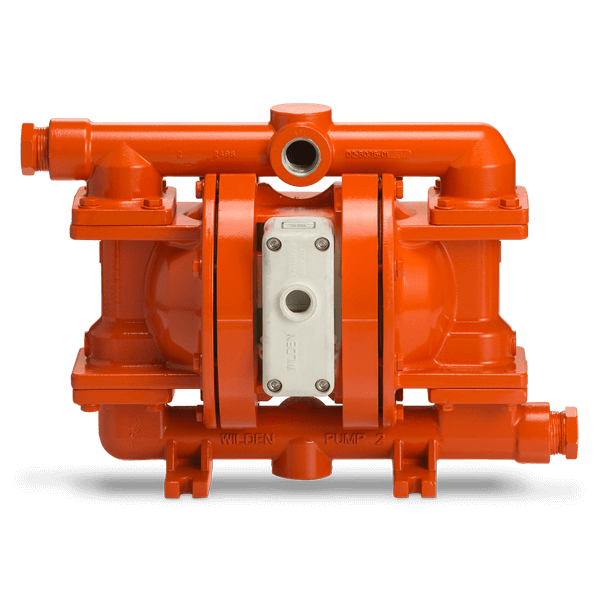

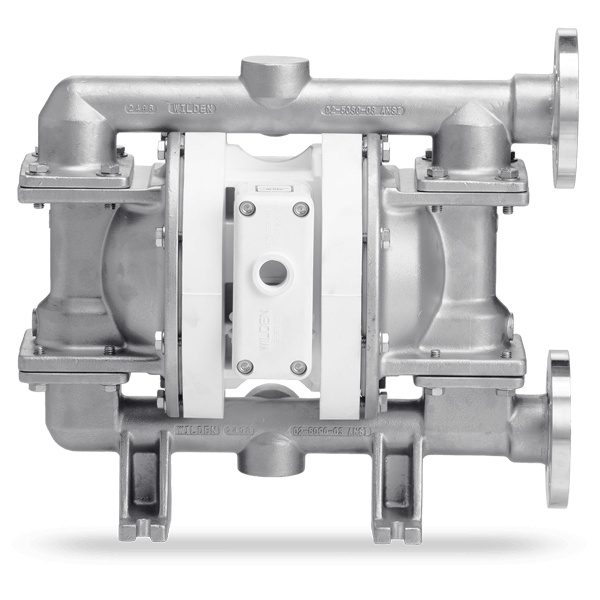

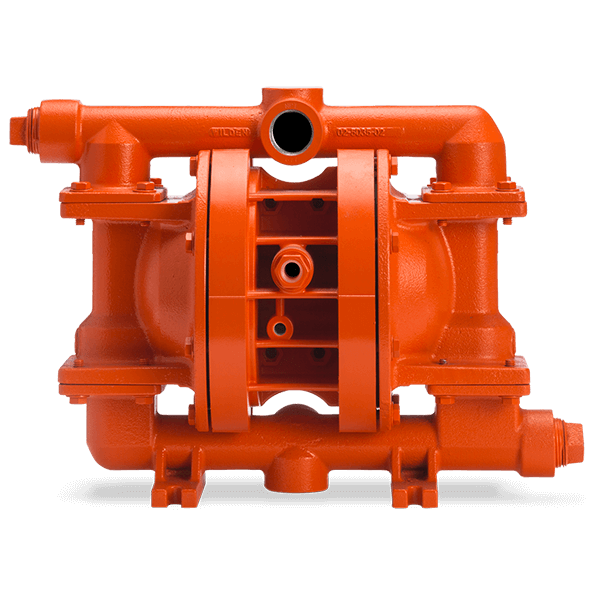

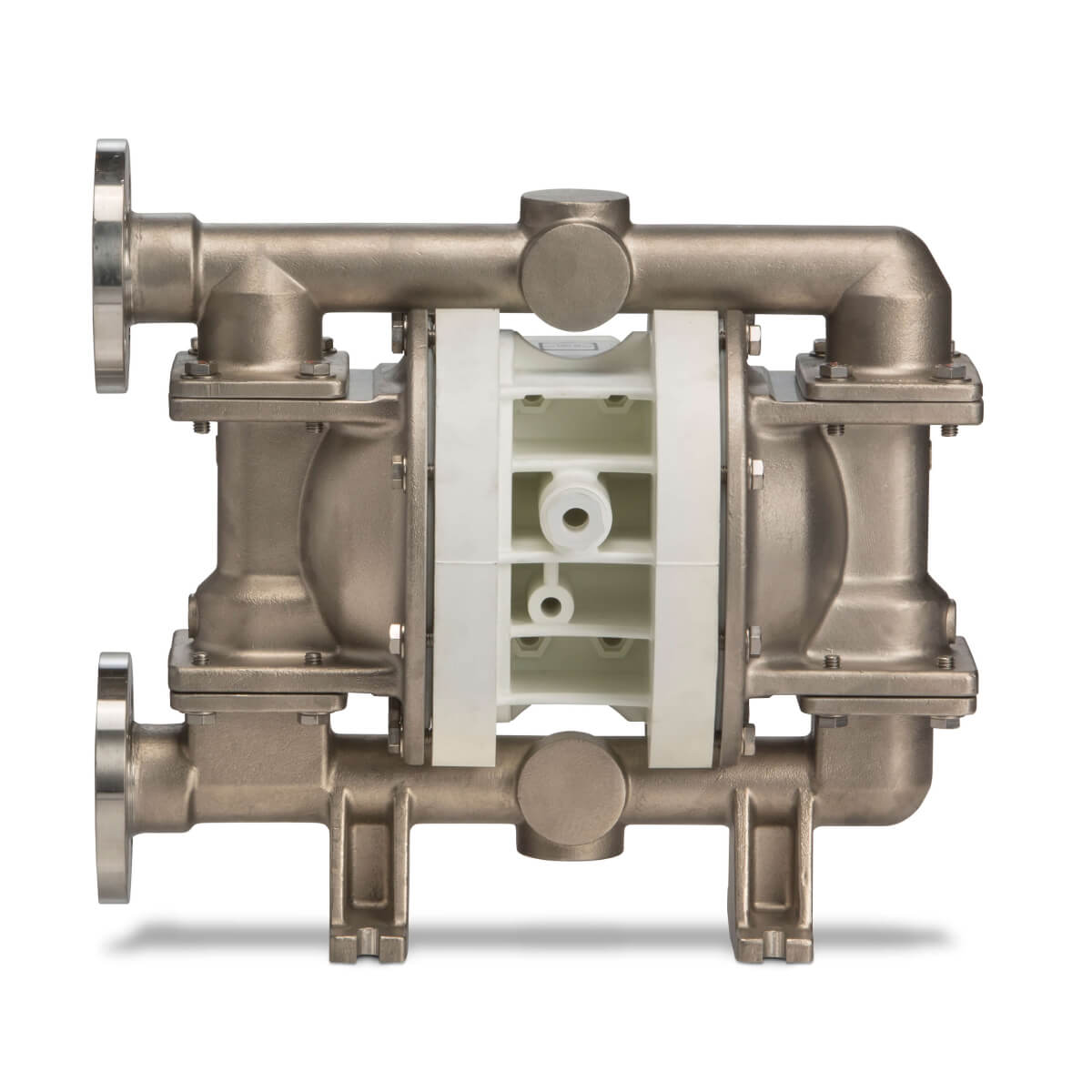

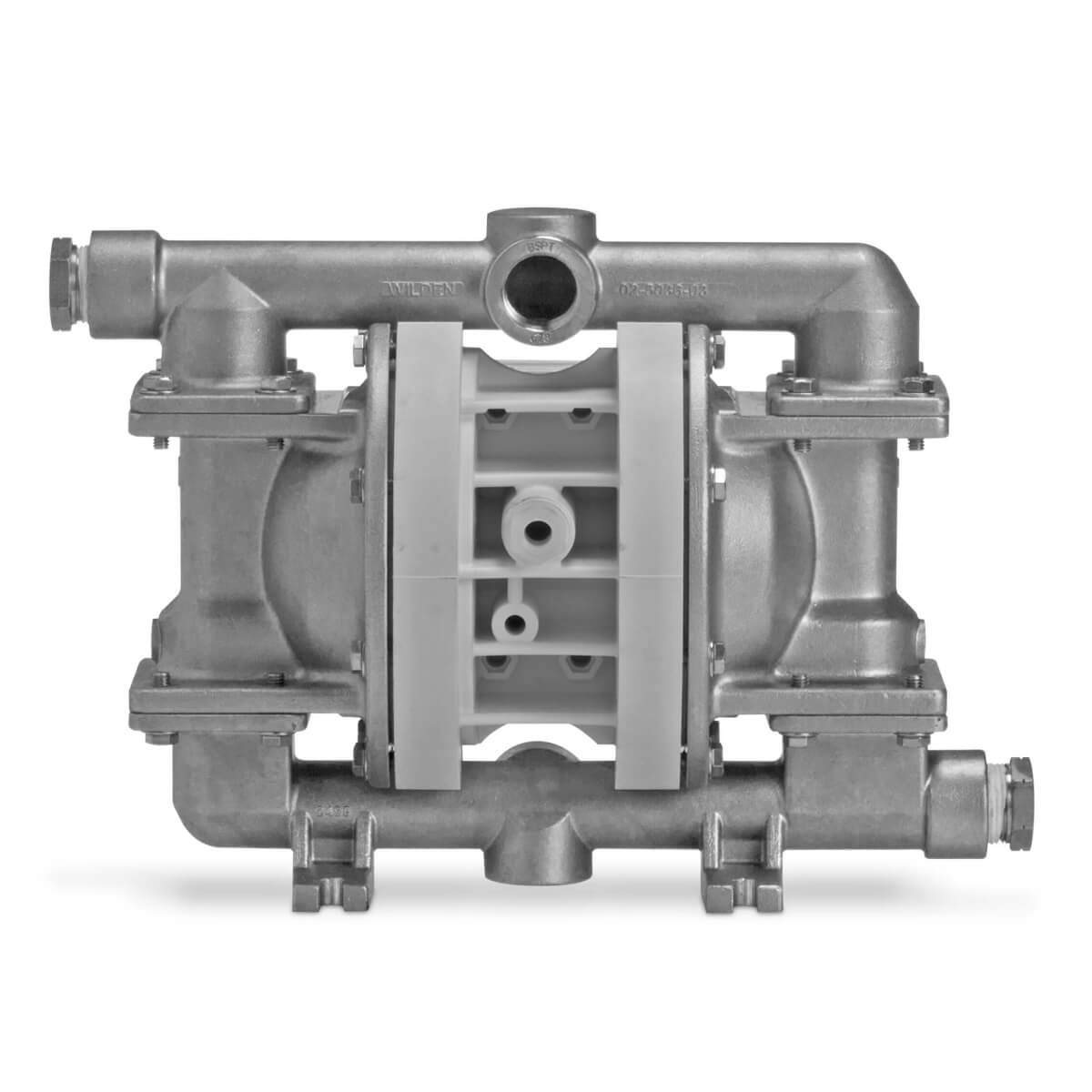

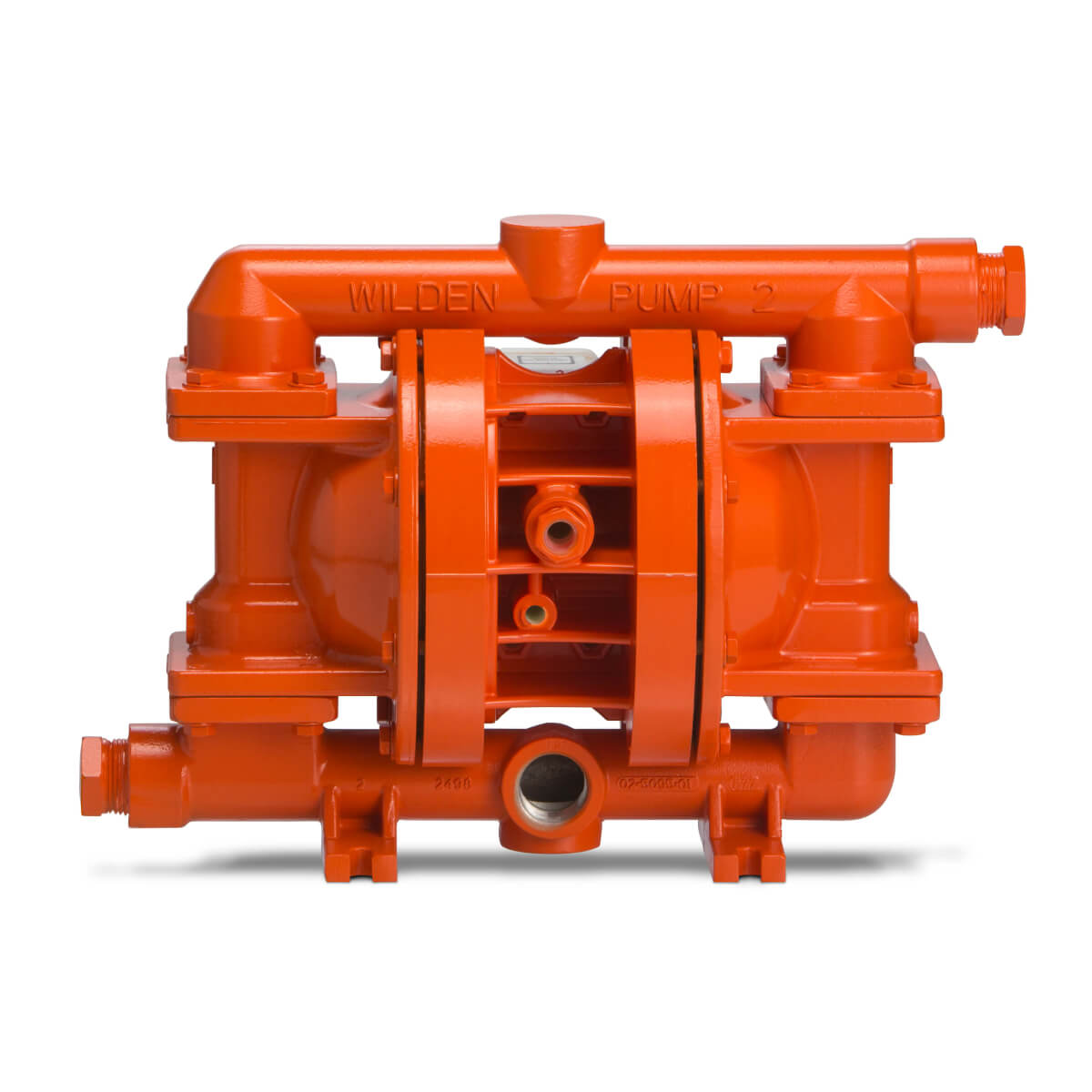

P220/P230 Features
The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.
- NPT or BSPT threaded inlet/discharge liquid connections (P220)
- DIN or ANSI flanged inlet/discharge liquid connections (P230) that don't require welding or nipple attachment
- Widest array of chemical compatibility
- Portable and submersible
- Large-solids passage
- High suction lift
- Ease of operation and maintenance
- Flexible internal adjustment on manifolds
- Increased on/off reliability
- Longest Mean Time Between Repair (MTBR)
Dimensions
Note: Dimensions vary by material and connection. For additional information, please refer to the P220/P230 Metal Manual.
Flow Curve – TPE-Fitted
Note: Additional performance curves can be found in the P220/P230 Metal Manual.
Specifications
Air Inlet
1/4" FNPT
Liquid Inlet
25 mm (1")
Liquid Discharge
25 mm (1")
Connection Type
NPT/BSPT (Threaded)DIN/ANSI (Flanged)
Max Pressure
8.60 bar
(124.99 psi)
Max Diameter Solids
6.40 mm
(1/4")
Max Suction Lift Capability
Rubber:
5.40m
(17.60') Dry,
9.30m
(30.60') Wet
TPE:
4.10m
(13.60') Dry,
9.30m
(30.60') Wet
Full-Stroke PTFE:
5.50m
(18.20') Dry,
9.00m
(29.50') Wet
Reduced-Stroke PTFE:
3.50m
(11.40') Dry,
9.30m
(30.59') Wet
Max Flow Rate
Rubber:
212.00 lpm
(56.00 gpm)
TPE:
212.00 lpm
(56.00 gpm)
Full-Stroke PTFE:
185.00 lpm
(49.00 gpm)
Reduced-Stroke PTFE:
168.00 lpm
(44.00 gpm)
Displacement Per Stroke
Rubber:
0.3 L
(0.08 gal)
TPE:
0.34 L
(0.09 gal)
Full-Stroke PTFE:
0.3 L
(0.08 gal)
Reduced-Stroke PTFE:
0.23 L
(0.06 gal)
Wetted Housings
| Material | Ship Wt |
|---|---|
| Aluminum | 11.00 kg (24.00 lb) |
| Stainless Steel | 23.00 kg (51.00 lb) |
| Ductile Iron | 21.00 kg (47.00 lb) |
Non-Wetted Housings
| Description | Material |
|---|---|
| Center Section | Polypropylene, Acetal, Conductive Polypropylene |
| Air Valve | Polypropylene, Acetal, Conductive Polypropylene |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| Buna-N | -12.00°C to 82.00°C (10.00°F to 180.00°F) |
| EPDM | -51.00°C to 138.00°C (-60.00°F to 280.00°F) |
| FKM | -40.00°C to 177.00°C (-41.00°F to 350.00°F) |
| Neoprene | -18.00°C to 93.00°C (0.00°F to 200.00°F) |
| PTFE* | 4.00°C to 104.00°C (40.00°F to 220.00°F) |
| Polyurethane | -12.00°C to 66.00°C (10.00°F to 150.00°F) |
| Saniflex™ | -29.00°C to 104.00°C (-20.00°F to 220.00°F) |
| Wil-Flex™ | -40.00°C to 107.00°C (-40.00°F to 225.00°F) |
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
