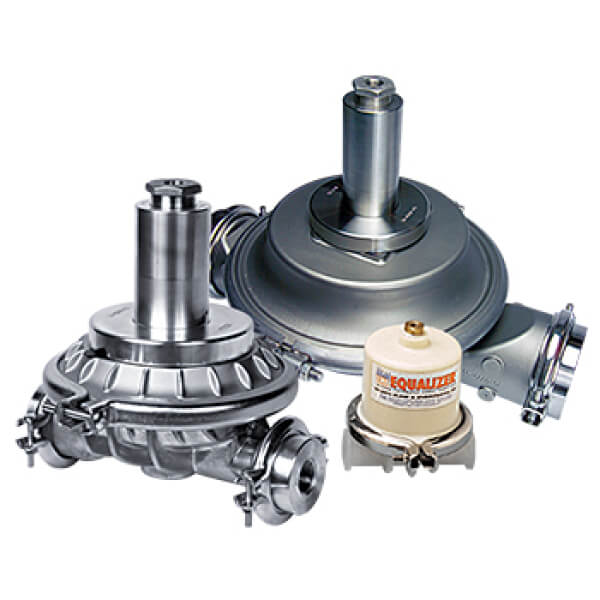

Equalizer® Surge Dampeners - SD Series (SD)

Wilden® Equalizer® Surge Dampeners - SD Series (SD) for air-operated double-diaphragm (AODD) pumps effectively suppress pulsation associated with reciprocating pumps to prolong equipment life and maximizing Mean Time Between Repair (MTBR). The SD Series surge dampener self-adjusts to fluctuating inlet pressures making the installation flexible, versatile, and user friendly for a variety of processes. These dampeners are engineered for demanding solids-handling applications commonly found where reciprocating pumps excel.

  • Effectively dampens up to 70% of discharge pressure fluctuation
  • Protects against water hammer and associated damage
  • Utilizes the same wear components as Wilden diaphragm pumps
  • Self-adjusting to varying system pressures
  • Large-solids capacity
  • Can be configured to meet ATEX II 2 GD X requirements
Model Number: [webform_submission:node:field_model_number]
Product Name: Equalizer® Surge Dampeners - SD Series (SD)
Please provide any extra details you wish to enquire about such as installation, maintenance services etc here or when the best time to contact you is if you wish to be contacted by phone.

Specifications

PUMP MODEL SIZES
Threaded (NPT and BSPT) 13 mm (1/2”) 25 mm (1”) 51 mm (2”) 76 mm (3”)
Flanged (ANSI and DIN) - - 51 mm (2”) -
MATERIALS
Wetted Materials Aluminum, Stainless Steel, Ductile Iron, Polypropylene, PVDF
Non-Wetted Materials Aluminum, Nickel-Plated Aluminum, Stainless Steel, Polypropylene, Glass-filled Polypropylene
