Equalizer® Surge Dampeners – Integrated SD Series (ISD) Plastic

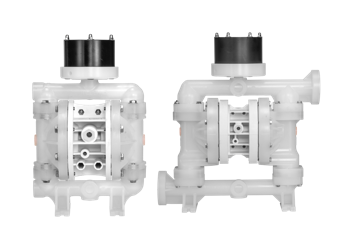

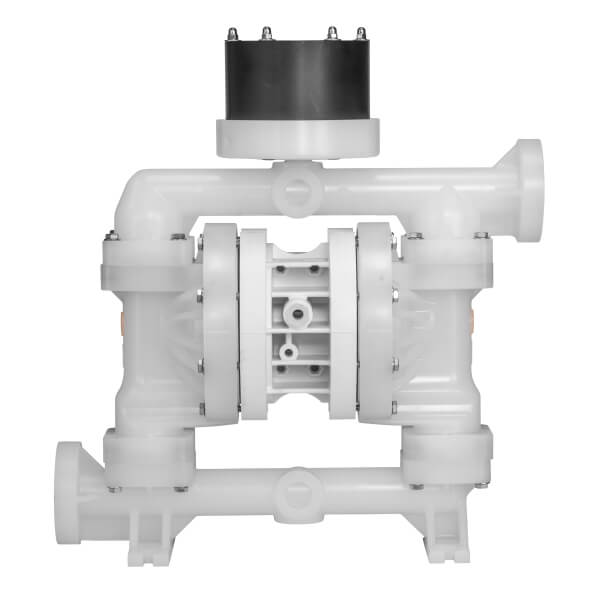

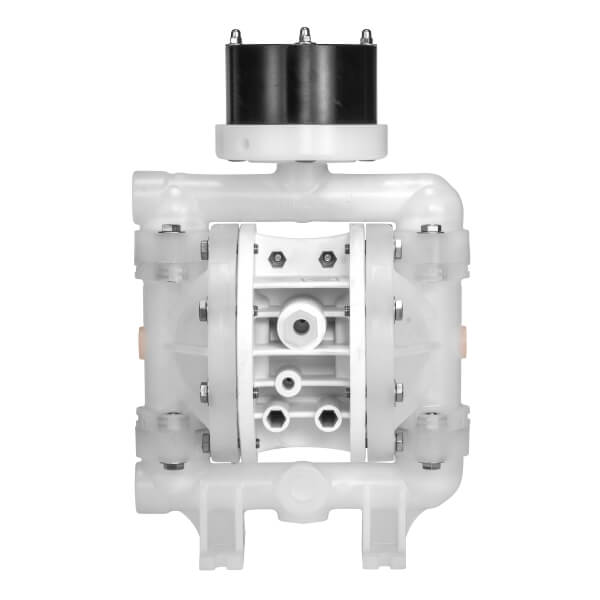

Wilden® Equalizer® Surge Dampener - Integrated SD Series (ISD) Plastic feature a design that integrates the dampener directly into the manifold of Wilden’s 13 mm (1/2") and 25 mm (1") P100 and P200 Pro-Flo Series bolted plastic pumps. The new ISD Series dampeners have been engineered to help extend the life and reduce noise while having the capability to easily screw onto the top of your pump without any additional hardware or piping changes.

  • Designed to integrate directly with pump
  • No additional connecting elements* or piping changes needed to install dampener
  • Extends pump life and reduces noise
  • Offered in sizes 1/2" and 1"
  • Material of construction: Polyethylene

 * Note, to retrofit current pumps in field, top manifolds will need to be tapped.

Model Number: [webform_submission:node:field_model_number]
Product Name: Equalizer® Surge Dampeners – Integrated SD Series (ISD) Plastic
Please provide any extra details you wish to enquire about such as installation, maintenance services etc here or when the best time to contact you is if you wish to be contacted by phone.

Specifications

PRODUCT DESCRIPTION DIAPHRAGM MATERIAL MAX PRESSURE SHIP WEIGHT
1/2" Bolted Plastic Dampener EPDM 6.9 bar (100 psi) 0.9 kg (2 lb)
1/2" Bolted Plastic Dampener PTFE 6.9 bar (100 psi) 0.9 kg (2 lb)
1" Bolted Plastic Dampener EPDM 6.9 bar (100 psi) 2.6 kg (5.8 lb)
1" Bolted Plastic Dampener PTFE 6.9 bar (100 psi) 2.6 kg (5.8 lb)
MATERIALS
Wetted Materials Polyethylene
Non-Wetted Materials Nylon
